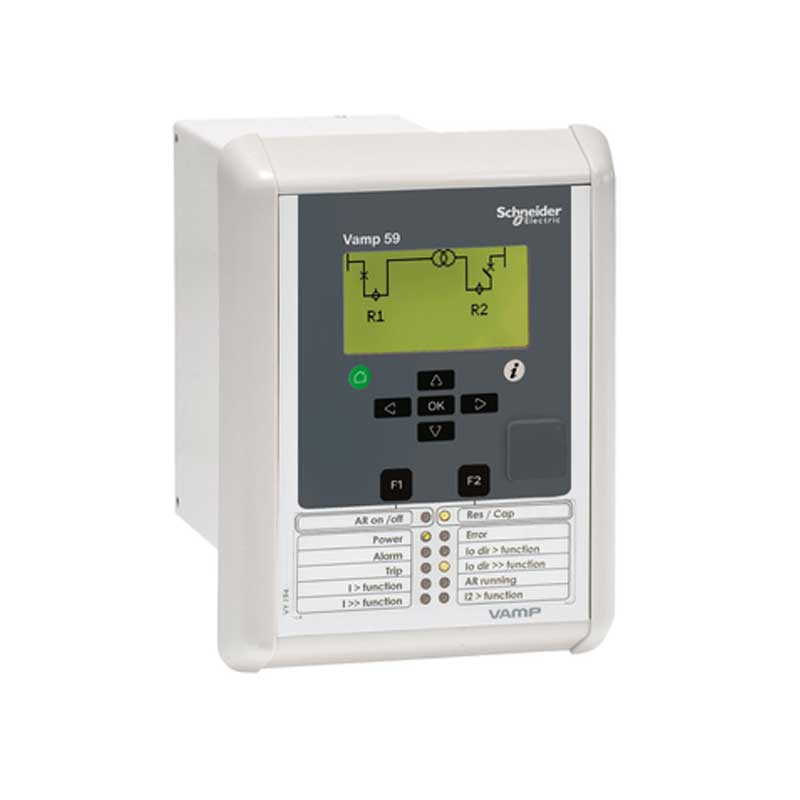

Schneider VAMP 59 PowerLogic Line Differential Protection Relay

Schneider VAMP 59 PowerLogic Line Differential Protection Relay is designed for high-speed protection of overhead transmission lines and underground power cables in low- and medium-voltage networks. It uses phase-segregated current differential technology to detect internal faults quickly while maintaining stability during external faults and heavy load conditions.

The relay combines line differential protection with essential backup protection functions in a single unit, reducing the need for additional protection devices. Differential current measurements are exchanged through fibre-optic communication, allowing secure and reliable protection of transmission lines over long distances.

VAMP 59 also provides metering, control, event recording, and live system measurements. Its LCD display, programmable LEDs, single-line diagram mimic, and VAMPSET configuration software make operation and commissioning simple for engineers and maintenance personnel.

Specifications

• Product Name: Schneider VAMP 59
• Product Family: PowerLogic™
• Relay Type: Line Differential Protection Relay
• Application: Transmission Lines and Power Cables
• Protection Principle: Phase-Segregated Current (Vector) Differential Protection
• Backup Protection: Integrated backup protection functions
• Communication Medium: 1550 nm Single-Mode Fibre-Optic Cable
• Maximum Communication Distance: Up to 120 km
• Display: LCD Display with Single-Line Diagram Mimic
• LED Indication: 12 LEDs (2 fixed and 10 programmable)
• Function Keys: Two programmable push buttons
• Measurements: Live electrical measurements and event recording
• Configuration Software: VAMPSET
• Language Support: Unicode
• Enclosure: Standard and Slimline (S) case versions

Features

• High-speed line differential protection
• Phase-segregated current differential technology
• Combined phase and magnitude differential measurement
• Integrated backup protection functions
• Fibre-optic communication for differential current exchange
• Communication distance up to 120 km using single-mode fibre
• LCD display with single-line diagram mimic
• Live measurements, alarms and event recording
• Programmable LEDs and function keys
• Unicode language support
• Easy relay configuration using VAMPSET software
• Available in standard and slimline enclosure options
• Suitable for industrial and utility transmission networks

Applications

• Overhead transmission lines
• Underground power cables
• Utility transmission networks
• Industrial power distribution systems
• Medium-voltage substations
• Renewable energy grid connections
• Electrical infrastructure projects
• Mining and process industries
• Oil and gas facilities
• Power generation plants
• Retrofit and modernization of protection systems

Product Status: Discontinued by Schneider Electric. This product is available subject to stock. We also supply suitable replacement models and retrofit solutions.
