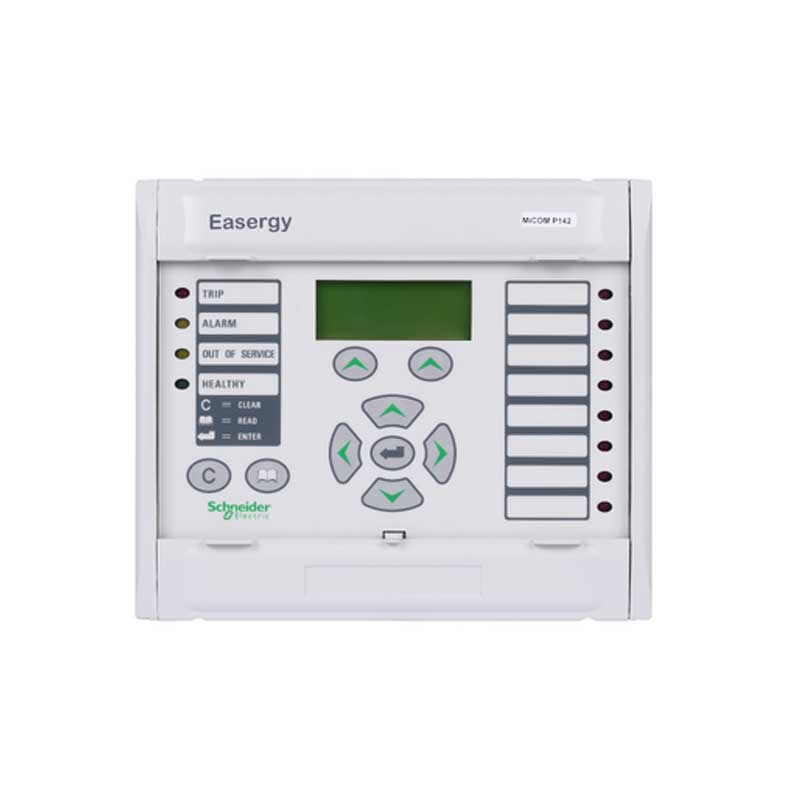

Schneider Electric Easergy MiCOM P546 Numerical Current Differential Protection Relay

Schneider Electric Easergy MiCOM P546 Numerical Current Differential Protection Relay is designed to provide high-speed protection for overhead transmission lines and underground cable systems. It combines current differential protection, integrated distance protection and advanced control functions in a single relay, making it suitable for high-voltage, extra-high-voltage and ultra-high-voltage transmission networks.

The MiCOM P546 continuously compares current values at both ends of the protected line to identify internal faults with excellent speed and selectivity. It also incorporates integrated five-zone subcycle distance protection, directional earth fault protection, overcurrent protection and auto-reclose functions, providing dependable main and backup protection for critical transmission assets.

The relay is specifically designed for complex transmission applications, including breaker-and-a-half and dual circuit breaker configurations. With IEC 61850 communication, programmable logic, advanced fault recording and flexible teleprotection options, the MiCOM P546 integrates easily into modern digital substations and SCADA systems while supporting reliable operation of demanding power networks.

Specifications

• Manufacturer: Schneider Electric
• Product Family: Easergy MiCOM
• Model: MiCOM P546
• Relay Type: Numerical Current Differential Protection Relay
• Protection Application: Transmission line and underground cable protection
• Suitable For: HV, EHV and UHV transmission networks
• Main Protection: High-speed current differential protection
• Distance Protection: Integrated five-zone subcycle distance protection
• Directional Earth Fault Protection: Supported
• Overcurrent Protection: Supported
• Auto-Reclose: Supported
• Check Synchronism: Supported
• Fault Locator: Integrated
• Breaker Configuration: Dual circuit breaker and breaker-and-a-half applications
• Communication Channel: End-to-end longitudinal communication
• Communication Media: Direct fibre optic and multiplexed digital links
• Event Recording: Supported
• Disturbance Recording: Supported
• Communication Interfaces: Serial and Ethernet
• Communication Protocols: IEC 61850 Edition 1 & 2, Modbus, DNP3 and IEC 60870-5-103
• Ethernet Redundancy: PRP, HSR and RSTP
• InterMiCOM64 Teleprotection: Supported
• Cybersecurity: IEC 62351 compliant
• Integration: SCADA and digital substation compatible

Features

• Numerical relay combining current differential and distance protection.
• High-speed protection for overhead transmission lines and underground cables.
• Integrated five-zone subcycle distance protection.
• Fast and selective detection of internal transmission line faults.
• Directional earth fault and overcurrent backup protection.
• Auto-reclose and check synchronism improve system reliability.
• Designed for breaker-and-a-half and dual circuit breaker substations.
• IEC 61850 communication supports digital substation automation.
• InterMiCOM64 teleprotection enables dependable end-to-end communication.
• Event and disturbance recording simplify maintenance and fault analysis.

Applications

• Transmission line protection
• Overhead transmission lines
• Underground cable protection
• High-voltage substations
• Extra-high-voltage transmission systems
• Ultra-high-voltage transmission networks
• Breaker-and-a-half substations
• Dual circuit breaker feeder applications
• Utility power networks
• Digital substations

Schneider Electric Easergy MiCOM P546 Numerical Current Differential Protection Relay combines high-speed differential protection, integrated distance protection and advanced communication capabilities, making it an excellent choice for complex transmission systems that require dependable protection, fast fault clearance and flexible substation integration.
