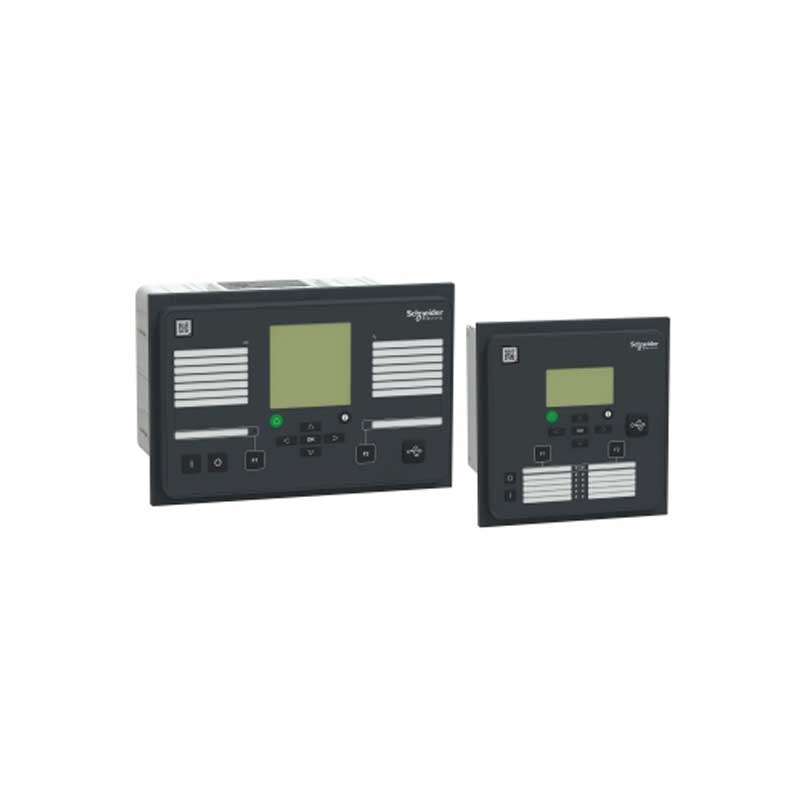

Schneider Electric PowerLogic™ P3G32 Generator Differential Protection Relay

The Schneider Electric PowerLogic™ P3G32 Generator Differential Protection Relay is designed to provide advanced protection for medium and large generators operating in industrial facilities, utility power stations and critical infrastructure. In addition to comprehensive generator protection functions, it incorporates differential protection to detect internal generator faults quickly and accurately, helping prevent extensive equipment damage and costly downtime.

The relay continuously monitors generator performance and responds to abnormal operating conditions such as stator winding faults, earth faults, overloads, reverse power, voltage fluctuations and frequency variations. Its differential protection function provides an additional layer of security by identifying internal faults that conventional protection methods may not detect as quickly.

As part of the PowerLogic™ P3 family, the P3G32 supports modern communication protocols and integrates easily with SCADA, DCS and substation automation systems. Its programmable logic, event recording and user-friendly interface simplify commissioning, maintenance and fault analysis, making it suitable for both new installations and retrofit projects.

Specifications

• Manufacturer: Schneider Electric
• Product Family: PowerLogic™ P3
• Model: P3G32
• Relay Type: Generator Differential Protection Relay
• Protection Application: Medium and Large Generators
• Protection Functions: Generator Differential Protection, Phase Overcurrent, Earth Fault, Thermal Overload, Reverse Power, Loss of Excitation, Overvoltage, Undervoltage, Overfrequency, Underfrequency, Negative Sequence Protection, Breaker Failure Protection and Voltage-Based Protection
• Differential Protection: Integrated
• Generator Monitoring: Supported
• Communication Protocols: IEC 61850 Edition 1 & Edition 2, Modbus, DNP3 and IEC 60870-5-103
• Communication Interfaces: Serial and Ethernet
• Circuit Breaker Control: Integrated
• Human Machine Interface: LCD Display with Programmable Function Keys and LED Indications
• Event Recording: Supported
• Fault Recording: Supported
• Disturbance Recording: Supported
• Programmable Logic: Supported
•  Time Synchronization: Supported
• Mounting: Flush Panel Mounting

Features

• Dedicated relay for generator differential protection.
• Detects internal generator winding faults with high accuracy.
• Reverse power protection helps prevent generator motoring.
• Thermal overload protection improves generator reliability.
• Continuous monitoring of voltage, current and frequency.
• Integrated earth fault and overcurrent protection.
• Breaker failure protection with programmable control logic.
• Event, fault and disturbance recording for detailed diagnostics.
• Supports IEC 61850, Modbus, DNP3 and IEC 60870-5-103 communication protocols.
• Easy integration with SCADA, DCS and digital substation automation systems.
• User-friendly interface with programmable LEDs and configurable settings.
• Suitable for both new installations and retrofit applications.

Applications

• Utility power generation plants
• Industrial captive power plants
• Diesel generator installations
• Gas turbine generators
• Hydroelectric generating stations
• Renewable energy power plants
• Oil and gas facilities
• Mining operations
• Chemical and petrochemical plants
• Critical infrastructure and standby power systems

The Schneider Electric PowerLogic™ P3G32 Generator Differential Protection Relay provides dependable protection for critical generator applications where equipment reliability is essential. Its combination of differential protection, comprehensive generator protection functions and intelligent monitoring helps improve system availability while reducing the risk of major generator failures.
