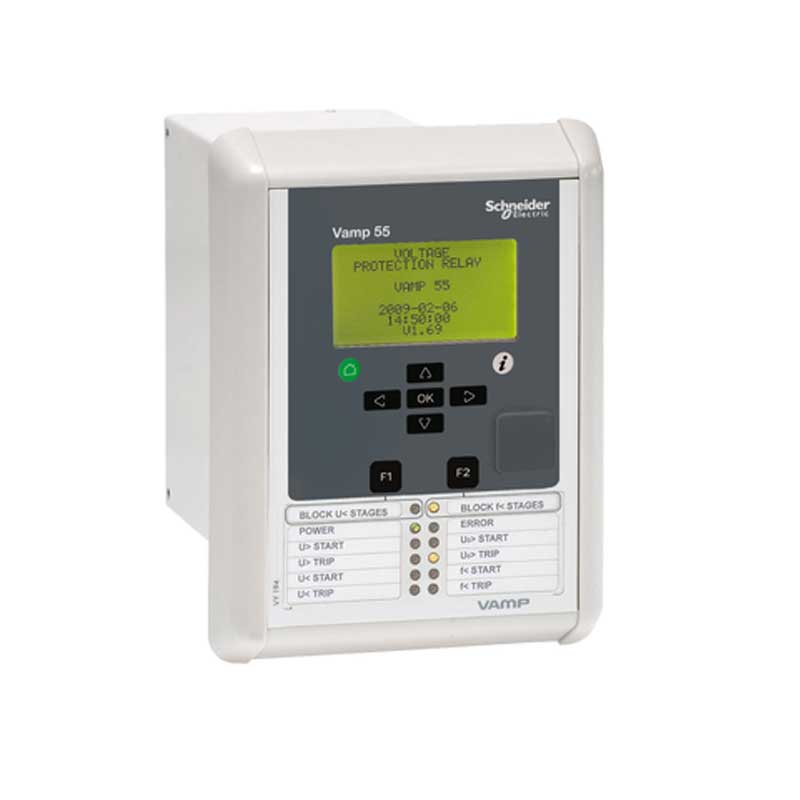

Schneider VAMP 55 PowerLogic Voltage Protection Relay

Schneider VAMP 55 PowerLogic Voltage Protection Relay is a multifunction numerical relay designed for voltage and frequency protection in low- and medium-voltage power systems. It continuously monitors system voltage and helps protect electrical equipment against abnormal voltage conditions that can affect the stability and reliability of the network.

The relay offers flexible voltage measurement with four configurable voltage inputs, allowing it to be adapted for different protection schemes, including phase voltage monitoring, zero-sequence voltage measurement, and synchronism check applications. Along with protection functions, it also provides control, metering, event recording, and live measurements in a single compact unit.

VAMP 55 features an intuitive user interface with a clear LCD display, programmable LEDs, front-panel function keys, and a built-in single-line diagram mimic. It is suitable for industrial plants, utility substations, renewable energy systems, and OEM switchgear where dependable voltage protection is required.

Specifications

• Product Name: Schneider VAMP 55
• Product Family: PowerLogic™
• Relay Type: Voltage Protection Relay
• Application: Low- and Medium-Voltage Distribution Systems
• Protection Functions: Voltage, Frequency and Synchronism Check Protection
• Voltage Inputs: Four configurable voltage inputs
• Voltage Configurations: Supports phase voltage, line-to-neutral, line-to-line and zero-sequence voltage measurement
• Display: LCD Display with Single-Line Diagram Mimic
• LED Indication: 12 LEDs (2 fixed and 10 programmable)
• Function Keys: Two programmable push buttons
• Measurements: Voltage, Frequency and Live System Values
• Configuration Software: VAMPSET
• Language Support: Unicode
• Enclosure: Standard and Slimline (S) case versions

Features

• Multifunction voltage protection relay
• Four configurable voltage inputs
• Supports multiple voltage measurement modes
• Suitable for synchronism check applications
• Built-in voltage and frequency monitoring
• Single-line diagram mimic with live measurements
• LCD display for alarms, events and operating status
• Programmable LEDs and front-panel function keys
• Integrated metering and event recording
• Unicode language support
• Easy configuration using VAMPSET software
• Available in standard and slimline enclosure options
• Reliable operation for industrial and utility power systems

Applications

• Low-voltage distribution systems
• Medium-voltage substations
• Utility distribution networks
• Industrial power distribution
• Voltage supervision
• Frequency monitoring
• Synchronism check applications
• Generator synchronization
• Renewable energy systems
• Power distribution switchgear
• OEM electrical panels
• Infrastructure and commercial power systems

Product Status: Discontinued by Schneider Electric. This product is available subject to stock. We also supply suitable replacement models and retrofit solutions.
