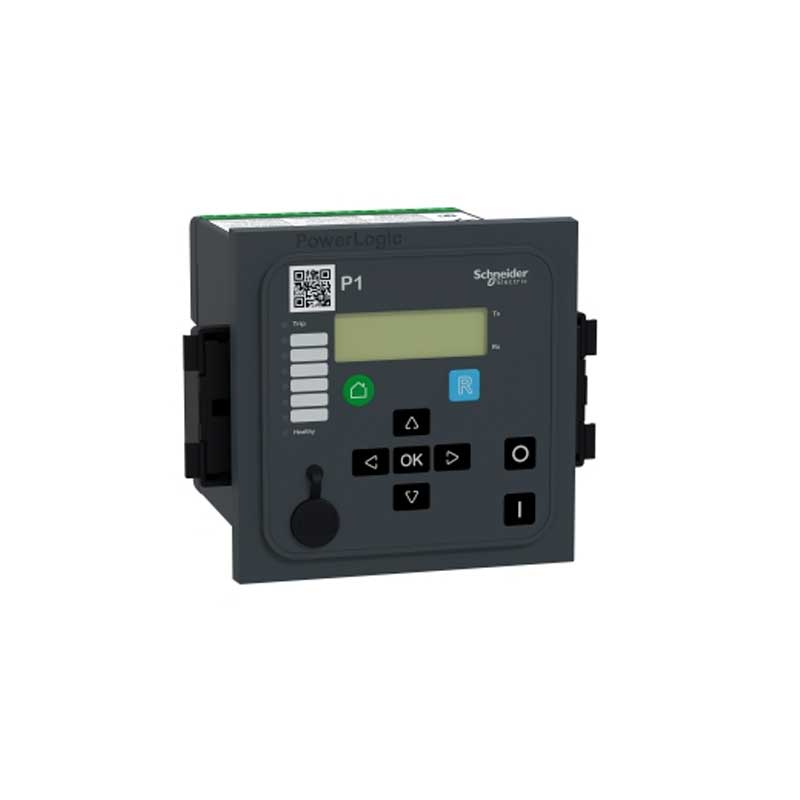

Schneider Electric PowerLogic™ P1V Voltage Protection Relay

The Schneider Electric PowerLogic™ P1V Voltage Protection Relay is designed to monitor and protect medium-voltage electrical systems against abnormal voltage and frequency conditions. It combines voltage protection, measurement, control and communication functions in a compact numerical relay, making it suitable for utility substations, industrial facilities and commercial power distribution systems.

The relay continuously measures system voltage and frequency to detect conditions such as overvoltage, undervoltage, overfrequency and underfrequency. When abnormal conditions occur, the P1V responds quickly to protect connected equipment and help maintain the stability of the electrical network. It also provides valuable system measurements and event records that assist operators during maintenance and fault analysis.

As part of the PowerLogic™ P1 family, the relay is available in multiple variants to meet different application requirements. It supports modern communication protocols for easy integration with SCADA and power management systems, while its intuitive interface simplifies configuration, commissioning and everyday operation.

Specifications

• Manufacturer: Schneider Electric
• Product Family: PowerLogic™ P1
• Relay Type: Voltage Protection Relay
• Available Models: P1V E, P1V C, P1V T, P1V E+, P1V C+, P1V T+
• Protection Application: Medium-Voltage Power Systems
• Protection Functions: Overvoltage, Undervoltage, Overfrequency, Underfrequency, Voltage Unbalance, Phase Sequence Monitoring, Breaker Failure Protection and Voltage-Based Protection Functions
• Measurement Functions: Voltage, Frequency, Power and Energy
• Communication Protocols: IEC 61850, Modbus and IEC 60870-5-103 (depending on model)
• Communication Interfaces: Serial and Ethernet (model dependent)
• Circuit Breaker Control: Supported
• Event Recording: Supported
• Fault Recording: Supported
• Human Machine Interface: LCD Display with Function Keys
• Programmable Logic: Supported
• Mounting: Flush Panel Mounting

Features

• Dedicated numerical relay for voltage protection applications.
• Protects electrical systems against overvoltage and undervoltage conditions.
• Continuous monitoring of system voltage and frequency.
• Detects abnormal operating conditions before they affect connected equipment.
• Integrated measurement and monitoring functions.
• Event and fault recording for easier diagnostics.
• Circuit breaker control with programmable logic.
• Supports IEC 61850, Modbus and other industry-standard communication protocols.
• Easy integration with SCADA and power management systems.
• Compact design suitable for new installations and retrofit projects.
• Available in multiple models to suit different voltage protection requirements.
• User-friendly interface for simple setup and operation.

Applications

• Utility substations
• Medium-voltage distribution systems
• Industrial power distribution
• Commercial buildings
• Renewable energy installations
• Water and wastewater treatment plants
• Mining operations
• Oil and gas facilities
• Manufacturing plants
• Infrastructure and critical power applications

The Schneider Electric PowerLogic™ P1V Voltage Protection Relay provides dependable voltage and frequency protection for medium-voltage electrical systems. Its combination of accurate monitoring, reliable protection and flexible communication makes it a practical choice for utilities and industries looking to improve the stability and reliability of their power distribution networks.
