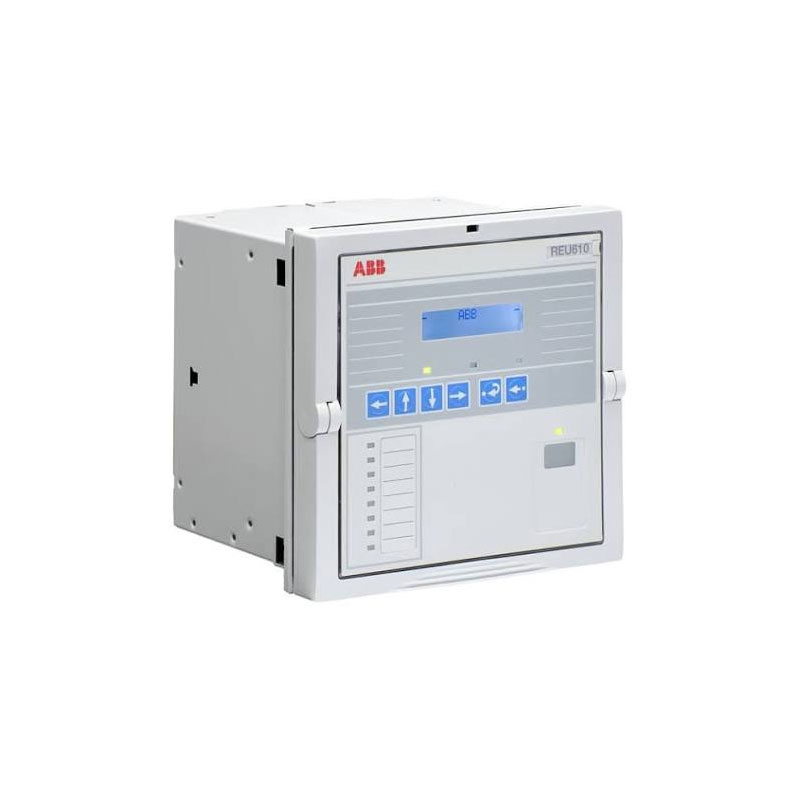

ABB REU610 Voltage Protection Relay
ABB REU610 Voltage Protection Relay Supplier and Exporter in India
ABB REU610 Legacy Spare, Replacement and REX615 Retrofit Enquiries
Replacement: ABB REU610 is a legacy voltage protection relay and has not been active since 2017. ABB includes REU610 in its official 610-series to REX615 retrofit program.
Description
ARP IMPEX supplies and exports ABB REU610 voltage protection relays for voltage supervision, existing switchgear, substations and industrial power systems.
REU610 belongs to ABB’s Relion 610 series and is used for system voltage protection, measurement and supervision. Typical duties include overvoltage and undervoltage protection of distribution substation busbars, feeder and transformer overvoltage protection, motor undervoltage protection and capacitor-bank supervision.
The relay provides two-stage overvoltage, two-stage undervoltage and two-stage residual overvoltage protection. Depending on the selected function, REU610 can also provide negative phase-sequence overvoltage or positive phase-sequence undervoltage protection.
In isolated-neutral systems, REU610 can use residual voltage measurement for earth-fault supervision. ABB also documents the relay for automatic busbar changeover initiation and for disconnecting small generating units from the public network during islanding conditions.
For ABB REU610 price and availability, send the complete order code, a clear relay nameplate photograph, quantity and destination country. The complete part number helps confirm the correct hardware and communication arrangement before quotation.
Technical Specifications
- Brand: ABB
- Product family: Relion
- Series: 610 Series
- Model: REU610
- Product type: Voltage protection relay
- Product status: Not active since 2017
- Main use: System voltage protection and supervision
- Overvoltage protection: Two-stage
- Undervoltage protection: Two-stage
- Residual overvoltage protection: Two-stage
- Negative phase-sequence overvoltage: Available
- Positive phase-sequence undervoltage: Available as an alternative function
- Measurement: Voltage and related system values
- Trip-circuit supervision: Available
- Disturbance recording: Available
- Rated frequency: 50 / 60 Hz
- Communication: IEC 61850, IEC 60870-5-103, Modbus, Profibus, DNP3, SPA and LON
- Construction: Removable plug-in relay unit
For an existing REU610, the full order code should be checked before sourcing a matching relay.
Features
- Two-stage overvoltage protection
- Two-stage undervoltage protection
- Two-stage residual overvoltage protection
- Voltage supervision of busbars and feeders
- Transformer overvoltage protection
- Motor undervoltage protection
- Capacitor-bank voltage supervision
- Earth-fault supervision through residual voltage
- Busbar changeover initiation
- Islanding-related voltage supervision
- Disturbance and event recording
- Trip-circuit supervision
- Local relay display
- Communication with substation automation systems
- Removable plug-in construction
Applications
ABB REU610 is used for:
- Distribution substation busbar protection
- Busbar overvoltage protection
- Busbar undervoltage protection
- Incoming and outgoing feeder voltage supervision
- Power transformer overvoltage protection
- Motor undervoltage protection
- Capacitor-bank protection and supervision
- Residual voltage supervision
- Isolated-neutral power systems
- Automatic busbar changeover
- Small generator islanding protection
- Utility distribution systems
- Industrial power distribution
- Marine and offshore electrical systems
ABB also lists REU610 as certified for marine and offshore use.
ABB Relion 610 Series
ABB’s 610 series includes three main relay types:
ABB REF610
A feeder protection relay used for incoming and outgoing feeder protection.
ABB REM610
A motor protection relay used for protection and supervision of asynchronous LV and HV motors.
ABB REU610
A voltage protection relay for overvoltage, undervoltage, residual voltage and general system voltage supervision.
The three products share the 610-series platform but perform different protection duties.
ABB REU610 Replacement and REX615 Retrofit
ABB includes REU610 in its official Relay Retrofit Program for REF610, REM610 and REU610 to REX615. The retrofit package includes a REX615 relay with the required retrofit connector kit and documentation.
ABB developed the program to replace supported 610-series relays without major new panel wiring and to reduce shutdown work during the changeover.
For an ABB REU610 replacement or REX615 retrofit enquiry, send:
- Complete REU610 order code
- Clear relay nameplate photograph
- Required quantity
- Destination country
- Required delivery date
Panel and configuration details can be checked if the requirement involves a retrofit rather than an identical legacy spare.
Why Buy ABB REU610 from ARP IMPEX?
ARP IMPEX supplies ABB protection relays for utilities, power plants, EPC contractors, industrial companies, panel builders and electrical traders.
We can assist with:
- ABB REU610 part-code checking
- Existing relay identification
- Legacy spare availability
- REU610 replacement enquiries
- REU610 to REX615 retrofit enquiries
- Single and multiple quantities
- ABB technical documentation
- Export packing
- International shipping
Request a Quote for ABB REU610
For ABB REU610 price and availability, send:
- Complete REU610 part/order number
- Clear nameplate photograph
- Quantity
- Destination country
- Required delivery date
If the full order code is not readable, send clear photographs of the relay front and nameplate.
Send your ABB REU610 part code, quantity and destination country to ARP IMPEX for price, availability and export quotation.
