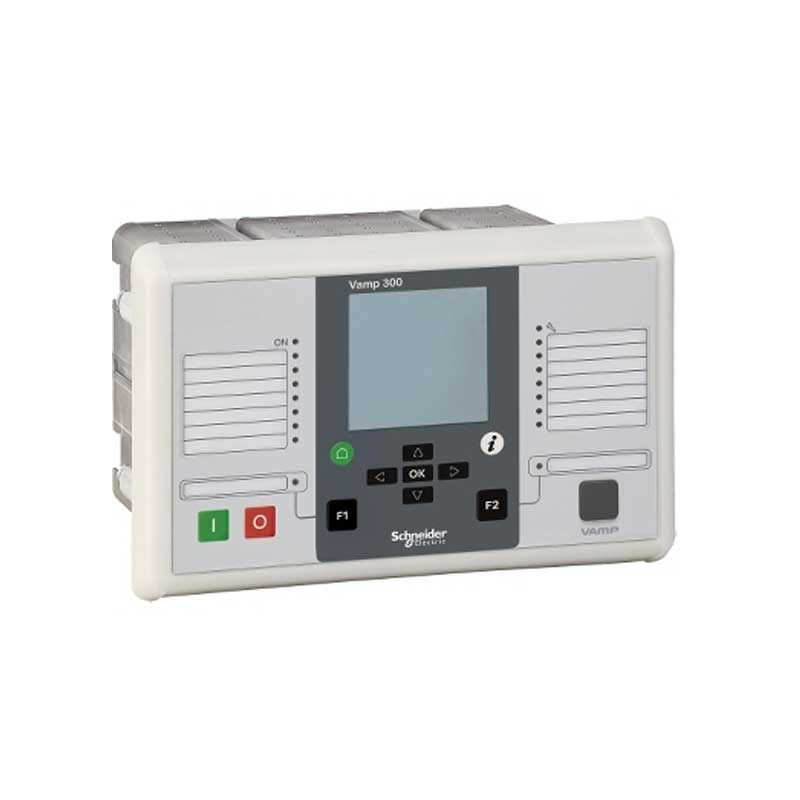

Schneider VAMP 300M PowerLogic Motor Protection and Control Relay

Schneider VAMP 300M PowerLogic Motor Protection and Control Relay Suppliers,Exporters in India

Schneider VAMP 300M PowerLogic Motor Protection and Control Relay is a multifunction numerical relay developed for the protection, control, and monitoring of medium- and large-sized motors used in industrial power systems. It combines motor protection, control, metering, and communication functions in a single relay, making it suitable for applications where motor reliability is critical.

The relay protects motors against electrical and thermal faults while providing detailed operating information through built-in measurements and event recording. Optional RTD interface modules allow direct temperature monitoring of motor windings and bearings, helping improve thermal protection and maintenance planning.

VAMP 300M also offers extensive bay control, programmable protection functions, and power quality monitoring. With native IEC 61850 support and multiple communication protocols, it integrates easily with SCADA and substation automation systems.

Specifications

• Product Name: Schneider VAMP 300M
  Product Family: PowerLogic™
• Product Series: VAMP 300 Series
• Relay Type: Motor Protection and Control Relay
• Application: Medium- and Large-Sized Motors
• Protection Functions: Overcurrent, Earth Fault, Thermal Overload, Phase Imbalance, Stall, Undercurrent, Overvoltage, Undervoltage and Frequency Protection
• Temperature Monitoring: Optional RTD Interface for Motor Bearings and Windings
• Measurements: Current, Voltage, Frequency, Active Power, Reactive Power, Energy, Harmonics and THD
• Power Quality Monitoring: Harmonics up to the 15th order, Voltage Sag and Swell Monitoring
• Bay Control: Local and Remote Control Functions
• Event Recording: Up to 2,000 event records
• Disturbance Recorder: Built-in
• Arc Protection: Optional
• Communication: IEC 61850, Modbus TCP, Modbus RTU, DNP3, IEC 60870-5-101, IEC 60870-5-103, Profibus DP and SPA-bus
• Ethernet Interface: Built-in
• Configuration Software: VAMPSET
• USB Interface: Type-B USB

Features

• Dedicated protection for medium- and large-sized motors
• Thermal overload protection
• Stall and locked rotor protection
• Phase imbalance and undercurrent protection
• Optional RTD temperature monitoring
• Built-in power quality analysis
• Harmonic monitoring up to the 15th order
• Voltage sag and swell monitoring
• Local and remote motor control
• Optional ultra-fast arc flash protection
• Built-in disturbance recorder and fault recording
• Stores up to 2,000 event records
• Native IEC 61850 support
• Wide range of industrial communication protocols
• Easy configuration using VAMPSET software

Applications

• Medium-voltage motors
• Large induction motors
• Synchronous motors
• Motor control centres (MCC)
• Industrial manufacturing plants
• Mining and mineral processing
• Cement plants
• Steel manufacturing facilities
• Oil and gas industries
• Water and wastewater treatment plants
• Power generation facilities
• Marine and offshore installations
• Process industries
• Electrical retrofit and modernization projects
