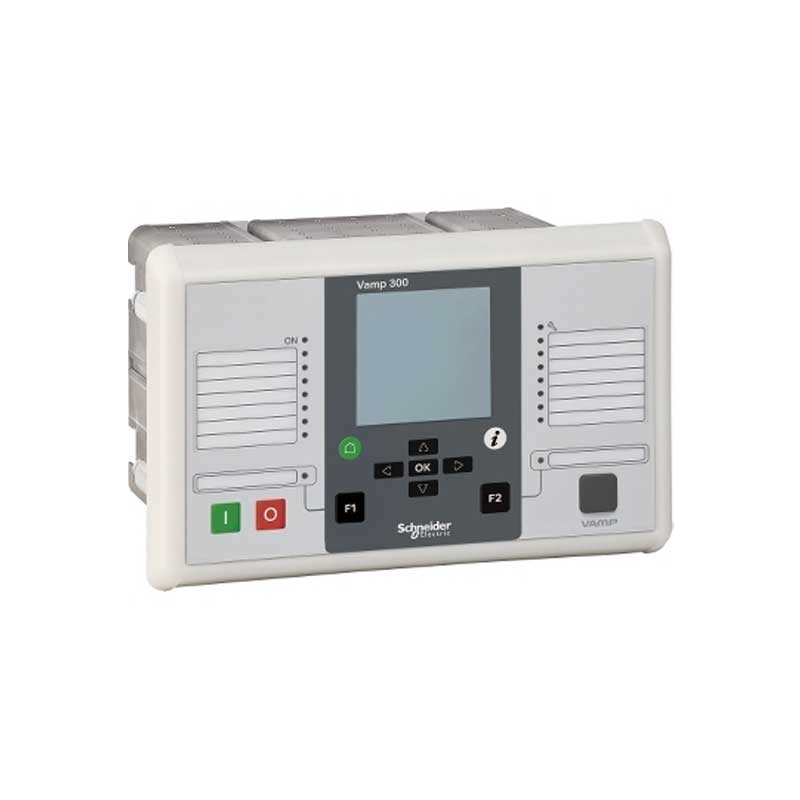

Schneider VAMP 300M Motor Protection and Control Relay

Schneider VAMP 300M Motor Protection and Control Relay Supplier, Exporter in India

Schneider VAMP 300M Motor Protection and Control Relay is used for protecting and monitoring medium-voltage motors and their feeder cables. It covers the electrical and thermal conditions that can damage a motor during starting, normal operation or a fault.

The relay checks motor current, starting time, thermal condition, current unbalance and earth fault conditions. It can also detect problems such as stalled rotor, excessive starting time, undercurrent and repeated starts, depending on the functions enabled in the relay. This makes the VAMP 300M useful for motors operating pumps, compressors, fans, conveyors, crushers and other important plant equipment.

Optional RTD interface modules can bring motor winding and bearing temperature readings into the protection system. These temperature values can be viewed locally and transferred to the plant automation system, giving maintenance teams a clearer picture of the motor’s operating condition.

VAMP 300M also handles motor control, electrical measurements, alarms, event records and disturbance recording. Optional arc flash protection can be added for motor control centres and switchgear panels where fast clearing of an internal arc fault is required. Schneider lists VAMP 300M as the motor protection model within the PowerLogic VAMP 300 Series.

Specifications

• Product Name: Schneider VAMP 300M Motor Protection and Control Relay
• Product Series: PowerLogic VAMP 300
• Device Type: Numerical motor protection and control IED
• Main Application: Medium-voltage motor and motor feeder protection
• Protection Functions: Thermal overload, phase overcurrent, earth fault, current unbalance, negative sequence, undercurrent, start supervision, stalled rotor and locked rotor protection
• Voltage and Frequency Functions: Available according to relay configuration and connected measurement inputs
• Temperature Monitoring: Motor winding and bearing temperature measurement through optional RTD interface units
• Arc Flash Protection: Optional
• Measurements: Phase and residual current, voltage, frequency, power, energy, demand and motor operating values
• Recording Functions: Event records, fault values and disturbance recording
• Control Functions: Motor start and stop control, switching-device status monitoring and programmable logic
• Communication: IEC 61850, Modbus TCP, Modbus RTU, DNP3, IEC 60870-5-101, IEC 60870-5-103, Profibus DP, SPA-bus and other options, depending on the communication hardware
• Configuration Software: VAMPSET
• Mounting: Panel mounting

The exact protection stages, analogue inputs, communication ports and digital I/O arrangement depend on the complete VAMP 300M ordering code and installed modules.

Features

• Motor thermal overload protection
• Supervision of motor starting time and starting current
• Locked rotor and stalled motor protection
• Phase overcurrent and earth fault protection
• Current unbalance and negative sequence monitoring
• Undercurrent and loss-of-load supervision
• Control of excessive or repeated motor starts
• Optional winding and bearing temperature monitoring
• Optional high-speed arc flash protection
• Motor start and stop control
• Electrical measurements from the relay display
• Event and disturbance records for checking motor trips
• Programmable inputs, outputs and control logic
• IEC 61850 and other SCADA communication options
• Settings and commissioning through VAMPSET software
• Used for new motor panels, plant upgrades and replacement of existing VAMP relays

VAMPSET is Schneider’s setting and configuration software for the VAMP relay range, while the VAMP 300 platform covers separate applications for motors, feeders, generators and transformers.

Applications

• Medium-voltage motor control centres
• Large pump motors
• Compressor motors
• Cooling tower and ventilation fan motors
• Conveyor drive motors
• Crusher and mill motors
• Boiler feed pump motors
• Water treatment and pumping stations
• Cement and steel plants
• Mining and mineral-processing plants
• Oil and gas facilities
• Petrochemical and chemical plants
• Power generation facilities
• Marine and offshore installations
• Industrial substations
• Process plants
• Existing VAMP 300M relay replacement
• Motor protection panel retrofit projects
