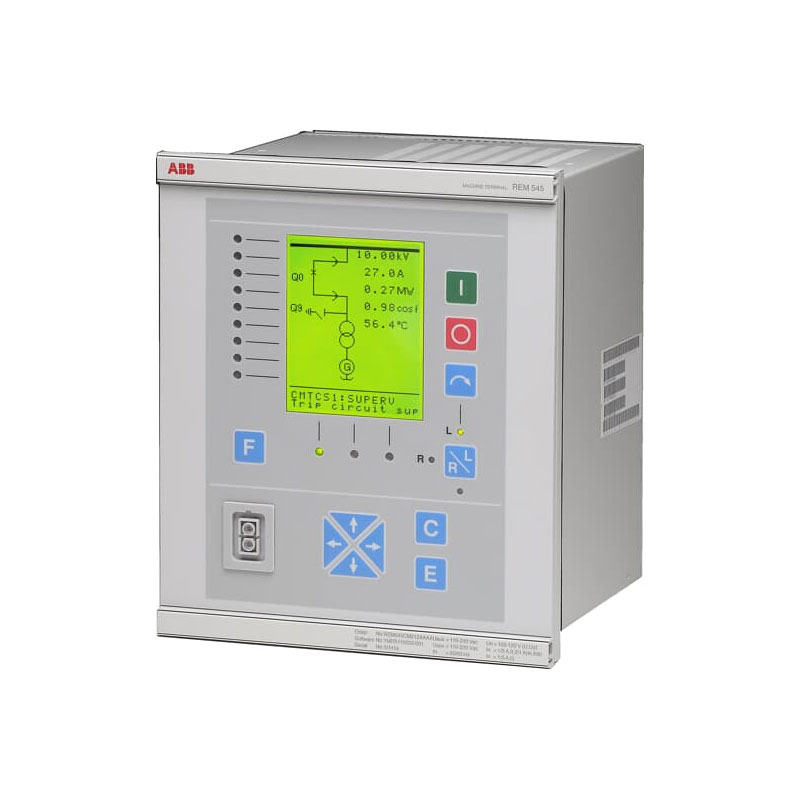

ABB REM545 Motor Terminal

ABB REM545 Motor Protection Terminal Supplier and Exporter in India

ABB REM545 Motor Terminal Legacy Spare and Replacement Enquiries

ABB REM545 is a legacy machine protection terminal used for motor, generator and generator-transformer protection.

Description

ARP IMPEX supplies and exports ABB REM545 motor protection terminals for industrial motor, generator and rotating-machine protection requirements.

REM545 is part of ABB’s REM54x machine protection terminal range. It combines protection, control, measurement, condition monitoring and communication functions in one unit. ABB developed the terminal for large or important medium-voltage synchronous and asynchronous motors as well as generators and generator-transformer units.

Depending on the installed configuration, REM545 can cover motor thermal overload, short circuit, earth fault, phase unbalance, motor starting and stall conditions. Generator-related functions such as differential protection, abnormal frequency, under-excitation, reverse power and other protection functions were also available within the REM54x platform.

One useful difference between REM543 and REM545 is the available input/output capacity. ABB specifies 25 binary inputs and 18 output relays for REM545, making it suitable for panels where more control, signalling and interlocking points are required. An optional RTD arrangement was also available for temperature monitoring.

For ABB REM545 price and availability, send the complete ABB part or hardware number, clear nameplate photograph, required quantity and destination country.

Technical Specifications

• Brand: ABB
• Series: REM54x / RE500
• Model: REM545
• Product type: Machine/motor protection terminal
• Product status: Not active since 2022
• Main use: Motor, generator and generator-transformer protection
• Binary inputs: 25
• Output relays: 18
• RTD inputs: Optional
• Current measurement: Through conventional CTs or supported current sensors
• Voltage measurement: Through VTs or supported voltage dividers
• Motor protection: Available according to configuration
• Generator protection: Available according to configuration
• Measurement: Current, voltage, frequency, power and energy functions
• Control: Local and remote switching control
• Communication: SPA, LON and Modbus
• Condition monitoring: Circuit-breaker and trip-circuit supervision available

ABB supplied REM545 with different protection and hardware configurations, so the complete order code should be checked when sourcing a matching unit.

Features

• Motor thermal overload protection
• Short-circuit protection
• Earth-fault protection
• Motor phase-unbalance protection
• Motor start-up supervision
• Stall protection
• Cumulative start supervision
• Generator protection functions depending on configuration
• Temperature monitoring with optional RTD inputs
• Local and remote equipment control
• Programmable logic for interlocking and sequencing
• Current, voltage and power measurement
• Circuit-breaker condition monitoring
• Trip-circuit supervision
• Communication with higher-level automation systems

The actual functions available in a particular REM545 depend on its original configuration. For an existing terminal, the ABB order code and nameplate provide a better starting point than the model name alone.

Applications

ABB REM545 is suitable for:

• Medium-voltage motor protection
• Large asynchronous motors
• Synchronous motors
• Pump motors
• Fan motors
• Mill motors
• Crusher motors
• Critical industrial drives
• Generator protection
• Generator-transformer protection
• Diesel power plants
• Hydroelectric power plants
• Steam power plants
• Industrial power systems
• Marine applications
• Offshore installations

ABB specifically documents REM543 and REM545 for large or important MV motors used in pumps, fans, mills and crushers, as well as generator and generator-transformer units in small and medium-sized power plants.

ABB REM54x Machine Protection Terminal Family

The ABB REM54x family includes REM543 and REM545. Both are machine protection terminals covering protection, measurement, control, condition monitoring and communication. Their main hardware difference is the number of digital inputs and outputs available.

ABB REM543

REM543 is the lower-I/O version of the REM54x family. It is used where the required number of control, indication and interlocking points is lower.

ABB REM545

REM545 provides the larger I/O arrangement with:

• 25 binary inputs
• 18 output relays
• Optional RTD inputs

This makes REM545 useful for motor or generator panels where more external signals, control points and interlocking functions need to be handled by the terminal.

REM543 and REM545 belong to the same product family, but the installed hardware and configuration should be checked when sourcing a replacement.

ABB REM545 Replacement and Legacy Spare Availability

ABB REM545 is a legacy product, and ABB lists it as not active since 2022.

ARP IMPEX can assist with:

• ABB REM545 part-code checking
• Existing terminal nameplate matching
• REM545 legacy spare enquiries
• REM543 and REM545 requirements
• Failed terminal replacement enquiries
• Plant maintenance requirements
• Single or multiple quantities
• ABB technical documentation
• Export supply

For an ABB REM545 requirement, please send:

• Complete ABB order/hardware code
• Clear nameplate photograph
• Hardware or software revision, if available
• Quantity
• Destination country
• Required delivery date

Why Buy ABB REM545 from ARP IMPEX?

ARP IMPEX supplies ABB protection and control products for international requirements.

We can support enquiries from:

• Industrial plants
• Power plants
• Utilities
• EPC contractors
• OEMs
• Panel builders
• Maintenance companies
• Electrical traders

We can assist with ABB REM545 price checking, part-code identification, legacy spare availability, export packing and international shipping.

Request a Quote for ABB REM545

For ABB REM545 price and availability, send:

• Complete REM545 part number
• Clear nameplate photograph
• Quantity required
• Destination country
• Required delivery date

Send your ABB REM545 part code, quantity and destination country to ARP IMPEX for availability and export quotation.
