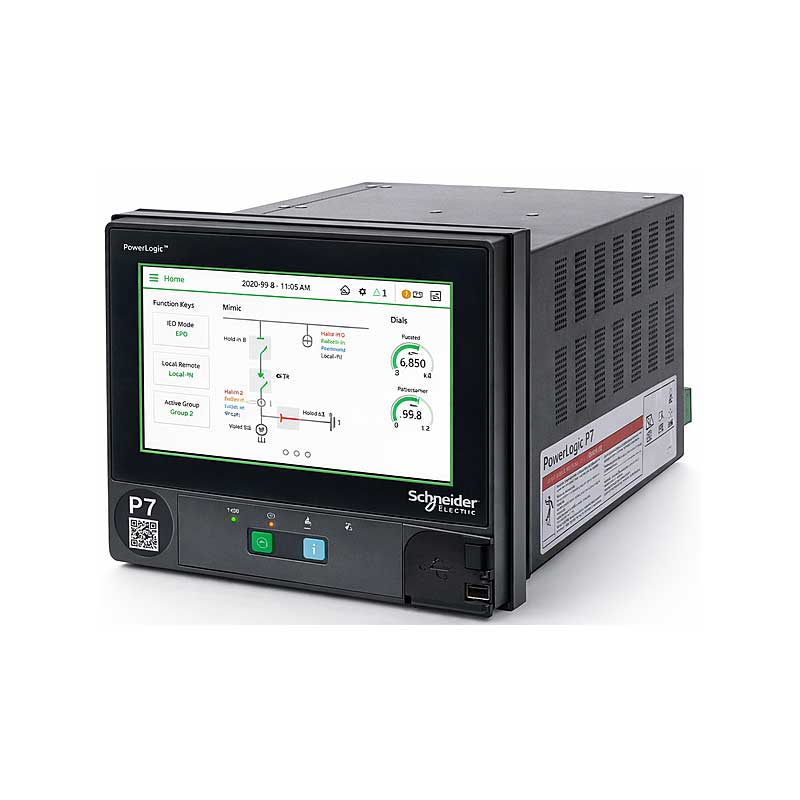

Schneider Electric PowerLogic™ P7 Motor Protection Relay

The Schneider Electric PowerLogic™ P7 Motor Protection Relay is designed to protect and monitor medium and high-voltage motors used in industrial plants, utilities and critical process applications. It combines comprehensive motor protection, control, condition monitoring and communication functions in a single intelligent device, helping improve equipment reliability and reduce unexpected downtime.

The relay continuously monitors motor operating conditions and responds quickly to electrical faults, overloads and abnormal operating situations before they cause damage. It supports a wide range of motor starting methods and can be configured for induction and synchronous motors used in demanding industrial environments.

Built on the PowerLogic P7 platform, the relay supports IEC 61850 communication, programmable automation and advanced cybersecurity. Its flexible configuration, real-time diagnostics and graphical user interface simplify commissioning, maintenance and integration with modern SCADA and substation automation systems.

Specifications

• Manufacturer: Schneider Electric
• Product Family: PowerLogic™ P7
• Relay Type: Numerical Motor Protection Relay
• Protection Application: Medium and High Voltage Motors
• Motor Types: Induction Motors and Synchronous Motors
• Protection Functions: Thermal Overload, Locked Rotor, Stall Protection, Phase Unbalance, Phase Loss, Earth Fault, Overcurrent, Undercurrent, Overvoltage, Undervoltage, Frequency Protection and Breaker Failure
• Motor Starting Supervision: Supported
• Motor Condition Monitoring: Supported
• Communication Protocols: IEC 61850 Edition 2, Modbus TCP, DNP3, IEC 60870-5-103/104
• Ethernet Communication: Dual Ethernet Ports
• Ethernet Redundancy: PRP, HSR and RSTP
• Time Synchronization: IEEE 1588 PTP and IRIG-B
• Event Recording: Supported
• Disturbance Recording: Supported
• Fault Recording: Supported
• Programmable Logic: Supported
• Cybersecurity: Role-based access control, secure communication and audit logging
• HMI: High-resolution colour display with programmable function keys
• Mounting: Flush panel mounting

Features

• Numerical relay designed for motor protection and monitoring.
• Suitable for induction and synchronous motors.
• Thermal overload protection helps extend motor service life.
• Detects locked rotor, stall, phase loss and phase unbalance conditions.
• Integrated earth fault, overcurrent and voltage protection.
• Real-time motor condition monitoring and diagnostics.
• Advanced programmable logic for customised motor control schemes.
• IEC 61850 Edition 2 communication for digital substations.
• Redundant Ethernet support with PRP, HSR and RSTP.
• Event, disturbance and fault recording for troubleshooting.
• Modern cybersecurity features for secure operation.
• Colour graphical HMI for simple configuration and monitoring.

Applications

• Industrial motor protection
• Process industries
• Oil and gas facilities
• Mining and metal plants
• Cement plants
• Water and wastewater treatment plants
• Chemical and petrochemical industries
• Power generation facilities
• Utility installations
• Digital substations

The Schneider Electric PowerLogic™ P7 Motor Protection Relay provides reliable protection, intelligent monitoring and advanced communication for critical motor applications. Its comprehensive protection functions and flexible automation capabilities help improve equipment availability while reducing maintenance costs and unplanned shutdowns.
