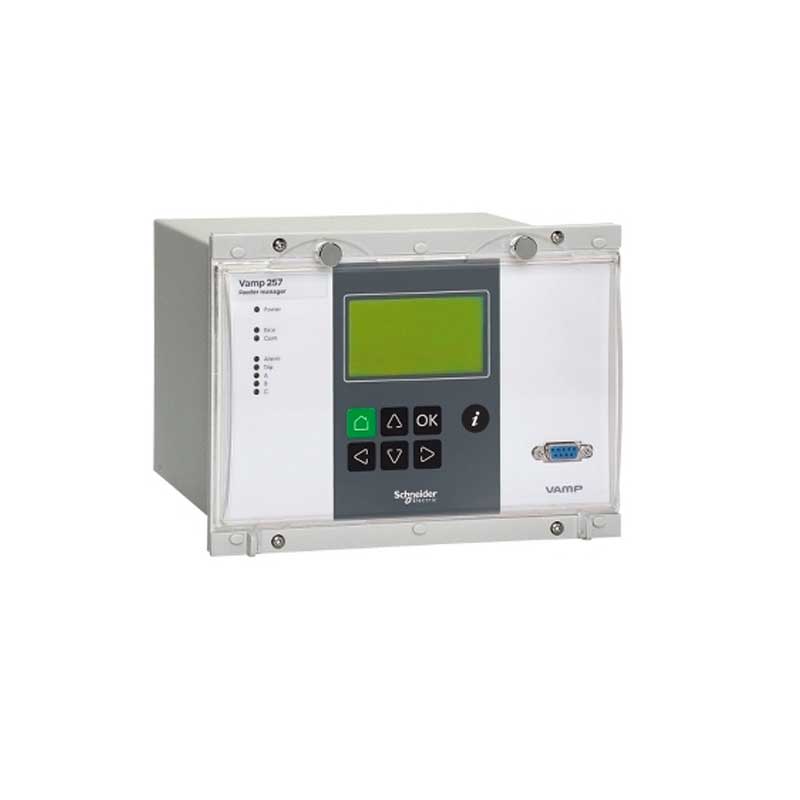

Schneider VAMP 257 PowerLogic Advanced Feeder and Motor Protection Relay
Schneider VAMP 257 PowerLogic Advanced Feeder and Motor Protection Relay is a multifunction numerical relay developed for advanced protection and control of low- and medium-voltage feeders, motors, and electrical distribution systems. It combines protection, automation, metering, and communication functions in a single unit, making it suitable for demanding industrial and utility applications.
The relay supports a wide range of current- and voltage-based protection functions, allowing it to adapt to different network configurations. With five current inputs and three voltage inputs, VAMP 257 provides directional overcurrent protection, voltage supervision, auto-reclose, and detailed power measurements. Its large digital I/O capacity also makes it suitable for applications requiring extensive control and monitoring.
Built-in Ethernet with native IEC 61850 communication enables easy integration with SCADA and substation automation systems. The relay also supports removable communication modules, giving users the flexibility to select the most suitable communication interface for their installation.
Specifications
- Product Name: Schneider VAMP 257
- Product Family: PowerLogic™
- Relay Type: Advanced Feeder and Motor Protection Relay
- Application: Low- and Medium-Voltage Feeders and Motors
- Current Inputs: 5
- Voltage Inputs: 3
- Protection Functions: Overcurrent, Earth Fault, Directional Overcurrent, Voltage Protection and Auto-Reclose
- Measurements: Current, Voltage, Frequency, Active Power, Reactive Power, Apparent Power and Energy
- Digital Inputs: Up to 28 (configuration dependent)
- Digital Outputs: Up to 19 (configuration dependent)
- Event Recording: Up to 2,000 event and fault records
- Memory: Non-volatile memory
- Arc Protection: Optional
- Communication: Native IEC 61850 with GOOSE messaging
- Ethernet Interface: Built-in
- Communication Modules: Removable and interchangeable modules
- Expansion: PTD input module support
- Configuration Software: VAMPSET
Features
- Advanced feeder and motor protection relay
- Five current and three voltage inputs
- Directional overcurrent protection
- Voltage-based protection functions
- Auto-reclose capability
- Built-in power and energy measurements
- Stores up to 2,000 event and fault records
- Non-volatile memory for secure data retention
- Supports up to 28 digital inputs and 19 digital outputs
- Built-in Ethernet with native IEC 61850 and GOOSE messaging
- Removable communication modules for flexible system integration
- Optional arc protection interface
- Compatible with PTD input modules
- Easy configuration using VAMPSET software
Applications
- Medium-voltage distribution feeders
- Industrial motor protection
- Utility substations
- Industrial power distribution systems
- OEM switchgear panels
- Motor control centres (MCC)
- Renewable energy facilities
- Water and wastewater treatment plants
- Mining operations
- Cement and steel industries
- Oil and gas facilities
- Infrastructure and commercial power systems
- Electrical distribution automation
- Retrofit and modernization projects
