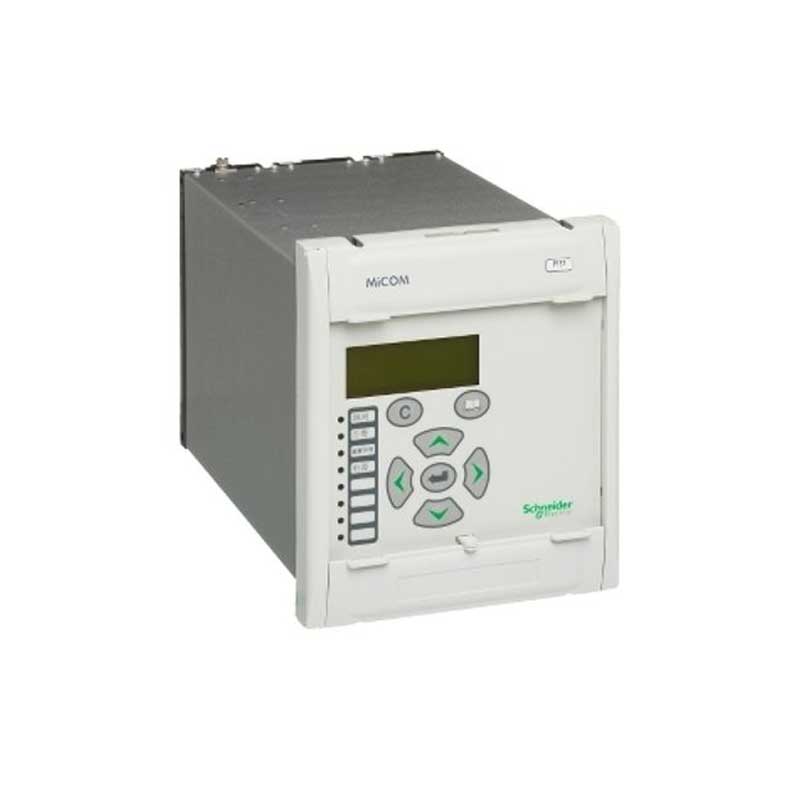

Schneider MiCOM P220 PowerLogic Motor Protection Relay

Schneider MiCOM P220 PowerLogic Motor Protection Relay Suppliers,Exporters in India

Schneider MiCOM P220 PowerLogic Motor Protection Relay is a numerical relay designed to protect low- and medium-voltage motors used in industrial plants, utility substations, and critical process applications. It combines motor protection, monitoring, control, and measurement functions in a single relay, helping improve motor reliability while reducing the need for multiple protection devices.

The relay continuously monitors motor current, voltage, and temperature to protect against overloads, short circuits, earth faults, phase imbalance, and other abnormal operating conditions. It also includes features such as anti-backspin protection, high inertia load management, trip circuit supervision, and circuit breaker failure protection to improve the safety and availability of motor-driven systems.

MiCOM P220 uses a true RMS-based thermal model to calculate motor heating more accurately, even when harmonic currents are present. Available in both compact and rack-mounted versions, the relay can be integrated easily into new installations as well as retrofit projects. Standard communication options also allow straightforward integration with SCADA and substation automation systems.

Specifications

• Product Name: Schneider MiCOM P220 PowerLogic Motor Protection Relay
• Series: MiCOM P220
• Relay Type: Motor Protection Relay
• Display: Standard Display
• Module Width: 30 TE
• Application: Low- and Medium-Voltage Motors
• Measurements: Current, Voltage and Temperature
• Protection Functions: Thermal Overload, Short Circuit, Earth Fault, Phase Unbalance, Stall,
• Locked Rotor and Undercurrent Protection
• Thermal Model: True RMS-Based Thermal Image
• Motor Control: High Inertia Load and Anti-Backspin Functions
• Monitoring: Trip Circuit Supervision and Circuit Breaker Failure Protection
• Mounting: Compact and Rack-Mounted Versions
• Communication: Supports integration with SCADA and Substation Automation Systems
• Configuration: Software-based programmable settings

Features

• Complete motor protection in a single relay
• Current, voltage and temperature monitoring
• True RMS thermal overload protection
• Protection against overload, short circuit and earth fault
• Phase unbalance and locked rotor protection
• High inertia load management
• Anti-backspin protection for safe motor restarting
• Trip circuit supervision
• Circuit breaker failure protection
• Standard display for local monitoring and operation
• Compact and rack-mounted installation options
• Event recording and system monitoring
• Easy integration with SCADA and automation systems
• Flexible protection settings for different motor applications

Applications

• Medium-voltage motors
• Low-voltage motors
• Pumping stations
• Compressors
• Fans and blowers
• Conveyors
• Crushers
• Mills
• Water and wastewater treatment plants
• Mining operations
• Cement plants
• Steel manufacturing facilities
• Oil and gas industries
• Power generation plants
• Industrial processing facilities
