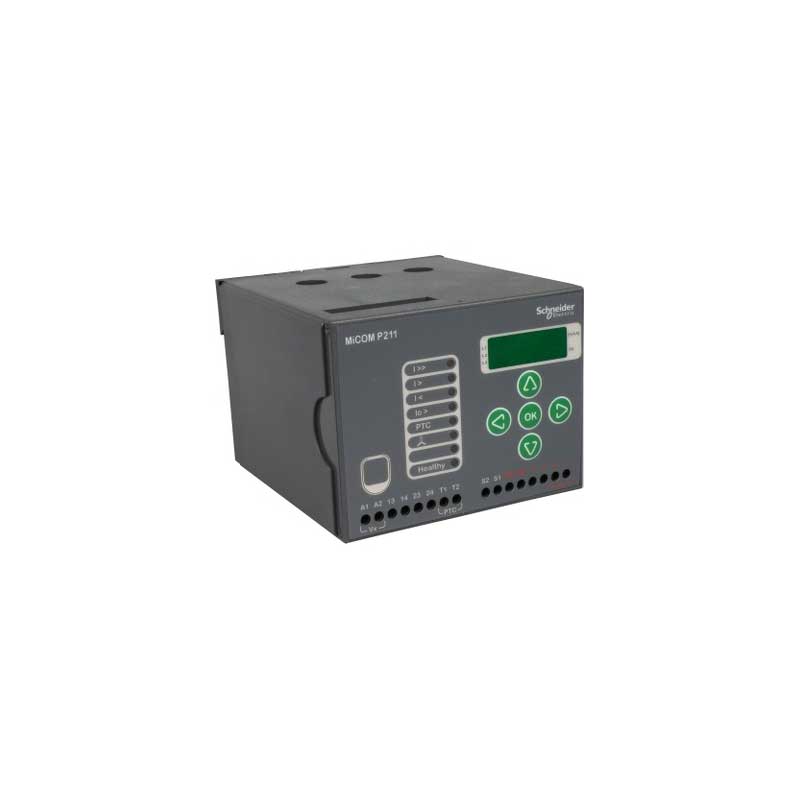

Schneider Electric PowerLogic™ MiCOM P211 Motor Protection Relay
Schneider Electric PowerLogic™ MiCOM P211 Motor Protection Relay is built for protecting low and medium voltage motors used in industrial power systems. It monitors motor operating conditions continuously and trips the circuit when it detects abnormal conditions such as overload, earth fault, locked rotor, phase unbalance, or excessive starting time.
Motors are often the most heavily used assets in a plant, and they are also the most vulnerable to heat build-up, supply problems, and mechanical loading issues. The MiCOM P211 helps reduce that risk by combining protection, monitoring, and fault recording in one relay. It gives operators a clearer view of how the motor is behaving and helps maintenance teams investigate trips and recurring faults more quickly.
The relay is commonly used on pumps, fans, compressors, conveyors, and other motor-driven equipment where reliable motor protection is essential for keeping the process running.
Specifications
- Manufacturer: Schneider Electric
- Product Family: PowerLogic™ MiCOM
- Model: P211
- Relay Type: Numerical Motor Protection Relay
- Protection Application: Motor Protection
- Suitable For: Low Voltage and Medium Voltage Motors
- Protection Functions: Overload Protection, Earth Fault Protection, Phase Unbalance Protection, Locked Rotor Protection, Start Supervision and Thermal Protection
- Technology: Digital / Numerical Relay
- Monitoring Functions: Motor Current Monitoring, Fault Monitoring and Event Recording
- Event Recording: Yes
- Fault Recording: Yes
- Communication: Available depending on configuration
- Installation: Motor Control Panels, MCCs and Protection Panels
Features
- Designed for motor protection applications.
- Protects motors against overload, earth fault and abnormal operating conditions.
- Monitors starting conditions and locked rotor situations.
- Helps detect phase unbalance and thermal stress.
- Records trips, alarms and fault events for troubleshooting.
- Supports monitoring of motor operating conditions.
- Suitable for both low-voltage and medium-voltage motor circuits.
- Fits industrial motor control and protection panels.
Applications
- Pump Motors
- Fan Motors
- Compressors
- Conveyor Drives
- Blowers
- Process Plant Motors
- Water and Wastewater Facilities
- Industrial Motor Control Centres
Schneider Electric PowerLogic™ MiCOM P211 Motor Protection Relay helps protect critical motors from electrical and thermal damage while giving operators the information needed to keep equipment running safely.
