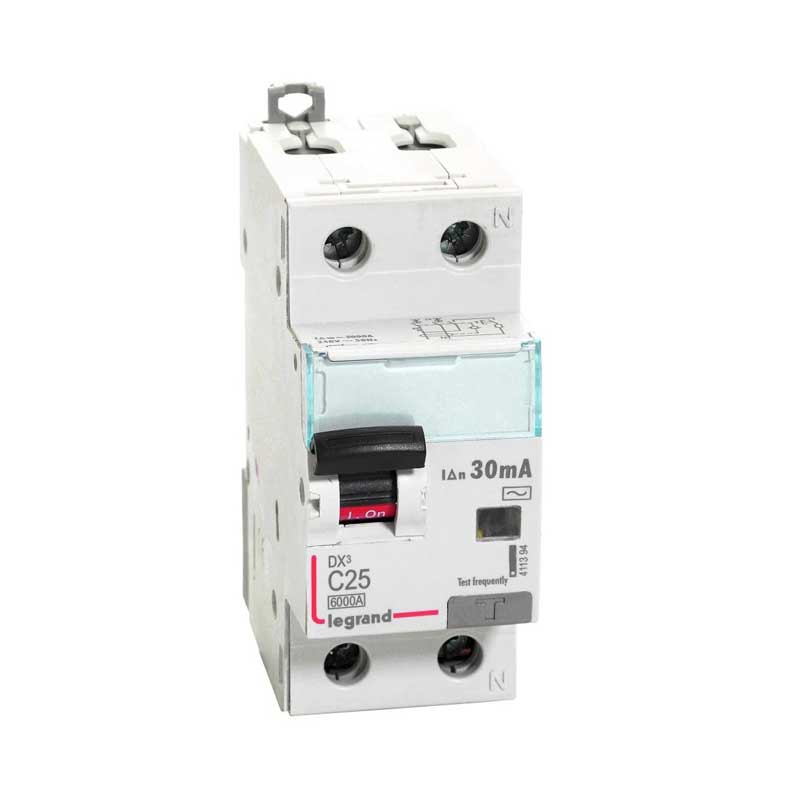

Legrand 411394 DX3 RCBO – 25A DP 30mA 6kA AC:240V AC TYPE
Poles : 2
Breaking Capacity : 6 Ka
Rated Current : 25 A
Sensitivity : 30 Ma
Voltage : 240V
Mounting : DIN Rail
The Legrand 411394 DX3 RCBO is a compact protection device designed to protect electrical circuits from overload, short circuit, and earth leakage faults. This RCBO combines the functions of an MCB and RCCB in a single unit, helping save space inside electrical distribution boards while improving circuit safety.
Manufactured by Legrand, the 411394 RCBO comes with a 25A current rating, 30mA sensitivity, and 6kA breaking capacity, making it suitable for residential, commercial, and light industrial electrical installations. The AC Type leakage protection is designed for alternating current fault detection commonly found in standard electrical systems.
Its double pole configuration disconnects both phase and neutral during fault conditions for improved safety and reliable circuit isolation.
Features
- 25A Double Pole (DP) RCBO
- 30mA earth leakage sensitivity
- 6kA breaking capacity
- AC Type leakage protection
- Protection against overload, short circuit, and leakage current
- Compact DX3 modular design
- DIN rail mounting
- Fast tripping mechanism for enhanced electrical safety
- Color coded ON/OFF indication
- Front face earth leakage indication
- IP20 protected terminals
- Sliding shutters for safer wiring connection
- Integrated label holder
- Suitable for residential, commercial, and industrial applications
Applications
- Residential electrical distribution boards
- Commercial buildings and offices
- Lighting and socket protection circuits
- HVAC and air conditioning systems
- Retail shops and malls
- Industrial control panels
- Machinery and equipment protection
- Hotels and hospitality projects
- Electrical contractor and panel builder applications
- Modern electrical safety installations
