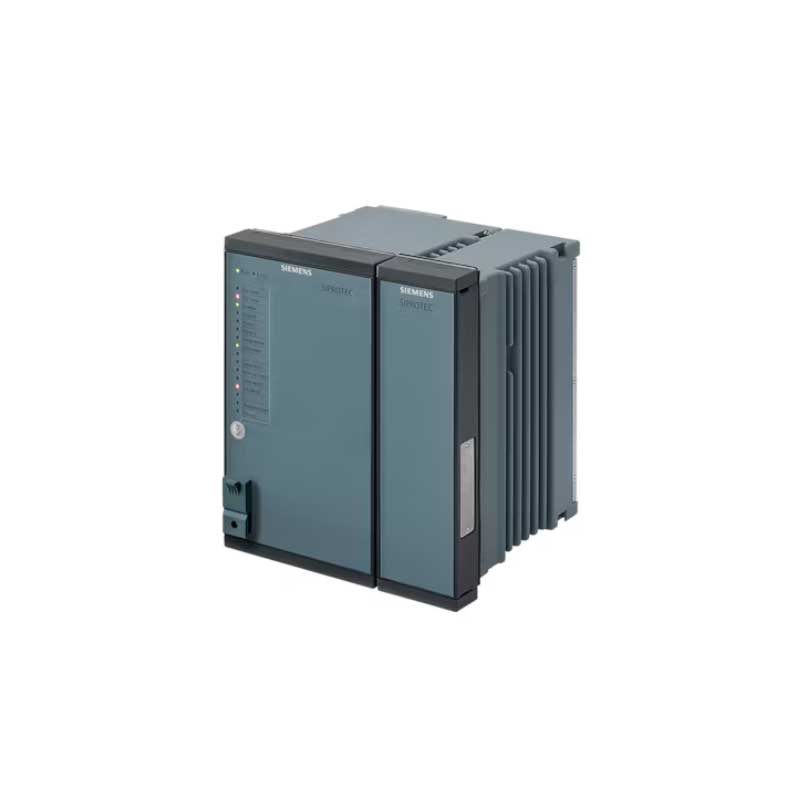

Siemens SIPROTEC 6MU85 Merging Unit

Siemens SIPROTEC 6MU85 Merging Unit Suppliers,Exporters in India

ARP IMPEX is a supplier and exporter of Siemens SIPROTEC 6MU85 Merging Units in India. We handle requirements for digital substations, transmission networks, power plants, transformer bays, distributed busbar protection systems and IEC 61850 process-bus projects.

The Siemens SIPROTEC 6MU85 collects current, voltage, status and process information close to the primary equipment. It converts this information into standard Ethernet-based messages and sends it to protection relays, bay controllers, fault recorders and other substation devices through the process-bus network.

In a conventional substation, current-transformer and voltage-transformer circuits are wired separately from the switchyard to several protection and control panels. This can require long copper cable runs, multiple terminal blocks and repeated CT and VT wiring.

The 6MU85 moves the data-conversion point closer to the switchyard equipment. Current and voltage measurements are digitised at the source and distributed through fibre-optic or Ethernet communication.

This arrangement can reduce conventional secondary wiring, simplify the sharing of measured values and make future system expansion easier.

The device can work with conventional current and voltage transformers as well as applicable non-conventional instrument transformers and low-power sensors. It supports IEC 61869 and IEC 61850-9-2 process-bus systems.

For Siemens SIPROTEC 6MU85 price and availability, send the complete Siemens order code, required configuration, quantity and destination country.

What the Siemens 6MU85 Does

The 6MU85 works as a data connection between the primary electrical equipment and the secondary protection and automation system.

It can collect:

• Phase currents
• Ground or neutral current
• Phase voltages
• Busbar voltages
• Circuit-breaker position
• Disconnector position
• Earthing-switch position
• Protection trip signals
• Transformer temperature
• Oil or gas pressure
• Tap-changer position
• Alarm contacts
• Equipment supervision signals
• Other analogue and binary process information

The measured values are converted into Sampled Measured Value streams and transmitted through the IEC 61850 process bus.

Protection relays connected to the same network can receive these digital current and voltage values without needing individual copper CT and VT connections.

IEC 61850 Process-Bus Operation

The process bus carries real-time information between equipment located near the switchyard and devices installed in the protection and control room.

The Siemens 6MU85 supports:

• IEC 61850-9-2 Sampled Values
• IEC 61850-9-2 LE
• IEC 61869-9
• IEC 61869-13
• IEC 61850 GOOSE
• IEC 61850 MMS reporting
• IEEE 1588v2 Precision Time Protocol
• PRP and HSR Ethernet redundancy

Sampled Values are used for continuous current and voltage measurements.

GOOSE messages are used for fast binary information such as:

• Trip commands
• Circuit-breaker positions
• Protection blocking
• Interlocking signals
• Circuit-breaker failure initiation
• Busbar-protection information
• Automatic reclosing signals
• Transfer-trip commands

The 6MU85 can transmit measured values and fast binary signals through the same Ethernet-based substation architecture.

Sampled Measured Value Streams

A Siemens 6MU85 can provide several Sampled Measured Value streams, depending on its configuration.

Applicable configurations support:

• Up to eight Sampled Value streams
• Up to 32 analogue values in different CT and VT combinations
• Four current and four voltage values under IEC 61850-9-2 LE
• Conventional CT and VT measurements
• Low-power instrument transformer inputs on applicable hardware
• Flexible allocation of measured values to different protection devices

One merging unit can therefore supply current and voltage information to several protection, control and monitoring devices.

For example, the same transformer current values may be used by:

• Transformer differential protection
• Backup overcurrent protection
• Busbar protection
• Metering system
• Fault recorder
• Power-quality monitoring
• Substation automation system

The actual sharing arrangement depends on the process-bus design and protection redundancy philosophy.

Use with Conventional CTs and VTs

Existing substations often use conventional electromagnetic current and voltage transformers.

The Siemens 6MU85 can receive these conventional analogue signals and convert them into digital Sampled Value messages.

This makes the device relevant for digital-substation retrofit projects where the primary instrument transformers will remain in service, but the secondary protection system is being modernised.

A retrofit may retain:

• Existing current transformers
• Existing voltage transformers
• Existing primary switchgear
• Existing circuit breakers
• Existing transformers

The copper connections may terminate at a 6MU85 installed in the switchyard, marshalling kiosk or relay panel. From that point, the measured values can be transmitted digitally to compatible protection devices.

Use with Non-Conventional Instrument Transformers

Applicable Siemens 6MU85 configurations can also work with low-power current and voltage sensors.

These may include:

• Low-power current transformers
• Low-power voltage transformers
• Rogowski coils
• Capacitive voltage sensors
• Other supported non-conventional instrument transformers

Low-power sensors produce smaller electrical signals than conventional CTs and VTs. The 6MU85 converts these signals into standard digital values that can be used by compatible protection and control equipment.

The input module must match the installed sensor type. A unit ordered for conventional CT and VT inputs cannot automatically be connected to low-power sensors without the correct hardware.

Central Merging Unit for Transformer Bays

A power transformer may have several current, voltage and process measurements spread across different sides of the transformer.

The Siemens 6MU85 can act as a central data-acquisition device for the complete transformer bay.

Depending on the configuration, it can collect:

• High-voltage winding currents
• Low-voltage winding currents
• Tertiary winding currents
• Neutral current
• High-voltage-side voltage
• Low-voltage-side voltage
• Tap-changer position
• Winding temperature
• Oil temperature
• Pressure alarms
• Buchholz relay contacts
• Pressure-relief device status
• Cooling-system information
• Circuit-breaker positions
• Disconnector positions

The information can then be sent to transformer protection, bay control, monitoring and asset-management systems.

This arrangement can reduce the number of separate cables running from the transformer to the protection building.

Distributed Busbar Protection

The Siemens 6MU85 can be used as a bay-level data-acquisition unit in distributed busbar protection systems.

Each merging unit collects the current measurements and switchgear status for its own bay.

The data can be transmitted to a central Siemens SIPROTEC 7SS85 Busbar Protection Relay or another compatible busbar-protection system.

The merging unit may provide:

• Bay current measurements
• Circuit-breaker status
• Busbar disconnector positions
• Isolator positions
• Earthing-switch status
• High-speed trip outputs
• Circuit-breaker failure information
• End-fault protection functions

This arrangement reduces the need to bring every CT circuit and switchgear contact directly to the central busbar-protection panel.

It also makes expansion easier when additional bays are added to the substation.

High-Speed Circuit-Breaker Tripping

The Siemens 6MU85 can be equipped with high-speed output contacts for direct circuit-breaker tripping.

Applicable contacts can operate in less than approximately one millisecond.

This can be useful for:

• Busbar protection
• Arc protection
• Circuit-breaker failure protection
• Transformer protection
• High-speed transfer trip
• Switch-onto-fault protection
• Critical power-system applications

The trip command may be received through IEC 61850 GOOSE and passed directly to the circuit-breaker trip coil.

The complete operating time also includes:

• Protection relay decision time
• Network transmission time
• Merging-unit output time
• Trip-relay time
• Circuit-breaker opening time

High-speed outputs are optional and must be included in the ordered hardware.

Arc Protection

The Siemens SIPROTEC 6MU85 can include optical arc-detection modules.

Point sensors or line sensors can be installed inside:

• Circuit-breaker compartments
• Busbar chambers
• Cable compartments
• Switchgear panels
• Transformer marshalling boxes
• Indoor substation equipment

The arc signal can be combined with an overcurrent condition before the trip command is issued.

Applicable configurations can provide very fast arc detection and tripping, helping reduce equipment damage and personnel exposure.

The number and position of arc sensors must be selected from the switchgear layout and required protection zones.

Transformer Process Data Collection

The 6MU85 can collect more than electrical current and voltage values.

Optional input modules can receive process data such as:

• 4–20 mA analogue signals
• PT100 temperature sensor signals
• BCD-coded tap-changer positions
• Temperature measurements
• Pressure measurements
• Oil-level information
• Cooling-system status
• Transformer tap position
• Equipment condition signals

This information can be sent to:

• Transformer monitoring system
• Station automation system
• SCADA
• Asset-management platform
• Protection relay
• Remote control centre
• Cloud-based monitoring system

The device can therefore work as a central transformer data node in addition to its normal merging-unit duty.

Fault Recording for Process-Bus Systems

The Siemens SIPROTEC 6MU85 can record analogue and binary information from the process bus.

Fault records may include:

• Phase currents
• Ground current
• Phase voltages
• Busbar voltages
• Binary input changes
• Trip signals
• Circuit-breaker positions
• GOOSE messages
• Protection indications
• Transformer process data

Applicable configurations provide long-duration fault-recording capacity.

The records can be accessed through DIGSI 5 or the device web interface and used to investigate:

• Protection operation
• Circuit-breaker failure
• Transformer faults
• Busbar faults
• Communication problems
• Incorrect switching
• Process-bus performance
• Power-system disturbances

The 6MU85 can also be used as a dedicated fault recorder in digital substations.

Time Synchronisation

Accurate time synchronisation is essential when current and voltage samples are transmitted through Ethernet.

The Siemens 6MU85 supports IEEE 1588v2 Precision Time Protocol.

PTP keeps measured values from different merging units aligned so that protection devices receive correctly timed samples from several bays or transformer sides.

Accurate timing is particularly important for:

• Transformer differential protection
• Line differential protection
• Distributed busbar protection
• Synchrocheck
• Phasor measurement
• Fault recording
• Event-sequence analysis
• Wide-area monitoring

The process-bus network, Ethernet switches and time source must also support the selected timing arrangement.

Communication Redundancy

The Siemens 6MU85 supports PRP and HSR Ethernet redundancy.

PRP Redundancy

Parallel Redundancy Protocol sends the same information through two independent Ethernet networks.

The receiving device accepts the first valid message and discards the duplicate.

A failure in one network does not require a communication switchover because the second network is already carrying the same data.

HSR Redundancy

High-availability Seamless Redundancy transmits information in both directions around an Ethernet ring.

The receiving device accepts the first valid message.

If one connection in the ring fails, the information can still reach the destination through the opposite direction.

PRP and HSR are commonly used in digital substations where the protection and control system must continue operating after a single communication failure.

Technical Specifications

The Siemens SIPROTEC 6MU85 is a modular and configurable device. The final hardware depends on the complete Siemens order code.

• Brand: Siemens
• Product family: SIPROTEC 5
• Model: 6MU85
• Product type: Modular process-bus merging unit
• Main purpose: Digitisation and distribution of primary process data
• Standards: IEC 61869-9, IEC 61869-13 and IEC 61850-9-2
• Sampled Value streams: Up to eight per device
• Analogue values: Up to 32 values in different CT and VT combinations
• IEC 61850-9-2 LE: Four CT and four VT values
• Conventional inputs: CT and VT inputs on applicable configurations
• Low-power inputs: Rogowski and capacitive sensor inputs on applicable configurations
• Process data: Analogue and binary data acquisition
• Additional analogue inputs: 4–20 mA input modules available
• Temperature inputs: PT100 support with suitable module
• Tap-position input: BCD input support
• High-speed trip output: Less than approximately 1 ms on applicable contacts
• Arc-protection operating time: Approximately 3–4 ms on applicable configurations
• Binary inputs and outputs: Modular and expandable
• Large recording configurations: More than 200 inputs and outputs possible
• Measuring capacity: Configurations covering up to 40 CT and VT inputs
• Engineering software: Siemens DIGSI 5
• Automation logic: Graphical logic editor based on IEC 61131-3
• Time synchronisation: IEEE 1588v2 PTP
• Ethernet redundancy: PRP, HSR and RSTP
• Process-bus communication: IEC 61850-9-2
• Station-bus communication: IEC 61850 reporting and GOOSE
• Additional protocols: IEC 60870-5-103, IEC 60870-5-104, DNP3, Modbus TCP and PROFINET options
• Process-bus distance: Up to approximately 24 km with applicable optical modules
• Fault recording: Up to approximately 80 seconds at 8 kHz or 320 seconds at 2 kHz
• PMU: IEEE C37.118 synchrophasor option
• Point-on-wave switching: Optional
• Redundant power supply: Available
• Housing: Modular SIPROTEC 5 housing
• Housing width: From 1/3 × 19 inches to larger expanded arrangements
• Display options: Without display, small display or large display
• Mounting: Flush or surface mounting
• Operating temperature: Approximately -40°C to +70°C on applicable hardware
• Circuit-board protection: Conformal-coated electronic boards
• Cybersecurity: Role-based access and network-authentication options

These are general family specifications. Input modules, process-bus ports, power supply, binary I/O, communication modules and optional functions must be confirmed from the complete Siemens 6MU85 order code.

Optional Protection and Automation Functions

The main duty of the Siemens 6MU85 is data acquisition and process-bus communication. It can also include protection, supervision and automation functions.

Depending on the selected configuration, available functions may include:

• Phase overcurrent protection
• Ground overcurrent protection
• Directional overcurrent protection
• Directional earth-fault protection
• Undervoltage protection
• Overvoltage protection
• Rate-of-voltage-change protection
• Circuit-breaker failure protection
• End-fault protection
• Switch-onto-fault protection
• Circuit-breaker restrike protection
• Trip-circuit supervision
• Closed-circuit supervision
• Automatic reclosing
• Lockout function
• Synchrocheck
• Synchronising
• Automatic voltage control
• Circuit-breaker wear monitoring
• Point-on-wave switching
• Switching sequences
• Basic power-quality monitoring
• Synchrophasor measurement
• Arc protection
• Transformer temperature monitoring
• Programmable logic

The 6MU85 should not automatically be treated as the main protection relay only because optional protection functions are available.

Dedicated transformer, line, feeder or busbar protection may still be provided by separate SIPROTEC relays receiving their measurements from the merging unit.

Features

• Converts primary current and voltage signals into digital Sampled Values
• Connects primary equipment with protection and control devices
• Supports IEC 61850 process-bus systems
• Works with conventional CTs and VTs
• Supports applicable low-power instrument transformers
• Up to eight Sampled Value streams are available
• Flexible current and voltage combinations
• Can distribute the same measurements to several devices
• Suitable for new digital substations and retrofit projects
• Reduces long copper CT and VT cable runs
• Helps reduce secondary wiring and terminal connections
• Supports transformer process-data acquisition
• Receives temperature, pressure and tap-position signals
• Suitable for distributed busbar protection
• High-speed circuit-breaker trip contacts are available
• Optional arc protection provides fast fault clearing
• Can work as a fault recorder for process-bus systems
• Supports PRP and HSR communication redundancy
• IEEE 1588v2 PTP provides accurate sample timing
• Fibre-optic process-bus connections support long distances
• Modular hardware can be expanded according to the project
• Redundant auxiliary power supply is available
• Basic protection and supervision functions can be added
• PMU synchrophasor measurement is available
• Point-on-wave switching can be included
• DIGSI 5 supports engineering and commissioning
• Browser access simplifies record retrieval and diagnostics
• Conformal-coated boards suit harsh substation environments
• Role-based access supports secure device operation
• Suitable for centralised and distributed protection systems

Applications

Siemens SIPROTEC 6MU85 Merging Units are used in:

• IEC 61850 digital substations
• Process-bus substations
• Transmission substations
• High-voltage substations
• Extra-high-voltage substations
• Medium-voltage substations
• Transformer bays
• Three-winding transformer applications
• Autotransformer bays
• Transmission-line bays
• Busbar protection systems
• Distributed busbar protection
• Centralised protection systems
• Generator transformer systems
• Power-plant switchyards
• Thermal power stations
• Hydro power stations
• Renewable energy substations
• Solar power evacuation substations
• Wind-farm substations
• Utility grid interconnections
• Industrial substations
• Steel plants
• Cement plants
• Refineries
• Petrochemical facilities
• Oil and gas installations
• Mining power systems
• Railway power substations
• Marine and offshore substations
• Transformer monitoring systems
• Process-bus fault recording
• Arc-protection systems
• PMU and synchrophasor applications
• Digital-substation retrofit projects
• Replacement of existing merging units

Use in Digital Substation Projects

In a digital substation, protection and control devices exchange most process information through Ethernet rather than individual copper connections.

The Siemens 6MU85 can be installed close to:

• Current transformers
• Voltage transformers
• Circuit breakers
• Power transformers
• Busbars
• Switchgear bays

It converts local measurements and status signals into standard IEC 61850 information.

Protection relays in the control building receive these values through the fibre-optic process-bus network.

This can reduce:

• Copper cable quantities
• CT and VT marshalling
• Panel terminal blocks
• Cable trench loading
• Wiring errors
• Commissioning checks
• Future expansion work

The overall saving depends on the substation layout, number of bays and selected digital architecture.

Use in Substation Retrofit Projects

The Siemens 6MU85 can also be used where an existing conventional substation is being upgraded gradually.

A retrofit may begin with:

• New numerical protection relays
• New station-bus communication
• Process-bus installation for selected bays
• Replacement of copper CT and VT wiring
• Central fault-recording system
• Digital busbar protection
• Transformer monitoring

The 6MU85 can digitise signals from existing conventional instrument transformers while allowing the primary equipment to remain in service.

This provides a migration route toward a digital substation without replacing every primary asset at the same time.

The retrofit design must consider existing CT burdens, grounding, cable routing, redundancy, time synchronisation and protection testing.

Siemens 6MU85 and Protection Relay Difference

A protection relay analyses current and voltage measurements and trips the circuit breaker when it detects a fault.

The Siemens 6MU85 mainly collects and digitises the measurements before sending them to one or more protection relays.

The basic difference is:

• Siemens SIPROTEC 6MU85: Acquires, digitises and distributes process data
• Protection relay: Uses the data to detect faults and make a protection decision

The 6MU85 can include selected protection functions, but its main role remains process-bus data acquisition.

A digital transformer-protection system may use a 6MU85 near the transformer and a SIPROTEC 7UT85 or 7UT87 in the protection panel.

A distributed busbar-protection system may use several 6MU85 units at the bay level and a central SIPROTEC 7SS85 protection relay.

Siemens 6MU85 and Bay Controller Difference

A bay controller mainly operates circuit breakers, disconnectors and earthing switches while handling interlocking and SCADA communication.

The 6MU85 mainly deals with process measurements and digital data acquisition.

However, the 6MU85 can also include binary I/O, control logic and selected switching functions.

For some projects, it can combine:

• Merging-unit functions
• Bay-level data acquisition
• Local control
• Protection backup
• Fault recording
• Transformer monitoring

The correct architecture depends on whether the project uses separate protection and control devices or a more integrated design.

Selecting the Correct Siemens SIPROTEC 6MU85

The model name 6MU85 does not identify one fixed device.

The complete Siemens order code defines the input modules, process-bus ports, binary I/O, power supply, housing, communication and optional functions.

For an accurate quotation, provide:

• Complete Siemens 6MU85 order code
• Required quantity
• Destination country
• Substation single-line diagram
• Application type
• System voltage
• System frequency
• Conventional or non-conventional instrument transformers
• Number of current inputs
• Number of voltage inputs
• CT secondary rating
• VT secondary rating
• Low-power sensor type, where applicable
• Number of Sampled Value streams
• IEC 61850-9-2 or 9-2 LE requirement
• IEC 61869-9 requirement
• Process-bus redundancy requirement
• PRP or HSR requirement
• Fibre-optic distance
• Binary input quantity
• Binary output quantity
• High-speed trip-output requirement
• Transformer sensor inputs
• 4–20 mA input requirement
• PT100 input requirement
• Tap-changer position input
• Arc-protection requirement
• Fault-recording requirement
• PMU requirement
• Point-on-wave switching requirement
• Auxiliary supply voltage
• Standard or redundant power supply
• Housing and mounting type
• Display requirement
• Communication protocols
• Existing DIGSI 5 project file

For replacement enquiries, send the complete order code and clear photographs of the front, rear, terminals and installed modules.

Two 6MU85 devices may look similar but contain different analogue inputs, process-bus modules, output contacts and licensed functions.

Siemens SIPROTEC 6MU85 Replacement

For replacement of an existing Siemens 6MU85 Merging Unit, share:

• Full order code
• Serial number
• Firmware version
• DIGSI 5 configuration
• IEC 61850 system configuration files
• Existing Sampled Value stream details
• MAC addresses and network settings
• Process-bus module details
• CT and VT input information
• Binary I/O details
• Time-synchronisation arrangement
• Auxiliary supply voltage
• Required quantity
• Destination country

A replacement device must match both the physical hardware and the digital substation configuration.

Changing the Sampled Value stream, dataset, network address or timing arrangement may affect every protection device receiving data from the merging unit.

The replacement should therefore be reviewed by the protection and IEC 61850 engineering team before ordering.

Siemens SIPROTEC 6MU85 Supplier and Exporter in India

ARP IMPEX supplies Siemens SIPROTEC 6MU85 Merging Units for utilities, transmission substations, power plants, EPC contractors, panel builders, protection engineers, system integrators and industrial buyers.

We handle enquiries for Siemens 6MU85 IEC 61850 merging units, process-bus data-acquisition devices, transformer merging units, distributed busbar-protection bay units, digital-substation fault recorders and replacement of existing Siemens 6MU85 devices.

Buyers looking for Siemens SIPROTEC 6MU85 price in India, Siemens merging unit supplier, IEC 61850 process-bus device exporter from India or Siemens 6MU85 replacement can send the complete order code for review.

The Siemens 6MU85 price depends on the selected CT and VT inputs, Sampled Value streams, process-bus modules, binary I/O, power supply, housing, communication interfaces and optional functions.

Send the complete Siemens order code, required quantity and destination country for price, availability and export quotation.
