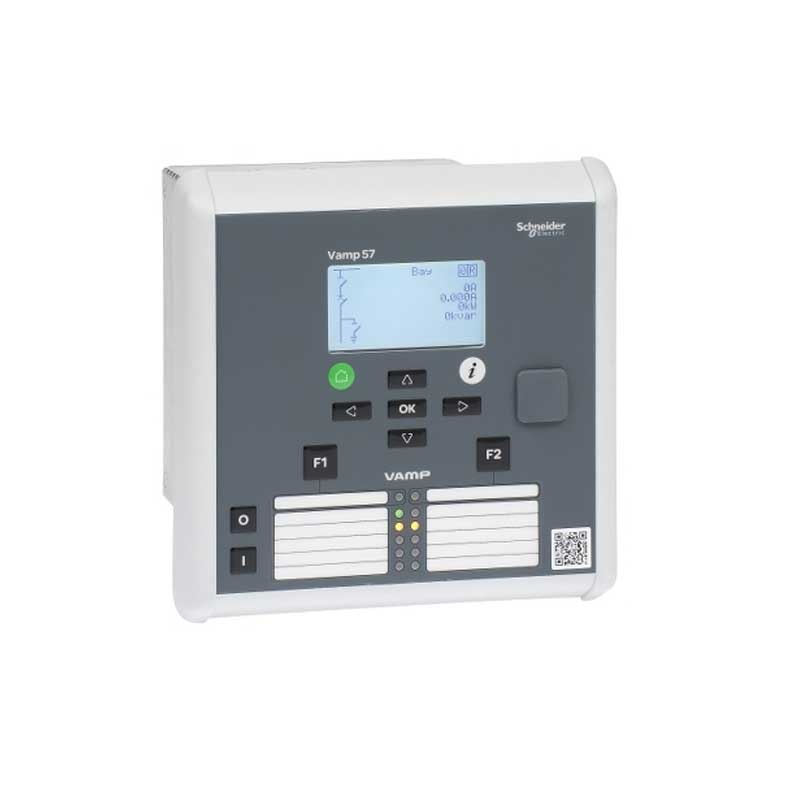

Schneider VAMP 57 PowerLogic Intelligent Protection Relay
Schneider VAMP 57 PowerLogic Intelligent Protection Relay is a multifunction numerical relay developed for protecting and controlling low- and medium-voltage power systems. It can be configured for feeder, motor, voltage, and general distribution protection, making it suitable for a wide range of industrial and utility applications.
The relay combines protection, control, metering, and monitoring functions in a single device, helping reduce the number of individual components required in a switchgear panel. It measures key electrical parameters such as current, voltage, frequency, harmonics, and current imbalance, giving operators a clear view of system performance.
VAMP 57 is built on Schneider Electric’s proven VAMP protection platform and supports modern communication standards for easy integration with SCADA and substation automation systems. Its intuitive display, programmable function keys, and VAMPSET configuration software make commissioning and day-to-day operation straightforward.
Specifications
- Product Name: Schneider VAMP 57
- Product Family: PowerLogic™
- Relay Type: Intelligent Protection Relay
- Protection Type: Feeder, Motor, Voltage and Distribution Protection
- System Voltage: Low Voltage (LV) and Medium Voltage (MV)
- Measurements: Current, Voltage, Frequency, Harmonics, Current Imbalance and Residual Current
- Communication: IEC 61850, Modbus, IEC 60870-5-103, DNP3 and other industry-standard protocols
- Communication Ports: Ethernet or RS485 (depending on configuration)
- Configuration Software: VAMPSET
- USB Interface: Type-B USB
- Display: Multi-line LCD with alarms, events and single-line mimic
- Control Functions: Circuit Breaker ON/OFF Control and Programmable Logic
- Installation: Industrial switchgear and utility substations
Features
- Multifunction relay for feeder, motor and voltage protection
- Suitable for both low- and medium-voltage distribution systems
- Built-in protection, control, metering and monitoring functions
- Measures voltage, current, frequency, harmonics and current imbalance
- Supports IEC 61850 and other standard communication protocols
- Ethernet and RS485 communication options
- Large LCD display with alarm, event and single-line mimic indication
- Programmable LEDs and function keys for faster operation
- Circuit breaker control from the relay front panel
- Easy configuration using free VAMPSET software
- Reliable operation in demanding industrial environments
- Common firmware platform shared with other VAMP protection relays
Applications
- Low-voltage distribution systems
- Medium-voltage distribution networks
- Industrial feeders
- Utility distribution feeders
- Asynchronous motor protection
- Motor control centres (MCC)
- Power distribution switchgear
- Substations
- Capacitor bank protection
- Voltage and frequency monitoring
- Renewable energy distribution systems
- Water treatment plants
- Mining, cement, steel and process industries
