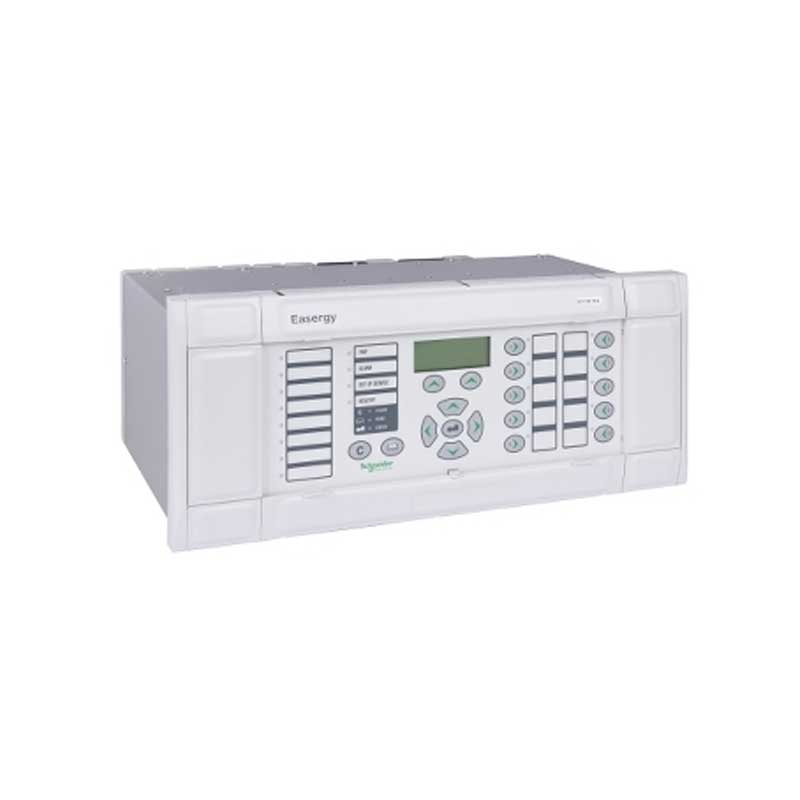

Schneider Electric Easergy MiCOM P841 Multifunction Line Terminal Protection and Control IED

Schneider Electric Easergy MiCOM P841 Multifunction Line Terminal Protection and Control IED is designed for protection, control and monitoring of transmission and sub-transmission feeder bays. It combines backup protection, circuit breaker control, auto-reclose functions and bay management in a single intelligent electronic device, reducing the need for multiple standalone relays.

The MiCOM P841 is available in two models to suit different substation configurations. Model A is intended for single circuit breaker applications, while Model B supports dual breaker arrangements such as ring bus, mesh corner and breaker-and-a-half schemes. Both models provide flexible auto-reclose, synchronism check and circuit breaker failure protection for dependable feeder operation.

Built on the Easergy MiCOM platform, the relay supports IEC 61850 communication, programmable logic, event recording and SCADA integration. Its flexible configuration and extensive I/O capabilities make it suitable for modern digital substations as well as transmission system upgrades.

Specifications

• Manufacturer: Schneider Electric
• Product Family: Easergy MiCOM
• Model: MiCOM P841
• Relay Type: Multifunction Line Terminal Protection and Control IED
• Protection Application: Transmission and sub-transmission feeder bays
• Auto-Reclose: Single-pole and three-pole auto-reclose
• Synchronism Check: Supported
• Circuit Breaker Failure Protection: One or two circuit breakers
• Directional Overcurrent Protection: Supported
• Earth Fault Protection: Supported
• Voltage Protection: Supported
• Frequency Protection: Supported
• Trip Circuit Supervision: Supported
• Event Recording: Supported
• Disturbance Recording: Supported
• Communication Interfaces: Ethernet and Serial
• Communication Protocols: IEC 61850, Modbus, DNP3 and other standard SCADA protocols
• Ethernet Redundancy: PRP, HSR and RSTP
• Time Synchronisation: Universal IRIG-B
• Integration: SCADA and digital substation compatible

Available Models:

• Model A – Single breaker applications (16 digital inputs, 14 digital outputs)
• Model B – Dual breaker applications (24 digital inputs, 32 digital outputs)

Features

• Multifunction IED for feeder protection and bay control.
• Supports single and dual circuit breaker applications.
• Single-pole and three-pole auto-reclose functions.
• Integrated synchronism check for secure breaker closing.
• High-speed circuit breaker failure protection.
• Directional overcurrent, earth fault, voltage and frequency protection.
• Programmable logic for customised protection and control schemes.
• Trip circuit supervision and breaker condition monitoring.
• IEC 61850 communication with redundant Ethernet support.
• Event and disturbance recording for fault analysis and maintenance.

Applications

• Transmission substations
• Sub-transmission substations
• Feeder protection
• Line terminal control
• Ring bus substations
• Breaker-and-a-half substations
• Mesh corner substations
• Utility power networks
• Industrial power systems
• Digital substations

Schneider Electric Easergy MiCOM P841 Multifunction Line Terminal Protection and Control IED combines feeder protection, breaker control and advanced communication in a single device. Its flexible design, comprehensive protection functions and support for modern substation automation make it a dependable solution for transmission and sub-transmission applications.
