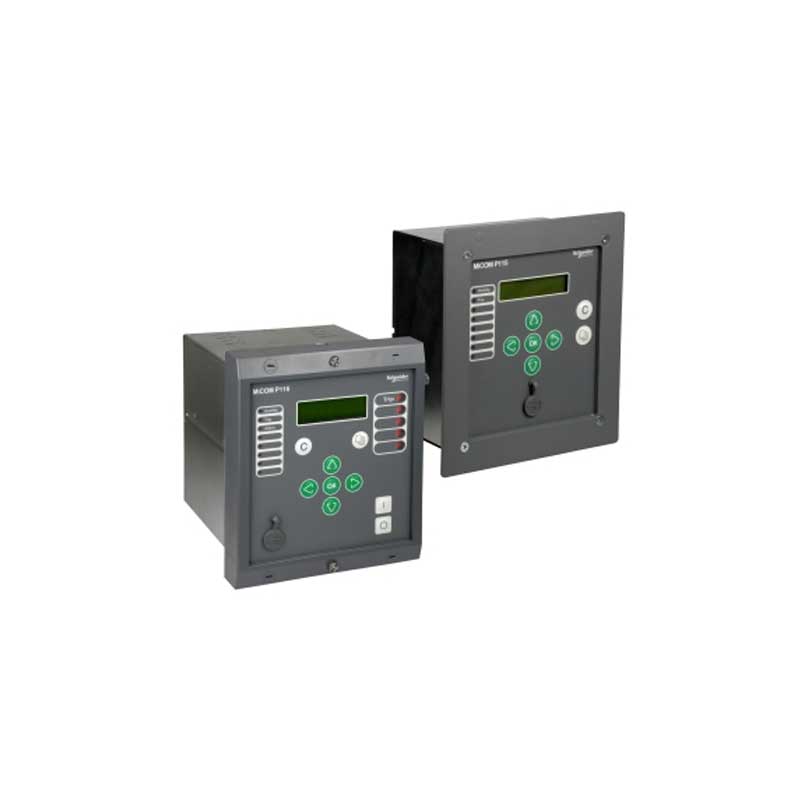

Schneider Electric PowerLogic™ MiCOM P116 Feeder Protection Relay

Schneider Electric PowerLogic™ MiCOM P116 Feeder Protection Relay combines feeder protection, control, and monitoring functions for medium-voltage distribution systems. The relay helps operators manage feeder circuits by detecting faults quickly and isolating affected sections before they impact the wider network.

Unlike basic overcurrent relays, the MiCOM P116 adds directional protection capabilities that help determine the direction of fault currents. This feature becomes particularly valuable in interconnected distribution networks, ring main systems, and installations where multiple power sources can contribute to a fault.

The relay continuously monitors feeder conditions and records important fault and event information. Maintenance teams can use this data to investigate disturbances, improve system performance, and reduce downtime. Its compact design allows easy installation in switchgear panels, substations, and industrial power distribution systems.

Specifications

• Manufacturer: Schneider Electric
• Product Family: PowerLogic™ MiCOM
• Model: P116
• Relay Type: Numerical Feeder Protection Relay
• Protection Application: Feeder Protection
• Protection Functions: Overcurrent Protection, Earth Fault Protection, Directional Overcurrent Protection and Directional Earth Fault Protection
• Technology: Digital / Numerical Relay
• Event Recording: Yes
• Fault Recording: Yes
• Installation: Medium Voltage Switchgear and Protection Panels
• Communication: Available depending on relay configuration
• Monitoring Functions: Feeder Measurement and Fault Analysis

Features

• Overcurrent and earth fault protection.
• Directional protection for improved fault discrimination.
• Supports protection coordination in complex distribution networks.
• Event and disturbance recording functions.
• Continuous feeder monitoring capabilities.
• Compact relay design for panel installations.
• Supports remote monitoring through communication options.
• Suitable for utility and industrial power systems.

Applications

• Distribution Feeders
• Utility Substations
• Ring Main Units (RMUs)
• Medium Voltage Switchgear
• Industrial Power Distribution Systems
• Renewable Energy Networks
• Infrastructure Projects
• Electrical Protection Panels

Schneider Electric PowerLogic™ MiCOM P116 Feeder Protection Relay supports reliable feeder operation in networks where directional fault detection and protection coordination play an important role.
