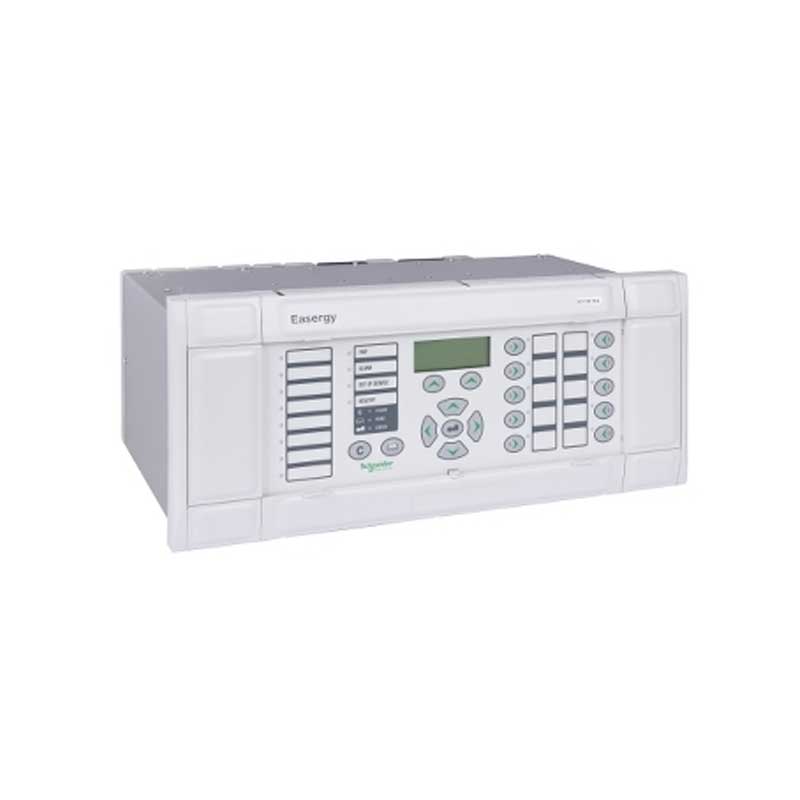

Schneider Electric Easergy MiCOM P740 Numerical Busbar Protection Relay

Schneider Electric Easergy MiCOM P740 Numerical Busbar Protection Relay is designed to provide fast, secure and reliable protection for busbar systems used in utility and industrial substations. It delivers high-speed differential protection for busbars across low, medium, high, extra-high and ultra-high voltage networks, helping minimize equipment damage and maintain system stability during fault conditions.

The MiCOM P740 is built to support a wide range of busbar configurations and can be adapted to both centralized and distributed protection architectures. Its advanced differential protection algorithms, combined with current transformer saturation detection and dynamic topology processing, allow the relay to detect internal busbar faults quickly while maintaining stability during external faults.

Designed for modern substations, the MiCOM P740 supports IEC 61850 communication and integrates easily with SCADA and substation automation systems. The use of high-speed fibre optic communication between central and peripheral units simplifies installation, improves reliability and allows future system expansion without major modifications.

Specifications

• Manufacturer: Schneider Electric
• Product Family: Easergy MiCOM
• Model: MiCOM P740
• Relay Type: Numerical Busbar Protection Relay
• Protection Application: Busbar differential protection
• Suitable For: LV, MV, HV, EHV and UHV substations
• Main Protection: High-speed busbar differential protection
• Operating Time: Typically 11–15 ms
• Current Transformer Compatibility: Supports multiple CT types
• Architecture: Centralized or distributed protection scheme
• Topology Processing: Dynamic busbar topology processing
• CT Saturation Detection: Supported
• Communication Between Units: High-speed fibre optic communication
• Event Recording: Supported
• Disturbance Recording: Supported
• Communication Interfaces: Serial and Ethernet
• Communication Protocols: IEC 61850-8-1 and IEC 60870-5-103
• Integration: SCADA and digital substation compatible

Features

• Numerical relay designed for busbar differential protection.
• High-speed fault detection with operating time as low as 11–15 ms.
• Supports centralized and distributed protection architectures.
• Advanced CT saturation detection improves protection stability.
• Dynamic topology processing adapts to changing busbar configurations.
• Compatible with various current transformer types.
• High-speed fibre optic communication between central and peripheral units.
• IEC 61850 communication for digital substation integration.
• Event and disturbance recording assist fault analysis and maintenance.
• Flexible design allows future substation expansion.

Applications

• Busbar protection
• Utility substations
• Industrial substations
• High-voltage substations
• Extra-high-voltage substations
• Ultra-high-voltage transmission systems
• Power generation plants
• Distribution substations
• Digital substations

Schneider Electric Easergy MiCOM P740 Numerical Busbar Protection Relay combines fast differential protection, flexible system architecture and advanced communication capabilities, making it a dependable solution for protecting critical busbar installations across modern power networks.
