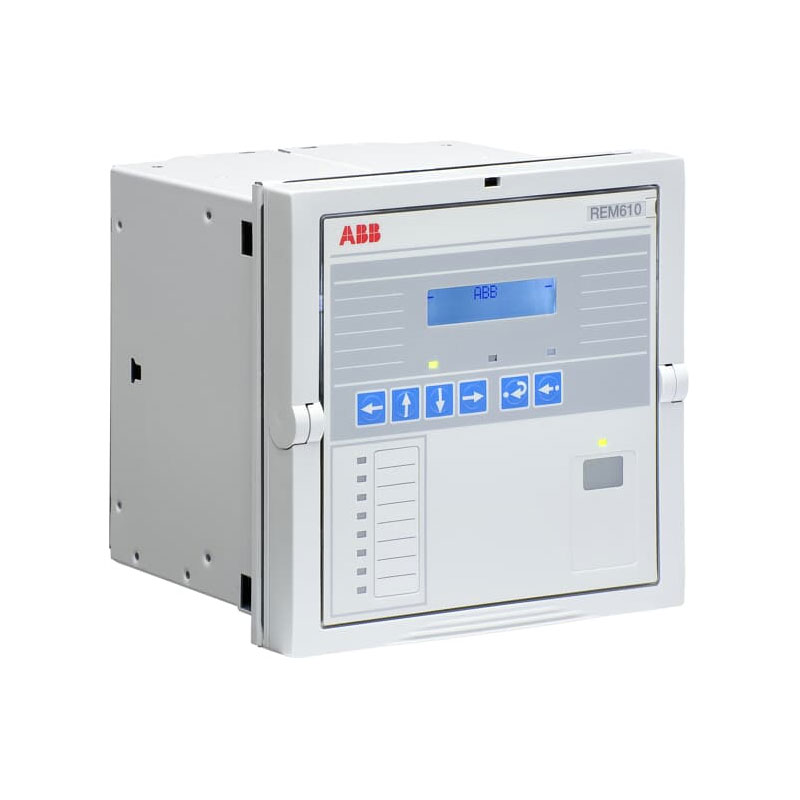

ABB REM610 Motor Protection Relay
ABB REM610 Motor Protection Relay Supplier and Exporter in India
ABB REM610 Legacy Spare, Replacement and REX615 Retrofit Enquiries
ABB REM610 is a legacy motor protection relay used for protection, measurement and supervision of asynchronous motors. For price and availability, send the complete REM610 order code, nameplate, quantity and destination country.
Description
ARP IMPEX supplies and exports ABB REM610 motor protection relays for industrial motor protection, existing switchgear and replacement requirements.
REM610 is part of ABB’s Relion 610 series and was developed mainly for protection of medium-sized and large asynchronous low-voltage motors and small to medium-sized asynchronous high-voltage motors. It can be used with both circuit-breaker-controlled and contactor-controlled motor drives.
The relay monitors motor conditions during starting, normal running, idling and cooling after shutdown. Its main functions include thermal overload protection, motor start supervision, stall protection, phase-unbalance protection, earth-fault protection, loss-of-load protection and restart supervision.
An optional RTD module allows direct temperature measurement from motor windings and bearings. ABB also documents REM610 for certain cable-feeder, distribution-transformer and small asynchronous generator applications where the available thermal, overcurrent and earth-fault functions suit the protection scheme.
For ABB REM610 price, replacement or legacy spare availability, send us the complete ABB part number and a clear photograph of the relay nameplate.
Technical Specifications
- Brand: ABB
- Product family: Relion
- Series: 610 Series
- Model: REM610
- Product type: Motor protection relay
- Product status: Not active since 2017
- Main application: Asynchronous motor protection
- Motor thermal overload protection: Available
- Motor start supervision: Available
- Running stall protection: Available
- Phase-unbalance protection: Negative phase-sequence based
- Phase reversal protection: Available
- Undercurrent / loss-of-load protection: Available
- Earth-fault protection: Non-directional
- Circuit-breaker failure protection: Available
- Trip-circuit supervision: Available
- RTD / thermistor measurement: Optional
- Communication: IEC 61850, IEC 60870-5-103, Modbus, Profibus, SPA and LON
The complete REM610 order code should be checked when sourcing a matching unit because the installed communication and optional measurement arrangement can vary.
Features
- Thermal overload protection for motors
- Motor start-up supervision
- Running stall protection
- Phase-unbalance protection
- Phase reversal protection
- Earth-fault protection
- Loss-of-load supervision
- Restart inhibit function
- Circuit-breaker failure protection
- Trip-circuit supervision
- Disturbance recording
- Optional RTD and thermistor temperature inputs
- Plug-in relay construction
- Communication with plant or substation control systems
REM610 can also directly measure motor temperature through the optional module, with support for six RTD and two thermistor inputs.
Applications
ABB REM610 can be used for:
- Medium-sized asynchronous LV motors
- Large asynchronous LV motors
- Small asynchronous HV motors
- Medium-sized asynchronous HV motors
- Pump motors
- Fan motors
- Compressor motors
- Mill motors
- Crusher motors
- Process-industry motor drives
- Circuit-breaker-controlled motors
- Contactor-controlled motors
- Small asynchronous generators
- Selected cable-feeder protection
- Distribution-transformer protection
- Marine and offshore motor applications
ABB specifically documents REM610 for applications such as pumps, fans, mills and crushers, and also confirms its suitability for marine and offshore environments.
ABB Relion 610 Series
REM610 belongs to ABB’s 610 series, which includes three main protection relays:
ABB REF610
A feeder protection relay used for incoming and outgoing feeder protection.
ABB REM610
A motor protection relay for asynchronous LV and HV motors, with thermal, starting, stall, unbalance and earth-fault protection.
ABB REU610
A voltage protection relay used for general system voltage supervision.
The three models share the same 610-series platform but are intended for different protection duties.
ABB REM610 Replacement and REX615 Retrofit
ABB includes REM610 in its official Relay Retrofit Program for REF610, REM610 and REU610 to REX615. The retrofit program uses REX615 together with the required connectors and wiring arrangements for supported 610-series installations.
This can be relevant where an installed REM610 is being replaced as part of a motor-protection panel upgrade.
For an initial ABB REM610 replacement or REX615 retrofit enquiry, please send:
- Complete ABB REM610 order code
- Clear relay nameplate photograph
- Quantity
- Destination country
- Required delivery date
Additional motor and panel details can be checked later if required for the retrofit.
Why Buy ABB REM610 from ARP IMPEX?
ARP IMPEX supplies ABB protection relays for industrial plants, utilities, EPC contractors, OEMs, panel builders, maintenance companies and electrical traders.
We can assist with:
- ABB REM610 part-code checking
- Existing relay identification
- Legacy spare availability
- REM610 replacement enquiries
- REM610 to REX615 retrofit enquiries
- Single and multiple quantities
- ABB technical documentation
- Export packing
- International shipping
Request a Quote for ABB REM610
For ABB REM610 price and availability, send:
- Complete REM610 part/order number
- Clear nameplate photograph
- Quantity required
- Destination country
- Required delivery date
If the complete code is not readable, send clear photographs of the relay front and nameplate.
Send your ABB REM610 part code, quantity and destination country to ARP IMPEX for price, availability and export quotation.
