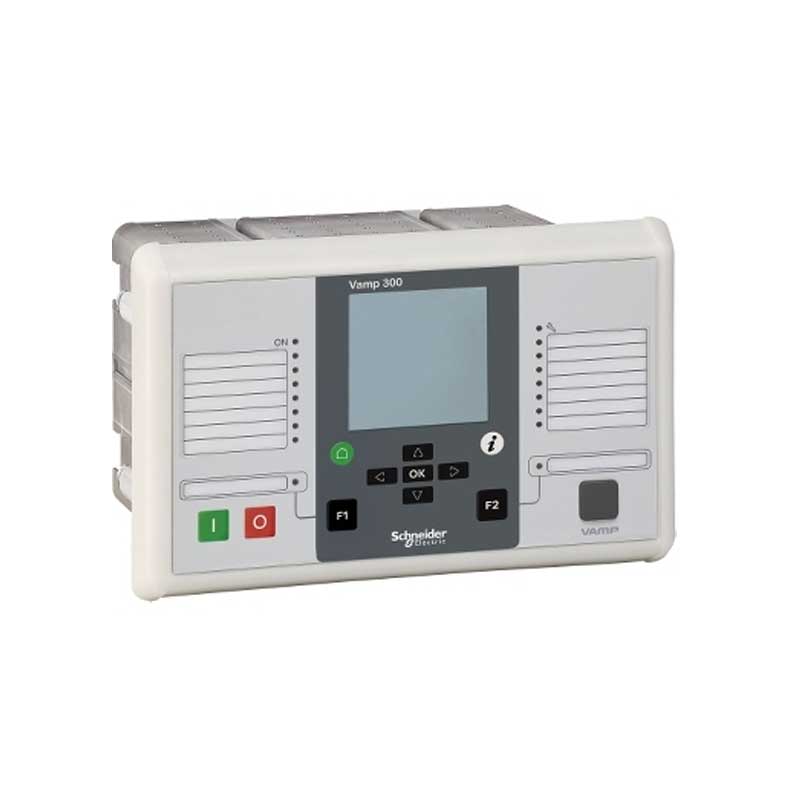

Schneider VAMP 300F PowerLogic Feeder Protection and Control Relay
Schneider VAMP 300F PowerLogic Feeder Protection and Control Relay Suppliers,Exporters in India
Schneider VAMP 300F PowerLogic Feeder Protection and Control Relay is a multifunction numerical relay designed for the protection, control, and monitoring of distribution feeders in low- and medium-voltage power systems. It is suitable for overhead lines, underground cable feeders, and busbar applications across utility, industrial, marine, and power generation installations.
The relay combines feeder protection, bay control, metering, power quality monitoring, and communication functions in a single platform. It provides detailed electrical measurements, fault recording, and disturbance analysis to help operators monitor network performance and respond quickly to abnormal conditions.
VAMP 300F is fully compatible with Schneider Electric’s VAMP arc flash protection system and supports optional arc protection for improved personnel and equipment safety. With built-in Ethernet communication, IEC 61850 support, and a wide choice of communication protocols, the relay integrates easily into modern SCADA and substation automation systems.
Specifications
- Product Name: Schneider VAMP 300F
- Product Family: PowerLogic™
- Product Series: VAMP 300 Series
- Relay Type: Feeder Protection and Control Relay
- Application: Distribution Feeders, Overhead Lines, Underground Cables and Busbars
- Protection Functions: Overcurrent, Earth Fault, Overvoltage, Undervoltage and Frequency Protection
- Measurements: Current, Voltage, Frequency, Active Power, Reactive Power, Energy, Harmonics and THD
- Power Quality Monitoring: Harmonics up to the 15th order, Voltage Sag and Swell Monitoring
- Bay Control: Local and Remote Control of up to 6 Switching Devices
- Event Recording: Up to 2,000 event records
- Disturbance Recorder: Built-in
- Arc Protection: Optional with support for point sensors and fibre loop sensors
- Communication: IEC 61850, Modbus TCP, Modbus RTU, DNP3, IEC 60870-5-101, IEC 60870-5-103, Profibus DP and SPA-bus
- Ethernet Interface: Built-in
- Configuration Software: VAMPSET
- USB Interface: Type-B USB
Features
- Complete feeder protection and bay control
- Suitable for overhead lines, underground cables and busbars
- Overcurrent, earth fault, voltage and frequency protection
- Built-in power quality analysis
- Harmonic monitoring up to the 15th order
- Voltage sag and swell monitoring
- Active, reactive and energy measurements
- Local and remote circuit breaker control
- Optional ultra-fast arc flash protection
- Supports point sensors and fibre loop arc detection
- Built-in disturbance recorder and fault recording
- Stores up to 2,000 event records
- Wide range of industrial communication protocols
- Native IEC 61850 support for SCADA integration
- Easy configuration using VAMPSET software
Applications
- Utility distribution substations
- Industrial power distribution systems
- Overhead distribution feeders
- Underground cable feeders
- Busbar protection applications
- Power generation plants
- Marine and offshore installations
- Mining operations
- Oil and gas facilities
- Water and wastewater treatment plants
- Infrastructure and commercial power networks
- Electrical retrofit and modernization projects
