ABB REF630 is a feeder protection and control relay for overhead lines, cable feeders and feeder bay applications. For price and availability, send the complete order code, relay nameplate, quantity and destination country.

Description

ARP IMPEX supplies and exports ABB REF630 feeder protection and control relays for utilities, industrial distribution systems, substations and existing Relion 630-series installations.

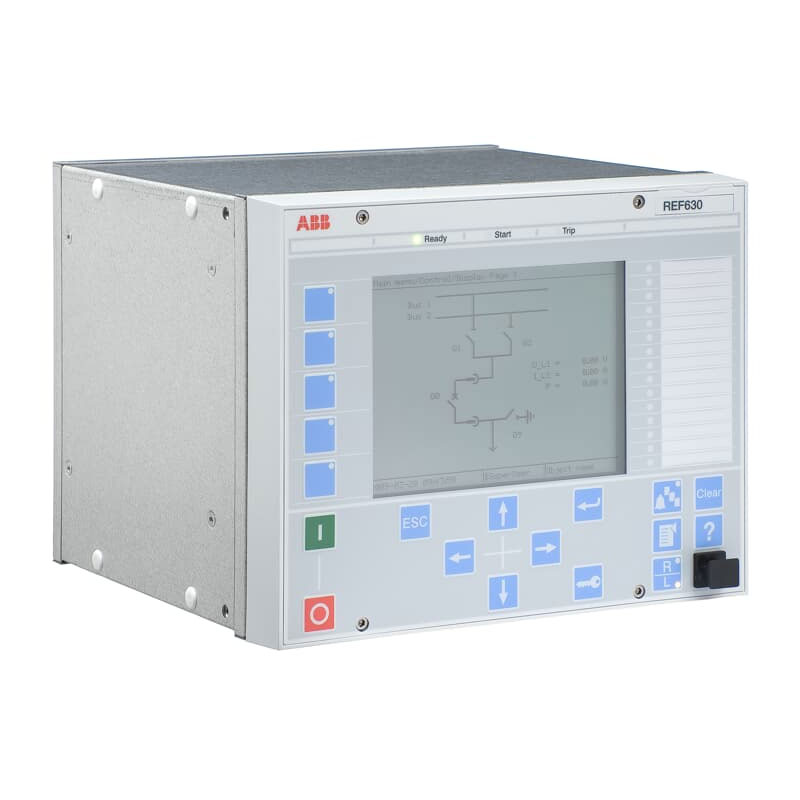

REF630 is part of ABB’s Relion 630 series. It was developed for protection, control, measurement and supervision of distribution feeders and can be used on radial, looped and meshed networks, including networks with distributed generation. It can also handle feeder bay control from the same relay.

REF630 covers phase overcurrent, directional overcurrent and several earth-fault protection methods. Depending on the configuration, it can also provide voltage protection, autoreclosing, synchro-check, breaker failure protection, fault location and power-quality monitoring. ABB gave particular attention to earth-fault protection in the 630 series, including directional, intermittent/transient, admittance-based and multi-frequency admittance-based functions.

The relay was supplied with several predefined feeder configurations, so the exact REF630 version and order code are important when checking an existing unit.

For ABB REF630 price, spare availability or replacement enquiries, send us the complete part number and a clear nameplate photograph.

Technical Specifications

• Brand: ABB
• Product family: Relion
• Series: 630 Series
• Model: REF630
• Product type: Feeder protection and control relay
• Product status: Not active since 2024
• Main use: Overhead line and cable feeder protection
• Network types: Radial, ring and meshed distribution systems
• Phase overcurrent protection: Available
• Directional overcurrent protection: Available
• Earth-fault protection: Multiple directional and sensitive methods available
• Automatic reclosing: Available
• Synchro-check: Available
• Circuit-breaker failure protection: Available
• Fault location: Available
• Power-quality monitoring: Available
• Communication: IEC 61850 and other supported substation protocols
• Engineering tool: ABB PCM600

The fitted functions and I/O arrangement depend on the ordered REF630 configuration.

Features

• Feeder overcurrent and short-circuit protection
• Directional feeder protection
• Sensitive earth-fault protection
• Intermittent and transient earth-fault detection
• Admittance-based earth-fault protection
• Automatic circuit-breaker reclosing
• Fault location
• Feeder bay control
• Circuit-breaker and disconnector supervision
• Voltage and frequency protection
• Disturbance recording
• Power-quality monitoring
• Graphical local HMI
• IEC 61850 communication
• GOOSE messaging for protection and interlocking

REF630 also supports a large graphical display with configurable single-line diagrams, allowing breaker, disconnector and earthing-switch status to be shown locally.

Applications

ABB REF630 is used for:

• Medium-voltage feeder protection
• Overhead distribution lines
• Cable feeder protection
• Radial distribution feeders
• Ring-main networks
• Meshed distribution systems
• Incoming feeder protection
• Outgoing feeder protection
• Utility substations
• Industrial power distribution
• Networks with distributed generation
• Feeder bay control
• Directional earth-fault protection
• Compensated and isolated networks
• Circuit-breaker autoreclosing
• Fault-location applications

ABB identifies REF630 as the main protection for overhead lines and cable feeders in utility and industrial distribution systems.

ABB REF630 Preconfigurations

REF630 was available with predefined application configurations that could be further adapted through PCM600.

REF630 Configuration A – Ring Feeder

Used for open or closed ring feeder applications.

REF630 Configuration B – Radial / Mixed Line Feeder

Intended for radial overhead lines and mixed overhead/cable feeders.

REF630 Configuration C – Ring / Meshed Feeder

Used where the distribution system has ring or meshed network arrangements.

REF630 Configuration D – Bus Sectionalizer

Intended for bus-section protection and control. ABB also offered an option without a predefined application configuration for projects requiring a more customised setup.

For a matching REF630 requirement, send the complete ABB order code because the preconfiguration, analogue inputs and binary I/O are identified through the ordered variant.

ABB Relion 630 Series

The ABB 630 protection and control series covers four main relay types:

• ABB REF630 – Feeder protection and control
• ABB REM630 – Motor protection and control
• ABB RET630 – Transformer protection and control
• ABB REG630 – Generator protection and control

Although they share the same 630-series platform, each relay is built around a different primary protection application.

ABB REF630 Replacement

ABB’s lifecycle notice identifies REX640 as the replacement product for REF630 versions 1.1, 1.2 and 1.3. ABB also notes that other Relion products may be considered depending on the application.

For an existing REF630 requirement, please send:

• Complete ABB REF630 order code
• Relay version, if available
• Clear nameplate photograph
• Quantity
• Destination country
• Required delivery date

For replacement projects, the existing protection configuration and I/O details may also be required after the installed relay has been identified.

Why Buy ABB REF630 from ARP IMPEX?

ARP IMPEX supports ABB relay enquiries from utilities, EPC contractors, industrial plants, power companies, panel builders and electrical traders.

We can assist with:

• ABB REF630 part-code checking
• Existing relay identification
• REF630 legacy spare enquiries
• Version and configuration checking
• Single and multiple quantities
• ABB technical documentation
• Export packing
• International shipping

Request a Quote for ABB REF630

For ABB REF630 price and availability, send:

• Complete REF630 part/order number
• Clear relay nameplate photograph
• Quantity required
• Destination country
• Required delivery date

If the full code cannot be read, send clear photographs of the relay front and nameplate.

Send your ABB REF630 part code, quantity and destination country to ARP IMPEX for availability and export quotation.
