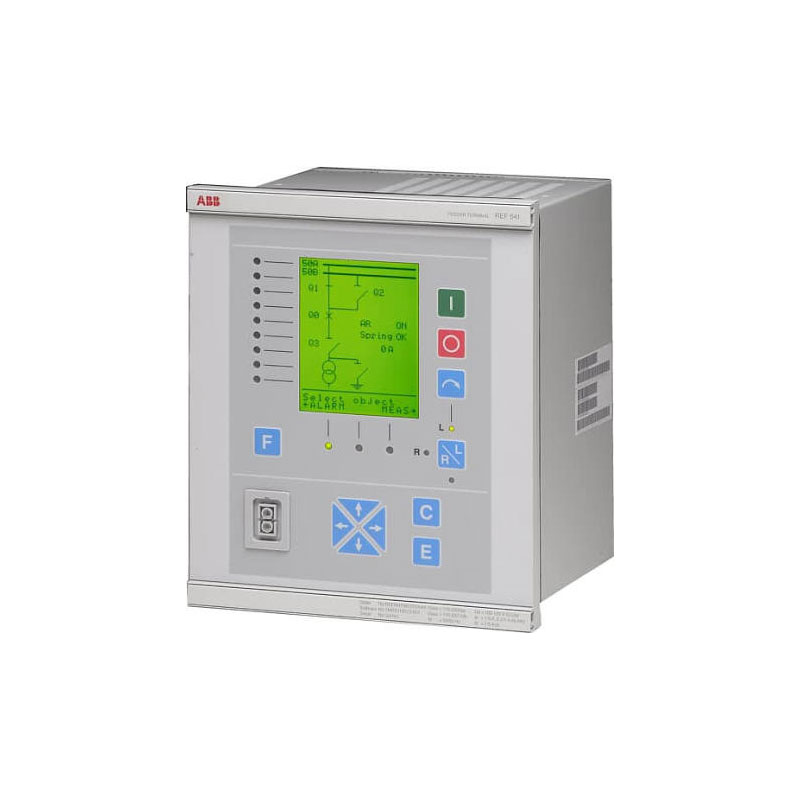

ABB REF541 Feeder Terminal

ABB REF541 Feeder Terminal Supplier and Exporter in India

ABB REF541 Legacy Spare, Replacement and Modernisation Support

ABB REF541 is a legacy feeder terminal, and ABB lists the product as not active since 2022. For an existing unit, the complete order code, product revision and nameplate details should be checked before selecting a replacement or modernisation option.

Description

ARP IMPEX supplies and exports ABB REF541 feeder terminals for medium-voltage protection and control requirements.

REF541 is part of ABB’s REF54x feeder terminal family and combines feeder protection, breaker control, measurement, supervision and communication in a single unit. It was used with different medium-voltage switchgear arrangements, including single-busbar, double-busbar and duplex systems.

Depending on the original configuration, REF541 can handle overcurrent and earth-fault protection together with voltage supervision, breaker control, measurements, condition monitoring and other feeder-level functions. Its programmable logic also allows switching sequences and interlocking functions to be incorporated into the terminal.

ABB lists REF541 as not active since 2022. ARP IMPEX can assist with REF541 part-code checking, legacy spare enquiries and export supply. If the requirement is for modernisation rather than an identical unit, the existing terminal configuration and switchgear details should first be reviewed.

For ABB REF541 price and availability, send us the complete order code, clear nameplate photograph, quantity and destination country.

Technical Specifications

• Brand: ABB
• Product family: REF54x / RE500
• Model: REF541
• Product type: Feeder protection and control terminal
• Product status: Not active since 2022
• Application: Medium-voltage feeder protection and control
• Digital inputs: 15
• Trip circuit supervision inputs: 2
• Protection: Overcurrent, earth fault and other functions depending on configuration
• Control: Circuit-breaker and switching-device control
• Measurement: Electrical measurement functions available
• Condition monitoring: Available
• Disturbance recording: Available depending on configuration
• Communication: SPA, LON, IEC 60870-5-103 and other communication options depending on installed interface
• IEC 61850: Supported through applicable external communication arrangements
• HMI: Local display for operating information, measurements and control

The exact REF541 functions should be confirmed from the installed unit because ABB supplied different functionality levels and configurations.

Features

• Feeder overcurrent protection
• Earth-fault protection
• Circuit-breaker control
• Local and remote operation
• Current and voltage measurement
• Trip circuit supervision
• Breaker condition monitoring
• Fault and disturbance information
• Programmable feeder interlocking
• Local graphical display
• Communication with substation automation systems
• Internal self-supervision

REF541 is more than a basic protection relay. Its combination of protection, control, measurement and supervision is why ABB refers to it as a feeder terminal.

Applications

ABB REF541 can be used for:

• Medium-voltage feeder protection
• Incoming feeder panels
• Outgoing feeder panels
• Cable feeder protection
• Utility distribution substations
• Industrial power distribution
• Single-busbar switchgear
• Double-busbar switchgear
• Duplex switchgear
• Isolated-neutral networks
• Resonant-earthed networks
• Partially earthed networks
• Medium-sized motor applications
• Shunt capacitor-bank protection and control
• Substation automation systems

ABB specifically documents REF541 for different switchgear and network arrangements and also extends its application to medium-sized asynchronous motors and shunt capacitor banks.

ABB REF54x Feeder Terminal Family

ABB’s REF54x family consists mainly of REF541, REF543 and REF545. They share the same general feeder-terminal concept but differ primarily in their input/output capacity.

ABB REF541

REF541 is the smaller I/O version of the family with 15 digital inputs.

ABB REF543

REF543 provides 25 digital inputs and additional output capacity for applications requiring more control and indication points.

ABB REF545

REF545 provides 34 digital inputs and the largest I/O capacity of the three models.
REF541, REF543 and REF545 should not be considered interchangeable only because they belong to the same family. I/O requirements, application configuration, communication and the existing panel arrangement should be checked.

ABB REF541 Replacement and Modernisation

ABB REF541 is a legacy product, so an existing unit should first be identified from its complete order code, revision and configuration before deciding how to proceed.

For a REF541 requirement, ARP IMPEX can assist with:

• REF541 legacy spare enquiries
• Part-code and nameplate checking
• Existing REF54x model identification
• REF541 / REF543 / REF545 requirements
• Replacement enquiries
• Modernization enquiries
• Technical documentation
• Export quotations

ABB’s current system-retrofit information includes REF541, REF543 and REF545 among legacy products that can be migrated toward newer Relion solutions such as REX610, RE_615, RE_620 or REX640. However, ABB makes it clear that these migrations are site-specific and require review of existing switchgear drawings, mounting, I/O, application and parameter settings.

Why Buy ABB REF541 from ARP IMPEX?

ARP IMPEX supplies ABB protection and control products for international requirements.

We can assist with:

• ABB REF541 part-code checking
• Product revision identification
• Nameplate matching
• Legacy spare enquiries
• REF541 replacement requirements
• REF541 / REF543 / REF545 enquiries
• Single and multiple quantities
• Export packing
• International shipping support

We work with RFQs from utilities, EPC contractors, power plants, industrial companies, panel builders, maintenance contractors and electrical traders.

Request a Quote for ABB REF541

For ABB REF541 price and availability, please send:

• Complete ABB REF541 order code
• Clear nameplate photograph
• Product revision, if available
• Quantity
• Destination country
• Required delivery date

For modernisation, configuration files or existing panel drawings may be requested after the installed REF541 has been identified.

Send your ABB REF541 part code, quantity and destination country to ARP IMPEX for availability and export quotation.
