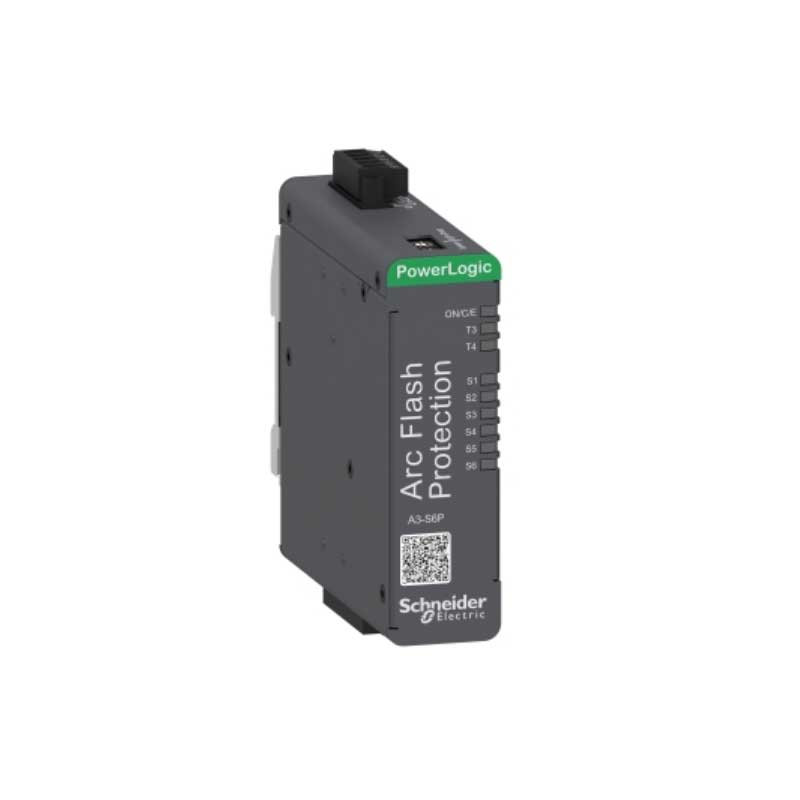

Schneider Electric PowerLogic™ A3-S6P Arc Flash Protection Extension Unit

The Schneider Electric PowerLogic™ A3-S6P Arc Flash Protection Extension Unit is designed to expand the protection capability of the PowerLogic™ A3 arc flash protection system. It works together with the A3-F series main units, adding additional optical sensor inputs for larger switchgear assemblies where wider arc flash coverage is required.

The A3-S6P supports up to six optical arc sensors, allowing extra protection zones to be added without replacing the existing protection system. It communicates directly with the A3-F main unit through the dedicated system bus and receives its operating power through the same connection, simplifying installation and reducing wiring requirements.

Its compact design, flexible mounting options and straightforward rotary switch configuration make the A3-S6P suitable for both new projects and retrofit applications. It is widely used in low and medium-voltage switchgear where scalable arc flash protection is needed across multiple cubicles or panel sections.

Specifications

• Manufacturer: Schneider Electric
• Product Family: PowerLogic™ A3
• Model: A3-S6P
• Product Type: Arc Flash Protection Extension Unit
• Compatible Main Units: PowerLogic™ A3-F6P and A3-F12P
• Protection Application: Low and Medium-Voltage Switchgear
• Arc Sensor Capacity: Up to 6 Optical Arc Sensors
• Protection Zones: Multi-Zone Arc Detection
• System Communication: PowerLogic™ A3 System Bus
• Power Supply: Powered by A3-F Main Unit through POE Connection
• High-Speed Trip Output: 1
• Configuration: Rotary Switches
• Mounting Options: DIN Rail or Flush Panel (Mounting Frame REL52902)
• Human Machine Interface: LED Status Indicators

Features

• Expands the protection capability of PowerLogic™ A3 systems.
• Supports up to six additional optical arc sensors.
• Designed for multi-zone arc flash protection.
• Powered directly by the A3-F main unit through POE.
• Simple bus connection reduces installation time.
• High-speed trip output for fast fault isolation.
• Rotary switch configuration for quick setup.
• DIN rail and flush panel mounting options.
• Compact design suitable for new and retrofit installations.
• Reliable operation in industrial and utility environments.

Applications

• Low-voltage switchboards
• Medium-voltage switchgear
• Multi-cubicle switchgear assemblies
• Utility substations
• Industrial power distribution systems
• Manufacturing facilities
• Mining operations
• Oil and gas installations
• Water and wastewater treatment plants
• Critical power infrastructure

The Schneider Electric PowerLogic™ A3-S6P Arc Flash Protection Extension Unit provides a simple way to increase the coverage of an existing PowerLogic™ A3 arc flash protection system. By adding more optical sensor inputs and protection zones, it helps improve the safety and reliability of larger electrical distribution installations.
