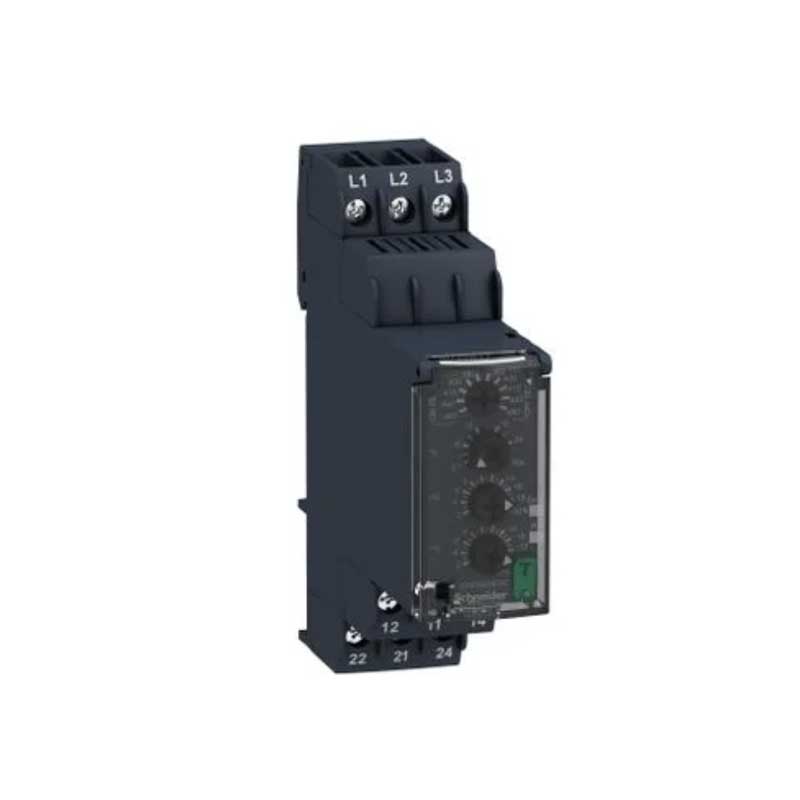

Schneider Harmony RM22 Series Monitoring Relays

Schneider Harmony RM22 Series Monitoring Relays Suppliers, Exporters in India

Schneider Harmony RM22 Series Monitoring Relays are multifunction electronic relays designed to continuously monitor critical electrical parameters in industrial power and control systems. They help protect equipment by detecting abnormal conditions such as phase failure, phase sequence reversal, overvoltage, undervoltage, overcurrent, undercurrent, and liquid level variations, depending on the model.

The RM22 Series is built for applications where reliable monitoring is essential for maintaining process continuity and protecting motors, pumps, compressors, and other electrical equipment. With adjustable settings and clear LED status indication, these relays allow users to configure monitoring thresholds according to the application while making fault diagnosis straightforward.

Designed for DIN rail mounting, Harmony RM22 relays fit easily into new control panels as well as retrofit installations. Their compact construction, dependable performance, and wide range of monitoring functions make them suitable for industrial automation, building services, water treatment, and machine control applications.

Models Covered

The Harmony RM22 Series includes a wide range of monitoring relays, including:

• RM22TG
• RM22TA
• RM22TU
• RM22TR
• RM22UA
• RM22UB
• RM22JA
• RM22LA
• RM22LG

Additional RM22 variants are available based on the monitoring function, supply voltage and application.

Specifications

• Product Name: Schneider Harmony RM22 Series Monitoring Relays
• Product Family: Harmony
• Relay Type: Multifunction Monitoring Relay
• Series: RM22
• Mounting: DIN Rail
• Supply Voltage: Multiple AC and DC voltage options (model dependent)
• Monitoring Functions: Phase Sequence, Phase Loss, Overvoltage, Undervoltage, Overcurrent, Undercurrent, Liquid Level and Voltage Monitoring (model dependent)
• Output: Relay Output
• Setting Adjustment: Front-mounted adjustment controls
• Status Indication: LED operating and fault indicators
• Housing: Compact modular design
• Standards: IEC, CE, UL, CSA and RoHS compliant (model dependent)

Features

• Multifunction monitoring relay for industrial applications
• Monitors voltage, current and phase conditions
• Models available for liquid level monitoring
• Adjustable operating thresholds
• LED indication for power and fault status
• Front-mounted controls for quick setup
• Compact DIN rail mounting design
• Fast response to abnormal electrical conditions
• Reliable operation in industrial environments
• Simple installation and maintenance
• Suitable for new panels and retrofit projects

Applications

• Industrial automation systems
• PLC control panels
• Motor control centres (MCC)
• Pump control systems
• Compressors
• Conveyor systems
• Water and wastewater treatment plants
• HVAC equipment
• Building management systems
• Packaging machinery
• Material handling equipment
• OEM electrical panels
• Manufacturing and process industries
