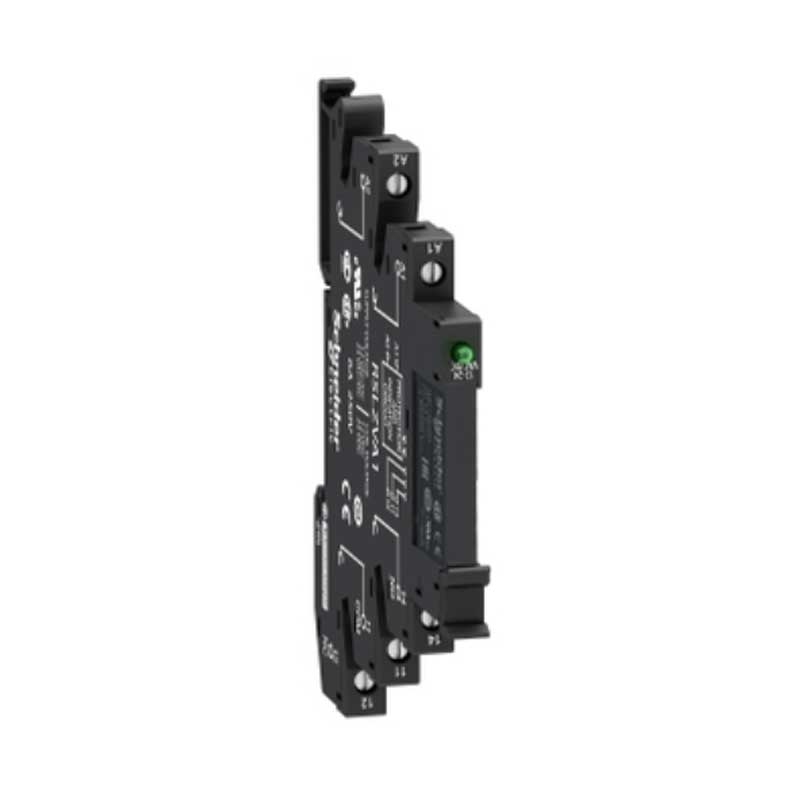

Schneider Harmony RSL Slim Interface Relays

Schneider Harmony RSL Slim Interface Relays are compact electromechanical relays designed for PLC interfaces, industrial automation, and machine control applications where panel space is limited. Their slim profile allows more relays to be installed on a DIN rail without compromising switching performance, making them a practical choice for modern control cabinets.

The Harmony RSL series provides reliable electrical isolation between low-power control signals and field devices such as contactors, solenoid valves, alarms, and indicator lamps. Available in multiple AC and DC coil voltage options, these relays support fast installation and easy replacement through their plug-in design.

Many models feature an LED status indicator and manual test lever, allowing operators to verify relay operation during commissioning and maintenance. Harmony RSL relays are compatible with Schneider relay sockets and accessories, making them suitable for both new automation projects and panel upgrades.

Specifications

• Product Name: Schneider Harmony RSL Slim Interface Relays
• Product Family: Harmony Electromechanical Relays
• Relay Type: Slim Interface Relay
• Contact Configuration: 1 Changeover (1 CO) and 2 Changeover (2 CO) options (model dependent)
• Current Rating: Up to 6 A (model dependent)
• Coil Voltage Options: Multiple AC and DC voltage variants
• Mounting: Plug-in DIN rail mounting with Harmony relay sockets
• Panel Width: Slim space-saving design
• Status Indication: LED operating indicator (selected models)
• Manual Operation: Test lever (selected models)
• Accessories: Relay sockets, retaining clips, protection modules and marking tags
• Standards: IEC, CE, UL, CSA and RoHS compliant (model dependent)

Features

• Slim relay design for compact control panels
• Reliable interface relay for PLC and automation systems
• Available in multiple AC and DC coil voltages
• Plug-in construction for quick installation and replacement
• LED operating indicator on selected models
• Manual test lever for easy maintenance
• Compatible with Harmony relay sockets
• Electrical isolation between control and load circuits
• Suitable for DIN rail mounting
• Long mechanical and electrical service life
• Easy wiring and servicing
• Designed for continuous industrial operation

Applications

• PLC interface panels
• Industrial automation systems
• Machine control equipment
• Control and signalling circuits
• Packaging machinery
• Conveyor systems
• HVAC control panels
• Building automation systems
• Water and wastewater treatment plants
• Material handling equipment
• OEM electrical panels
• Factory automation
