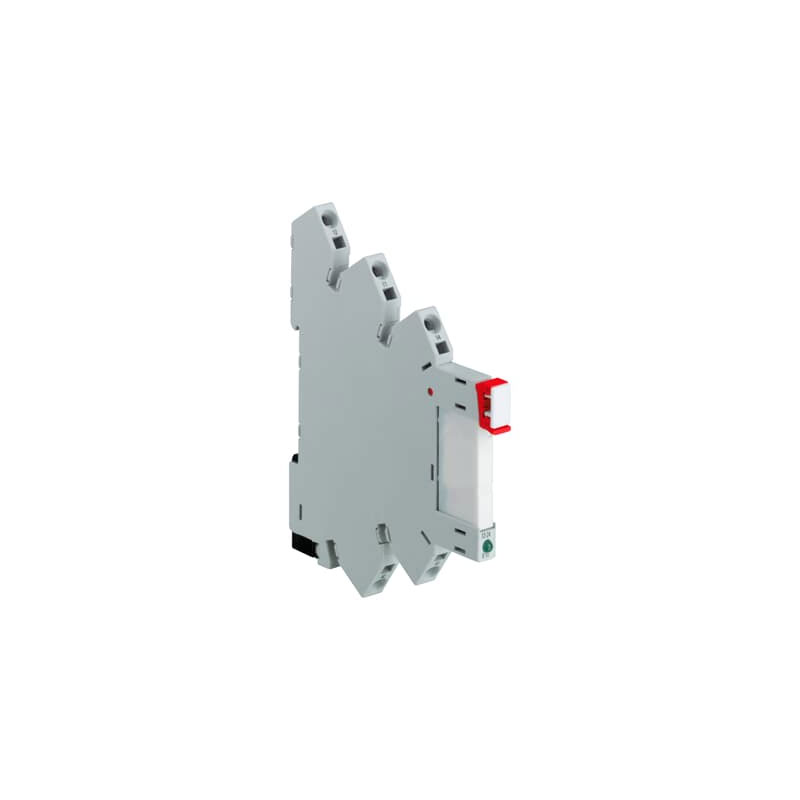

ABB CR-S Slim Interface Relays

Name: ABB CR-S Slim Interface Relays Supplier & Exporter India
SKU: CR-S

ABB CR-S Slim Interface Relays Supplier & Exporter in India

ABB CR-S Slim Interface Relays for PLC & Control Panels

ABB CR-S is a compact range of pluggable interface relays and optocouplers used between PLC outputs, control systems, sensors and field equipment. The slim construction makes the CR-S range a good choice for control panels where a large number of interface relays have to be installed, but DIN rail space is limited.

The standard CR-S relay provides one changeover contact and can switch loads up to 6 A at 250 V AC. Different coil voltages are available for common industrial control circuits, and gold-plated contact versions are offered for low-level signals.

ABB also offers complete CR-S interface relay assemblies with relay, socket and marker. Screw and spring terminal versions are available, which makes the range useful for new control-panel projects as well as replacement of existing ABB interface relays.

For requirements for an ABB CR-S interface relay supplier in India, ABB 24V DC slim relay, CR-S relay with socket, PLC interface relay or ABB CR-S export supply, buyers can share the complete model or ABB order code, coil voltage and quantity for quotation.

ABB CR-S Relay Models

CR-S Standard Contact Relays

These models use one changeover contact and are rated up to 6 A at 250 V AC:

CR-S005VDC1R – 5 V DC coil – ABB order code 1SVR405501R1010
CR-S012VDC1R – 12 V DC coil – ABB order code 1SVR405501R2010
CR-S024VDC1R – 24 V DC coil – ABB order code 1SVR405501R3010
CR-S048VDC1R – 48 V DC coil – ABB order code 1SVR405501R4010
CR-S060VDC1R – 60 V DC coil – ABB order code 1SVR405501R5010

The CR-S024VDC1R 24 V DC interface relay is particularly relevant for PLC, automation and machine-control panels using 24 V DC control circuits.

CR-S Gold-Plated Contact Relays

Gold-plated contact versions are available where low-level signals have to be switched reliably:

CR-S005VDC1RG – 5 V DC
CR-S012VDC1RG – 12 V DC
CR-S024VDC1RG – 24 V DC
CR-S048VDC1RG – 48 V DC
CR-S060VDC1RG – 60 V DC

These versions are generally used for low-current signal switching rather than higher-load control applications.

ABB CR-S Optocouplers

The CR-S family also includes solid-state optocoupler versions for applications where electrical isolation is required without a mechanical relay contact.

Available models include:

CR-S024VDC1TRA – 1SVR405510R3050

24 V DC input
Transistor output
Up to 100 mA / 48 V DC

CR-S024VDC1MOS – 1SVR405510R3060

24 V DC input
MOSFET output
Up to 2 A / 24 V DC

CR-S024VDC1TRI – 1SVR405510R3070

24 V DC input
Triac output
Up to 2 A / 240 V AC

These models are useful in PLC and automation systems where frequent switching, electrical isolation or solid-state output is preferred.

ABB CR-S Complete Interface Relay Assemblies

ABB also supplies CR-S as a complete interface relay consisting of the relay, socket and marker.

Common complete units include:

12 V AC/DC

CR-S012VADC1CRS – screw terminal
CR-S012VADC1CRZ – spring terminal

24 V AC/DC

CR-S024VADC1CRS – standard contact, screw terminal
CR-S024VADC1CRZ – standard contact, spring terminal
CR-S024VADC1CRGS – gold-plated contact, screw terminal
CR-S024VADC1CRGZ – gold-plated contact, spring terminal

110 V AC/DC

CR-S110VADC1CRS – standard contact, screw terminal
CR-S110VADC1CRZ – standard contact, spring terminal
CR-S110VADC1CRGS – gold-plated contact, screw terminal
CR-S110VADC1CRGZ – gold-plated contact, spring terminal

230 V AC/DC

CR-S230VADC1CRS – standard contact, screw terminal
CR-S230VADC1CRZ – standard contact, spring terminal
CR-S230VADC1CRGS – gold-plated contact, screw terminal
CR-S230VADC1CRGZ – gold-plated contact, spring terminal

For replacement requirements, it is better to provide the complete CR-S model number because coil voltage, contact type and terminal arrangement differ between versions.

Technical Specifications

Product family: ABB CR-S
Product type: Slim pluggable interface relay and optocoupler
Relay width: Approximately 5 mm
Complete socket assembly width: Approximately 6.2 mm
Relay contact arrangement: 1 changeover / 1 c/o / SPDT
Standard contact rating: Up to 6 A at 250 V AC
Standard contact material: Silver tin oxide, AgSnO₂
Gold-plated contact versions: Available
DC relay coil voltages: 5 V, 12 V, 24 V, 48 V and 60 V DC
Complete AC/DC interface relay versions: 12 V, 24 V, 110 V and 230 V AC/DC
Optocoupler input voltage: 24 V DC
Optocoupler outputs: Transistor, MOSFET and Triac
Connection options: Screw or spring terminals
LED indication: Integrated in the socket
Relay construction: Pluggable/replaceable
DIN rail mounting: Through CR-S socket
Standard relay weight: Approximately 5 g
Complete relay and socket weight: Approximately 30 g
Accessories: Jumper bars, markers and separators
Contact material: Cadmium-free
Application: Electrical isolation, signal matching and amplification between control and field circuits

Features

Slim design: CR-S takes very little DIN rail space, which helps when a control cabinet contains many interface points.
6 A switching capability: The standard relay can handle control loads up to 6 A at 250 V AC.
One changeover contact: Provides a flexible SPDT output for control and signalling circuits.
Multiple coil voltages: Covers common DC and AC/DC industrial control voltages.
Pluggable relay: The relay can be changed without replacing the complete socket and wiring.
Standard and gold-plated contacts: Standard contacts are used for normal switching duties, while gold-
plated versions are available for low-level signals.
Relay and optocoupler options: Buyers can select a mechanical relay or solid-state output depending on the application.
LED indication: Socket-mounted LED indication gives a quick visual check of relay operation.
Screw and spring terminals: Both connection styles are available to suit different panel-building practices.
Jumper accessories: Common potentials can be distributed across several relay sockets, reducing panel wiring.
Compact control-panel layout: Particularly useful in PLC cabinets, machine-control panels and automation systems with high I/O density.

Applications

ABB CR-S slim interface relays are commonly used in:

PLC control panels
Industrial automation panels
Machine control systems
Process automation
Building automation
MCC panels
Electrical control cabinets
Packaging machinery
Material handling systems
Conveyor control panels
Water and wastewater plants
Pump control panels
HVAC control systems
Manufacturing equipment
OEM machinery
Robotics and automated production lines
Signal isolation circuits
Sensor and actuator interfacing
PLC output isolation
Control voltage conversion
Industrial switching circuits

ABB CR-S Relay for PLC Interface Applications

One of the common applications for CR-S is between a PLC and field equipment.

A PLC output normally handles a relatively small control signal. The CR-S interface relay provides electrical isolation between the PLC and the connected load while allowing the relay contact to switch another control circuit.

A 24 V DC ABB CR-S PLC interface relay can therefore be used for switching devices such as:

Contactors
Solenoid valves
Indication circuits
Small control loads
Interposing control circuits
Alarm circuits

The slim construction becomes particularly useful when dozens of PLC outputs have to be interfaced inside the same cabinet.

ABB CR-S024VDC1R 24V DC Interface Relay

The CR-S024VDC1R – 1SVR405501R3010 is one of the key models in the CR-S range for 24 V DC control systems.

Main details include:

Coil voltage: 24 V DC
Contact arrangement: 1 changeover contact
Output rating: 6 A / 250 V AC
Contact type: Standard AgSnO₂
Relay width: 5 mm
Pluggable construction
Used with CR-S slim sockets

For buyers searching specifically for an ABB CR-S024VDC1R supplier, 1SVR405501R3010 price or ABB 24V DC interface relay, the complete ABB order code should be mentioned in the enquiry.

ABB CR-S Sockets & Accessories

The CR-S system includes dedicated sockets and accessories for creating complete DIN rail interface assemblies.

Socket options cover:

DC control voltages
AC/DC control voltages
Screw terminal connections
Spring terminal connections

Accessories include:

Jumper bars
Markers
Separators
Socket accessories

This modular arrangement allows the relay itself to be replaced while keeping the panel wiring connected to the socket.

Choosing the Correct ABB CR-S Relay

When requesting an ABB CR-S interface relay quotation, provide:

Complete CR-S model number
ABB order code, if available
Coil/control voltage
AC or DC supply
Standard or gold-plated contact requirement
Screw or spring terminal preference
Relay or optocoupler requirement
Quantity
Destination country

For an existing panel, a photograph of the installed relay and socket can also help identify the correct version.

Looking for ABB CR-S Slim Interface Relays?

We supply ABB CR-S slim interface relays and optocouplers for industrial automation, PLC panels, machine control, OEM requirements and export projects.

Enquiries can be sent for ABB CR-S024VDC1R, CR-S012VDC1R, CR-S048VDC1R, CR-S060VDC1R, gold-contact CR-S relays, complete relay-and-socket assemblies and CR-S optocouplers.

For an ABB CR-S interface relay supplier and exporter from India, please share the exact model, ABB order code, coil voltage, quantity, and destination country for a quotation.
