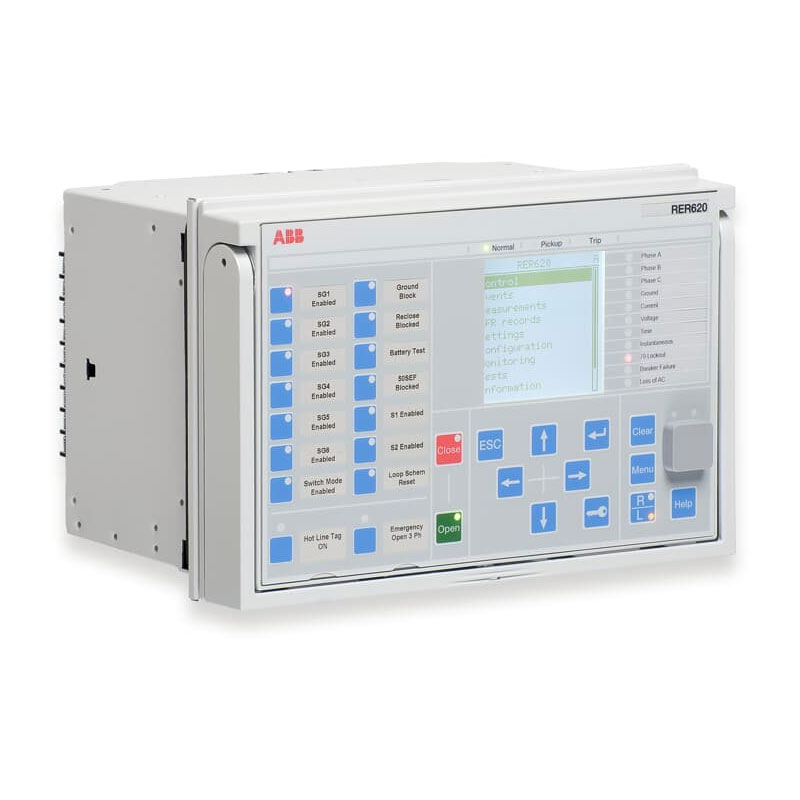

ABB RER620 Advanced Recloser Protection and Control Relay

ABB RER620 Advanced Recloser Protection and Control Relay Supplier and Exporter in India

ARP IMPEX supplies and exports ABB RER620 Advanced Recloser Protection and Control Relays from India for utility distribution networks, overhead feeders, cable feeders, recloser panels and grid automation requirements.

We handle enquiries for existing RER620 replacement, matching spares, utility maintenance requirements and upgrade projects. Buyers can send the complete ABB RER620 order code, required quantity and destination country for pricing and availability.

ABB Relion RER620 is an advanced recloser protection and control relay used for protection, control, measurement and supervision of utility distribution feeders and industrial power systems. It is used with radial, looped and meshed networks, including distribution systems with distributed generation.

RER620 combines feeder overcurrent and earth-fault protection with single- or three-phase tripping, multi-shot autoreclosing, voltage protection, fault location, synchronism checking and automatic loop control. It can be used for overhead lines as well as cable feeders in grounded and ungrounded distribution systems.

For buyers searching for an ABB RER620 supplier in India, ABB RER620 replacement relay, GridShield recloser relay or advanced recloser control relay, the complete order code or existing relay nameplate should be shared whenever possible.

Request a Quote for ABB RER620

For ABB RER620 price and availability, please share:

• Complete ABB RER620 part code or order code
• Required quantity
• Destination country
• Required delivery schedule

For replacement requirements, also send:

• Clear photograph of the existing RER620 nameplate
• Existing software version, if known
• PCM600 configuration file, if available
• Recloser make and model

Why Buy ABB RER620 from ARP IMPEX?

• Supply enquiries against complete ABB order codes
• Support for existing RER620 replacement requirements
• Part-code and nameplate checking before quotation
• Quotations for single units and project quantities
• Support for GridShield and other compatible recloser requirements
• Technical datasheets supplied with the offer
• Assistance with RER620 to REC615 upgrade requirements
• Export packing and international shipping support
• Supply for utilities, EPC contractors and panel builders

ARP IMPEX handles requirements from buyers looking for an ABB RER620 supplier and exporter from India for recloser protection, feeder automation, replacement and utility grid projects.

ABB RER620 Models and Configurations

ABB RER620 is one advanced recloser protection and control platform rather than a family containing many separate model numbers.

ABB documents one standard feeder protection and recloser control configuration, with the final functions and hardware determined by the complete order code. The application can then be adjusted using ABB PCM600.

The ordering structure includes two functional application variants:

ABB RER620 Functional Application A – RA01

Functional Application A is used for single- and dual-source recloser applications with six voltage inputs.

It can be ordered with:

• Single-phase or three-phase tripping
• Basic or expanded binary I/O
• Ethernet communication
• Serial communication options
• IEC 61850
• DNP3
• Modbus
• IEC 60870-5-101/104, depending on communication selection

This is the main RER620 configuration used with feeder and recloser control applications.

ABB RER620 Functional Application B – RA02

Functional Application B is also intended for single- and dual-source applications and is associated with G&W and other supported recloser arrangements.

ABB notes that this option became available with software version 1.3 or later. The exact recloser interface, power driver and UPS requirement should be confirmed against the complete order code.

For replacement enquiries, it is better to quote against the full RER620 order code instead of selecting only RA01 or RA02.

Technical Specifications

• Brand: ABB
• Product family: Relion 620 Series
• Model: RER620
• Product type: Advanced recloser protection and control relay
• Main application: Feeder protection and recloser control
• Networks: Radial, looped and meshed distribution systems
• Distributed generation: Supported
• Feeder type: Overhead lines and cable feeders
• Tripping: Three-phase standard; single-phase tripping optional.
• Autoreclosing: Single-phase and/or three-phase
• Autoreclose shots: Up to five programmable shots
• Phase-current inputs: Three
• Sensitive residual-current input: One
• Total CT inputs: Four
• Phase-current secondary rating: Programmable for 1 A or 5 A
• Sensitive residual-current input rating: 0.2 A / 1 A
• Voltage inputs: Six
• Voltage input nominal settings: 100 / 110 / 115 / 120 V AC
• Voltage sensing: Conventional VTs and supported voltage-divider sensors
• Basic binary inputs: 4
• Basic binary outputs: 6
• Expanded binary inputs: Up to 20
• Expanded binary outputs: Up to 14
• Auxiliary relay supply: 24–60 V DC arrangement with external UPS in the applicable order
• configuration
• Communication protocols: IEC 61850, DNP3 Level 2+, Modbus, IEC 60870-5-101, IEC
• 60870-5-104 and PG&E 2179 depending on ordered communication package
• Ethernet options: 100Base-FX fibre or 10/100Base-T copper
• Serial communication: RS-232 / RS-485 and serial fibre options
• GOOSE messaging: Supported
• Time synchronisation: SNTP and IRIG-B depending on communication hardware
• Configuration software: ABB PCM600
• Local interface: Large graphical LCD HMI
• Web access: Web HMI
• Programmable front buttons: 16
• Programmable LEDs: 11
• Construction: Drawout relay design
• Front protection: IP54
• Rear protection: IP20
• Continuous operating temperature: –25°C to +55°C
• Installation altitude: Up to 2,000 metres
• Approximate frame width: 262.2 mm
• Approximate frame height: 177 mm
• Approximate depth: 201 mm
• Approximate complete relay weight: 4.8 kg

The exact I/O, communication interface, tripping arrangement, power supply and recloser interface depend on the complete RER620 order code.

Features

• Advanced recloser protection and control
• Overhead feeder protection
• Cable feeder protection
• Single-phase tripping
• Three-phase tripping
• Single- and three-phase autoreclosing
• Up to five programmable autoreclose shots
• Phase overcurrent protection
• Instantaneous overcurrent protection
• Directional overcurrent protection
• Ground / earth-fault protection
• Directional ground-fault protection
• Sensitive earth-fault protection
• High-impedance fault detection
• Negative-sequence overcurrent protection
• Phase-discontinuity protection
• Circuit-breaker failure protection
• Circuit-breaker close-failure protection
• Undervoltage protection
• Overvoltage protection
• Positive-sequence voltage protection
• Negative-sequence voltage protection
• Residual-voltage protection
• Underfrequency protection
• Overfrequency protection
• Rate-of-change-of-frequency protection
• Load shedding and restoration
• Synchronism and energising check
• Integrated loop control
• Automatic loop restoration
• Fault location
• Cold-load pickup handling
• Switch-onto-fault function
• Recloser condition monitoring
• Fuse-failure supervision
• Current and voltage measurement
• Active and reactive power measurement
• Energy measurement
• Demand measurement
• Digital fault recording
• Sequence-of-events recording
• Fault recording
• IEC 61850 communication
• GOOSE messaging
• DNP3, Modbus and IEC 60870 communication
• Local and remote operation
• PCM600 configuration
• Large LCD with single-line diagram

ABB specifically highlights single- and three-phase tripping, high-impedance fault detection, integrated loop control, scalable I/O and IEC 61850/GOOSE communication among the main RER620 capabilities.

Single-Phase and Three-Phase Recloser Control

RER620 can operate three poles together or individual poles, depending on the ordered relay and recloser arrangement.

Single-phase operation is useful in distribution systems where a temporary fault affects only one phase and opening all three phases is not required.

RER620 supports up to five programmable autoreclose shots. Different fast and delayed operating sequences can be set according to the feeder protection philosophy.

Typical applications include:

• Rural overhead feeders
• Utility distribution lines
• Recloser sectionalising points
• Midpoint reclosers
• Tie-point reclosers
• Feeders with downstream fuses

High-Impedance Fault Detection

RER620 can be ordered with high-impedance fault detection, which is useful for detecting fault conditions that may produce current too low for normal overcurrent elements.

Typical examples include:

• Downed overhead conductors
• Conductors touching high-resistance surfaces
• Weak ground faults
• Faults where conventional overcurrent protection may have limited sensitivity

RER620 uses its sensitive fourth CT input for sensitive earth-fault and high-impedance fault functions.

For an ABB RER620 high impedance fault detection relay quotation, the exact order code and CT arrangement should be checked.

Integrated Loop Control

Integrated loop control is one of the important differences between RER620 and a basic recloser relay.

RER620 can be used at:

• Sectionalising reclosers
• Midpoint reclosers
• Tie-point reclosers

The relay can react to voltage conditions around the feeder and automatically change the network arrangement after a fault. ABB describes this as an automatic loop restoration function that can work without communication between the individual recloser controls in the basic loop-control scheme.

Where communication between relays is available, IEC 61850 GOOSE messaging can also be used for fault detection, isolation and restoration schemes.

This makes RER620 relevant for searches such as:

• ABB automatic loop control relay
• ABB feeder restoration relay
• ABB FDIR recloser relay
• ABB RER620 tie-point recloser control

Distributed Generation Applications

RER620 can be used in distribution networks containing distributed generation.

ABB includes built-in logic for situations where energising a distributed-generation interconnection transformer creates transformer inrush current. Protection elements can be temporarily blocked or made less sensitive to prevent unnecessary recloser operation.

Typical applications include:

• Solar power connections
• Wind generation connections
• Captive generation
• Distributed generation feeders
• Utility networks with reverse power flow
• Renewable energy distribution networks

ABB GridShield Recloser Applications

RER620 has been widely associated with ABB GridShield reclosers.The relay’s Universal Power Driver can control magnetic actuators used in three-phase reclosers. ABB also specifies an external UPS arrangement when RER620 is used with ABB GridShield or G&W Viper reclosers.

For an ABB RER620 GridShield replacement, buyers should share:

• RER620 order code
• GridShield recloser model
• Relay nameplate
• UPS details
• Existing wiring or panel information
• PCM600 configuration, if available

Remote Monitoring and SCADA Communication

RER620 can communicate with utility automation and SCADA systems using several communication protocols.

Depending on the ordered communication module, these include:

• IEC 61850
• DNP3 Level 2+
• Modbus
• IEC 60870-5-101
• IEC 60870-5-104
• PG&E 2179

IEC 61850 GOOSE messaging can also be used for fast peer-to-peer communication between protection and control devices.

RER620 supports remote recloser control and makes fault records, waveform information, measurements, events and settings available locally or remotely.

Applications

ABB RER620 is commonly used for:

• Advanced recloser protection
• Overhead-line feeder protection
• Underground cable feeder protection
• Single-phase recloser control
• Three-phase recloser control
• Automatic feeder reclosing
• Sectionalising recloser applications
• Midpoint recloser applications
• Tie-point recloser applications
• Automatic loop restoration
• Feeder fault location
• Fault detection and isolation
• Service restoration
• High-impedance fault detection
• Sensitive earth-fault protection
• Rural distribution feeders
• Urban distribution networks
• Radial distribution systems
• Looped distribution networks
• Meshed distribution networks
• Grounded distribution systems
• Ungrounded distribution systems
• Networks with distributed generation
• Renewable energy feeder connections
• GridShield recloser control
• G&W Viper recloser applications
• SCADA-controlled reclosers
• Utility grid automation
• Existing ABB RER620 replacement requirements

ABB identifies overhead-line recloser protection as the main RER620 scope while also documenting cable feeder, radial, looped, meshed and distributed-generation applications.

Industries and Buyers Using ABB RER620

RER620 requirements mainly come from:

• Electricity distribution utilities
• Power distribution companies
• Utility substations
• Rural electrification projects
• Renewable power networks
• Industrial power distribution systems
• EPC contractors
• Recloser panel manufacturers
• Grid automation contractors
• Switchgear and control-panel builders
• Utility maintenance companies

ABB RER620 Replacement and REC615 Upgrade

RER620 remains important for the installed base, particularly where utilities require a matching replacement, maintenance spare or upgrade of an existing recloser installation.

ABB now states that there will be no new releases of RER620, and the new Grid Automation REC615 represents the next step for RER620 applications. The new REC615 combines the functions of the previous REC615, RER615 and RER620 platforms.

For RER620 applications, ABB provides the new REC615 in a wide-size version corresponding to the RER620 mechanical size and analogue/binary channel capability.

However, an RER620-to-REC615 replacement should not be selected only by enclosure size. The following should also be checked:

• Existing RER620 order code
• Single- or three-phase recloser operation
• CT and voltage inputs
• Binary I/O
• Recloser actuator
• Universal Power Driver arrangement
• External UPS
• Communication interface
• SCADA protocol
• Existing PCM600 logic and settings

ABB notes that the RER620 UPD arrangement is replaced by an external actuator interface module when the new REC615 is used with GridShield.

For an ABB RER620 replacement relay or RER620 to REC615 upgrade, send the existing nameplate and complete order code first.

Contact us for ABB RER620 price in India, ABB RER620 replacement relay, GridShield recloser control, RA01/RA02 requirement, matching spare or ABB RER620 to REC615 upgrade quotation from India.
