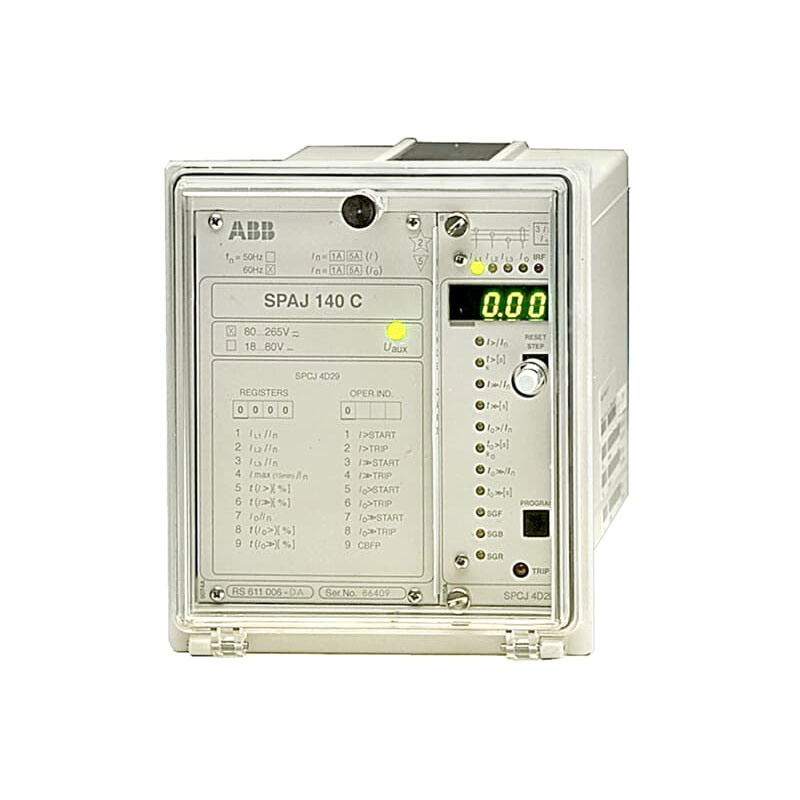

ABB SPAJ 140 C Overcurrent and Earth-Fault Relay

ABB SPAJ 140 C Overcurrent and Earth-Fault Relay Supplier and Exporter in India

ARP IMPEX supplies and exports ABB SPAJ 140 C combined overcurrent and earth-fault relays for existing switchgear, substations, industrial plants and replacement requirements.

SPAJ 140 C is an older ABB SPACOM protection relay widely used for overcurrent, short-circuit and earth-fault protection of radial feeders. It combines phase overcurrent and earth-fault protection in one unit and is commonly found in older medium-voltage switchgear and industrial distribution panels.

ABB SPAJ 140 C is now a legacy product, and ABB lists it as not active since 2016. Most enquiries today are therefore for an existing relay replacement, matching spare or upgrade to a newer ABB protection relay.

If you have an installed SPAJ 140 C and need the same relay, send us the complete order code and a clear photograph of the nameplate. We can check the requirement based on the available details.

ARP IMPEX handles enquiries from buyers looking for an ABB SPAJ 140 C supplier in India, SPAJ 140 C replacement relay, discontinued ABB SPACOM relay, SPAJ 140 C price or SPAJ 140 C to REX610 retrofit.

Request a Quote for ABB SPAJ 140 C

For pricing and availability, please send:

• Complete ABB SPAJ 140 C order code
• Required quantity
• Destination country
• Required delivery schedule

For an existing relay replacement, please also send a clear photograph of the relay nameplate.

Why Buy ABB SPAJ 140 C from ARP IMPEX?

• Support for legacy ABB SPACOM relay requirements
• Supply enquiry against complete ABB order code
• Part-code and nameplate checking before quotation
• Support for exact replacement and matching spare requirements
• Quotations for single units and multiple quantities
• Assistance with discontinued ABB relay enquiries
• Support for SPAJ 140 C to REX610 retrofit requirements
• Technical datasheets with quotation
• Export packing and international shipping assistance
• Supply support for utilities, EPC contractors and industrial maintenance buyers

ABB SPAJ 140 C Model and Product Status

SPAJ 140 C is a specific ABB relay model, not a product family containing several variants under different model numbers.

It belongs to ABB’s older SPACOM / SPAJ protection relay range.

Related ABB SPAJ models such as:

• SPAJ 141 C
• SPAJ 142 C
• SPAJ 144 C

are separate relay models and should be treated as individual products.

SPAJ 140 C uses the ABB SPCJ 4D29 combined overcurrent and earth-fault relay module.

ABB lists SPAJ 140 C as a non-active product since 2016, making replacement and retrofit enquiries more important than new-project enquiries.

Technical Specifications

• Brand: ABB
• Series: SPACOM / SPAJ
• Model: SPAJ 140 C
• Product type: Combined overcurrent and earth-fault protection relay
• Product status: Legacy / not active
• Main application: Radial feeder protection
• Phase-current inputs: 3
• Rated current: 1 A or 5 A
• Earth-fault current input: 1 A or 5 A
• Rated frequency: 50 Hz or 60 Hz depending on version
• Phase overcurrent stages: I> and I>>
• Earth-fault stages: I0> and I0>>
• Low-set overcurrent range: 0.5–5.0 × In
• High-set overcurrent range: 0.5–40 × In
• Low-set earth-fault range: 0.1–0.8 × In
• High-set earth-fault range: 0.1–10 × In
• Operating characteristics: Definite time and IDMT on applicable stages
• Inverse-time curves: Normal inverse, very inverse, extremely inverse and other supported characteristics
• Circuit-breaker failure protection: Available
• External control / blocking input: Available
• Communication: SPA serial communication with applicable communication module
• Wide auxiliary supply version: 80–265 V AC/DC
• Low DC auxiliary supply version: 18–80 V DC
• Setting groups: Two
• Self-supervision: Built-in
• Mounting: Flush and other panel-mounting arrangements depending on installation

The exact rated current, auxiliary supply and frequency should always be confirmed from the complete SPAJ 140 C order code or existing nameplate.

Features

• Three-phase overcurrent protection
• Short-circuit protection
• Earth-fault protection
• Low-set phase overcurrent stage
• High-set phase overcurrent stage
• Low-set earth-fault stage
• High-set earth-fault stage
• Definite-time operation
• IDMT operating characteristics
• Circuit-breaker failure protection
• External blocking and control input
• Trip and signalling outputs
• Two protection setting groups
• Fault indication
• Built-in relay self-supervision
• SPA serial communication
• 1 A and 5 A current-input versions
• 50 Hz and 60 Hz versions
• Different auxiliary supply versions

These functions made SPAJ 140 C a commonly used protection relay in older feeder panels and medium-voltage distribution systems.

Applications

ABB SPAJ 140 C is commonly found in:

• Radial feeder protection
• Medium-voltage feeder panels
• Incoming feeder protection
• Outgoing feeder protection
• Cable feeder protection
• Phase overcurrent protection
• Short-circuit protection
• Earth-fault protection
• Utility distribution substations
• Industrial substations
• Existing medium-voltage switchgear
• Plant power distribution systems
• Legacy ABB SPACOM installations
• Switchgear maintenance requirements
• Retrofit protection projects
• Existing ABB SPAJ 140 C replacement requirements

Existing SPAJ 140 C relays can still be found in power plants, steel plants, cement plants, refineries, petrochemical plants, manufacturing facilities, mining operations and utility substations.

ABB SPAJ 140 C Replacement

Replacement enquiries are one of the main requirements for SPAJ 140 C today.

As the relay is no longer an active ABB product, buyers may need:

• Exact SPAJ 140 C replacement
• Matching spare for existing switchgear
• Replacement during plant shutdown
• Spare relay for maintenance stock
• Upgrade to a current ABB protection relay

For an ABB SPAJ 140 C replacement relay, send us:

• Complete ABB order code
• Clear relay nameplate photograph
• Required quantity
• Destination country

The following details may also need to be checked:

• 1 A or 5 A current input
• 50 Hz or 60 Hz
• Auxiliary supply
• Existing trip wiring
• Existing protection settings

ABB SPAJ 140 C to REX610 Retrofit

ABB provides a retrofit route from several older SPACOM relays to its newer REX610 protection relay, including SPAJ 140 C.

This can be considered where:

• Original SPAJ 140 C availability is difficult
• An old relay has failed
• The switchgear is being modernised
• The plant wants to move away from legacy protection relays
• A long-term replacement solution is required

ABB provides a dedicated retrofit arrangement for moving SPAJ 140 C applications to REX610.

A retrofit should still be checked against the existing:

• CT secondary
• Auxiliary supply
• Protection settings
• Trip wiring
• Signalling contacts
• Blocking signals
• Panel arrangement

For an ABB SPAJ 140 C to REX610 replacement enquiry, send the SPAJ 140 C nameplate and available relay settings. This helps identify the existing protection arrangement before selecting the retrofit.

Contact us for ABB SPAJ 140 C price, ABB SPAJ 140 C replacement relay, discontinued SPAJ 140 C availability, ABB SPACOM relay supplier in India, matching spare or SPAJ 140 C to REX610 retrofit quotation from India.
