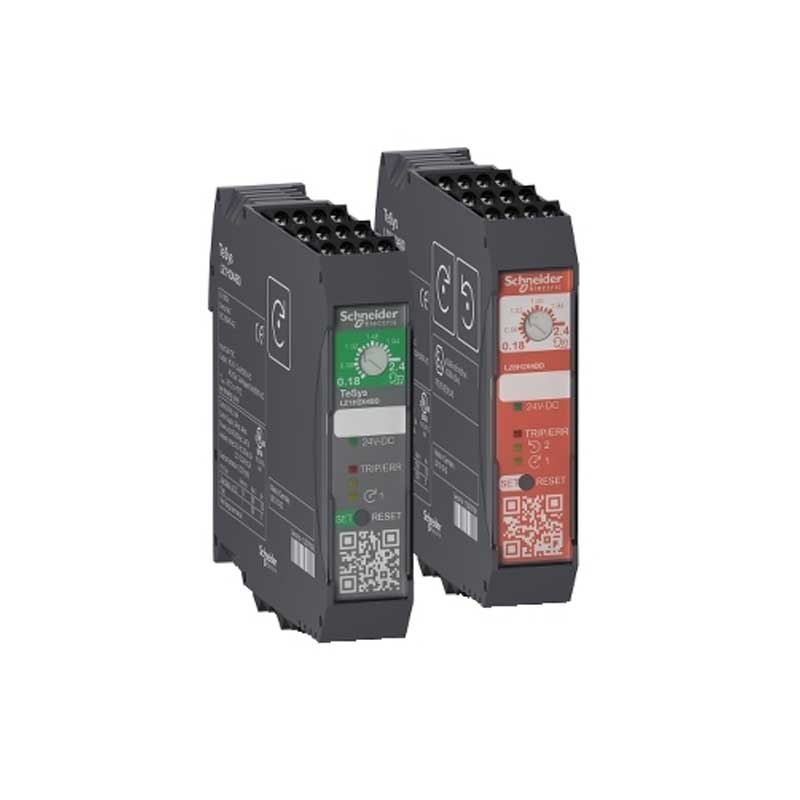

Schneider TeSys H Series Hybrid Motor Starters
Schneider TeSys H Series Hybrid Motor Starters Suppliers, Exporters in India
Schneider TeSys H Series Hybrid Motor Starters are compact motor control devices that combine the functions of a contactor, solid-state switching technology, and motor protection into a single unit. Designed for three-phase asynchronous motors, the TeSys H Series offers a space-saving solution for starting, stopping, and protecting motors in industrial automation systems.
The hybrid design uses solid-state switching during motor starting and stopping, while integrated electromechanical contacts handle continuous operation. This reduces contact wear, minimizes switching noise, and extends the service life of the starter. The result is reliable motor control with lower maintenance requirements compared to conventional motor starter assemblies.
With its compact construction and integrated functionality, the TeSys H Series simplifies panel design and reduces wiring. It is well suited for OEM machinery, production equipment, conveyors, pumps, compressors, and other applications where panel space, reliability, and easy installation are important.
TeSys H Series Covered
LZ1H Series
Standard Hybrid Motor Starter (Forward / Direct-On-Line)
Typical part numbers:
- LZ1H2X4BD
- LZ1H2X4FU
- LZ1H2X4JD
- LZ1H2X4JU
- LZ1H6X5BD
- LZ1H6X5FU
- LZ1H6X5JD
- LZ1H6X5JU
LZ2H Series
Reversing Hybrid Motor Starter
Typical part numbers:
- LZ2H2X4BD
- LZ2H2X4FU
- LZ2H2X4JD
- LZ2H2X4JU
- LZ2H6X5BD
- LZ2H6X5FU
- LZ2H6X5JD
- LZ2H6X5JU
LZ7H Series
Hybrid Motor Starter with Safe Torque Off (STO)
Typical part numbers:
- LZ7H2X4BD
- LZ7H2X4FU
- LZ7H2X4JD
- LZ7H2X4JU
- LZ7H6X5BD
- LZ7H6X5FU
- LZ7H6X5JD
- LZ7H6X5JU
LZ8H Series
Reversing Hybrid Motor Starter with Safe Torque Off (STO)
Typical part numbers:
- LZ8H2X4BD
- LZ8H2X4FU
- LZ8H2X4JD
- LZ8H2X4JU
- LZ8H6X5BD
- LZ8H6X5FU
- LZ8H6X5JD
- LZ8H6X5JU
Specifications
- Product Name: Schneider TeSys H Series Hybrid Motor Starters
- Product Family: TeSys
- Device Type: Hybrid Motor Starter
- Application: Three-Phase Asynchronous Motor Control and Protection
- Motor Functions: Motor Starting, Stopping and Protection
- Switching Technology: Hybrid Solid-State and Electromechanical Switching
- Motor Direction: Direct-On-Line (DOL) Starting (model dependent)
- Protection Functions: Overload, Short Circuit and Motor Protection (configuration dependent)
- Control Voltage: Multiple AC and DC control voltage options
- Mounting: DIN Rail or Panel Mounting
- Communication: Compatible with industrial automation systems (model dependent)
- Standards: IEC, CE, UL, CSA, RoHS and REACH compliant (model dependent)
Features
- Hybrid motor starter with integrated control and protection
- Compact design for space-saving installations
- Solid-state switching for reduced contact wear
- Electromechanical bypass for efficient continuous operation
- Quiet switching with minimal electrical noise
- Simplified panel wiring
- Fast motor switching performance
- Supports reliable operation in demanding industrial environments
- Easy installation and maintenance
- Suitable for OEM machinery and industrial control panels
- Helps reduce panel size and component count
Applications
- Industrial automation systems
- Three-phase asynchronous motors
- Motor control centres (MCC)
- Conveyor systems
- Pumps
- Compressors
- Fans and blowers
- Packaging machinery
- Material handling equipment
- HVAC systems
- Water and wastewater treatment plants
- Food and beverage processing
- Textile machinery
- OEM control panels
- Manufacturing and process industries
