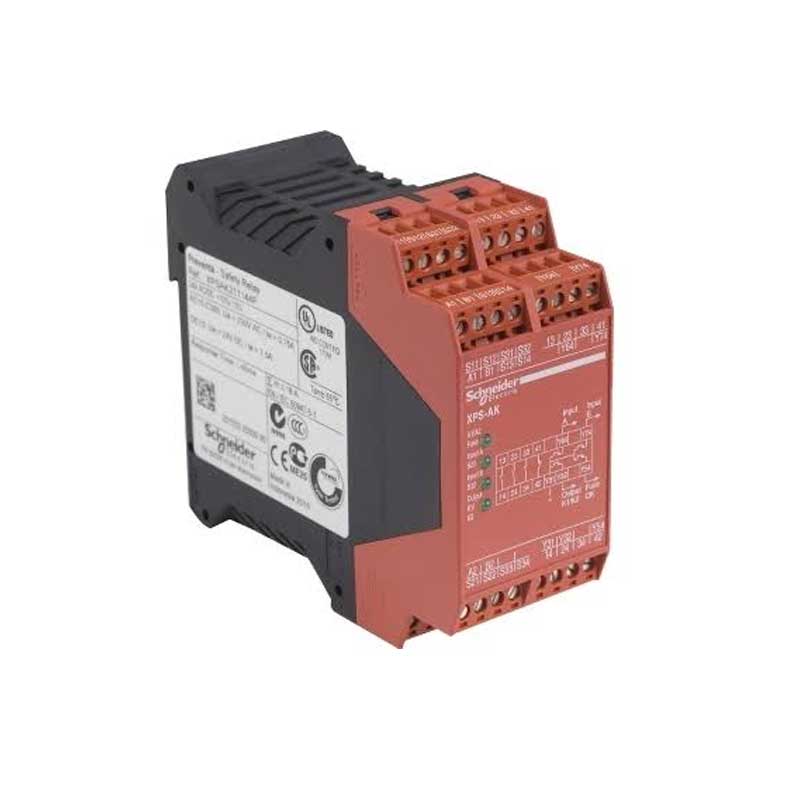

Schneider XPSAK311144P Preventa Emergency Stop Safety Module – 24 V AC/DC

Schneider XPSAK311144P Preventa Emergency Stop Safety Module Suppliers, Exporters in India

Schneider XPSAK311144P Preventa Emergency Stop Safety Module is used in machine safety circuits to monitor emergency stop push-buttons, guard switches, safety light curtains and safety mats or edges. It operates on a 24 V AC/DC supply and is commonly installed in control panels where several types of safety devices need to work through one module.

The XPSAK module checks the condition of the connected safety circuit and removes the safety output when it detects an emergency stop, open guard or unsafe sensor condition. It can be used with single-channel and dual-channel emergency stop circuits, depending on the machine wiring and required safety level.

Three normally open relay outputs are available for stopping contactors or other machine-control equipment. An auxiliary normally closed contact and solid-state outputs can pass status information to a PLC, alarm circuit or monitoring system. Removable screw terminals make panel wiring and future replacement easier.

Specifications

• Product Name: Schneider XPSAK311144P Preventa Safety Module
• Module Name: XPSAK
• Product Range: Preventa Safety Automation
• Supply Voltage: 24 V AC/DC
• Main Function: Emergency stop and machine safety circuit monitoring
• Compatible Devices: Emergency stop push-buttons, limit and guard switches, safety light curtains, safety mats and safety edges
• Safety Level: Up to Performance Level PL e, Category 4
• SIL Rating: Up to SILCL 3
• Safety Outputs: 3 normally open, volt-free relay outputs
• Additional Circuits: 1 normally closed contact and 4 solid-state outputs
• Start Function: Configurable according to the selected circuit
• Terminal Type: Removable screw clamp terminals
• Mounting: Control-panel DIN rail mounting
• Status Communication: Solid-state output for PLC or control-system indication

The achievable safety level depends on the complete safety circuit, connected devices, wiring and machine risk assessment.

Features

• Works with the most commonly used machine safety devices
• Monitors emergency stop circuits with one or two channels
• Guard and limit-switch monitoring
• Connection for Type 4 safety light curtains with tested solid-state outputs
• Monitoring of four-wire safety mats and edges
• Three relay outputs for machine shutdown circuits
• Auxiliary and solid-state outputs for status indication
• PLC feedback for safety-module operating status
• Removable terminals for easier panel wiring
• 24 V AC/DC supply for standard industrial control panels
• Useful for existing machinery, replacement jobs and safety-panel maintenance

Applications

• Emergency stop circuits
• Machine guard monitoring
• Safety-door and access-gate switches
• Safety light curtain circuits
• Safety mats and pressure-sensitive edges
• Conveyor safety systems
• Packaging machinery
• Material-handling equipment
• Presses and forming machines
• Assembly and production lines
• Robotic machine cells
• Food and beverage machinery
• Pharmaceutical production equipment
• Automotive manufacturing lines
• Existing Preventa XPSAK replacement requirements
• Schneider XPSAK Safety Module Supplier and Exporter

We supply and export Schneider XPSAK311144P emergency stop safety modules for industrial machinery, automation panels, maintenance work and replacement requirements.

Product Status and Replacement for XPSAK Preventa Emergency Stop Safety Module

XPSAK311144P is a legacy Schneider reference and Schneider product pages show that it has been discontinued. Schneider replacement guidance lists Harmony XPSUAK12AP as the newer replacement for XPSAK311144 and XPSAK311144P. Because replacement information can vary between regional Schneider catalogues, wiring and terminal compatibility should be checked before changing from XPSAK to XPSUAK.
