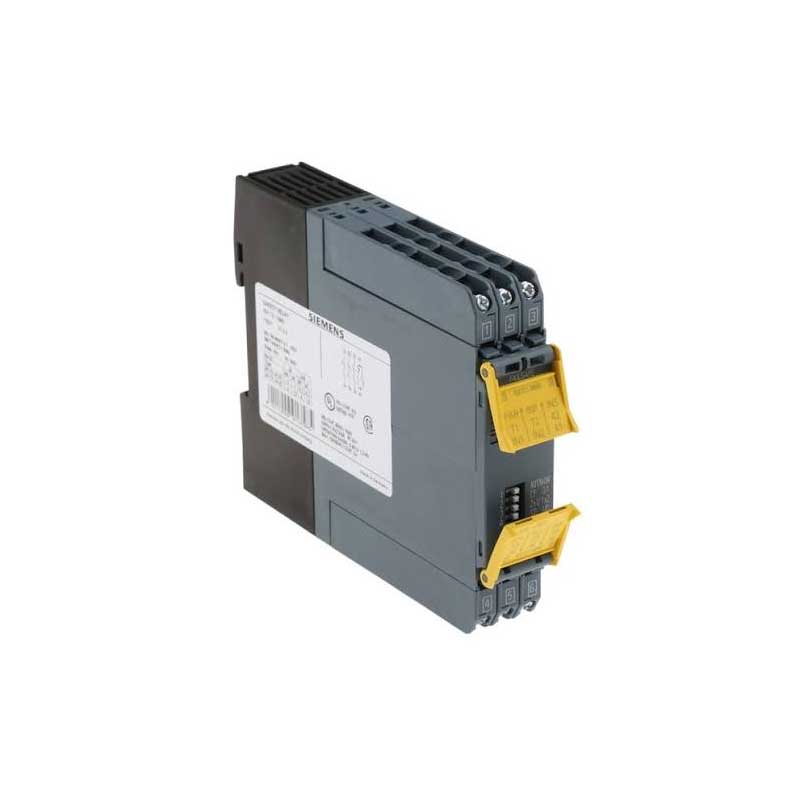

Siemens SIRIUS 3SK1 Safety Relays

Siemens SIRIUS 3SK1 Safety Relays Suppliers, Exporters in India

Siemens SIRIUS 3SK1 Safety Relays are used in machine safety circuits where dangerous movement must stop after an emergency button, safety switch, guard door or light curtain is operated. They monitor the connected safety device and switch off the machine through their safety-related output contacts.

The 3SK1 range suits standard machine safety applications that do not require software programming. The required function can be selected through the front switches, depending on the relay model. This makes the range practical for machine builders, control-panel manufacturers and maintenance teams looking for a compact and straightforward safety relay.

Common applications include emergency-stop monitoring, protective door monitoring, safety light curtain circuits, two-hand controls and safety switches on production machinery. The 3SK1 series can support safety functions up to SIL 3 and Performance Level PL e, provided the complete safety circuit is designed and validated correctly.

Siemens offers 3SK1 Standard and 3SK1 Advanced basic units. Standard models cover straightforward safety circuits, while Advanced models provide more setting options and can work with input and output expansion modules. Time-delayed versions are also available where one part of the machine must stop immediately, and another part requires a controlled delay.

ARP IMPEX supplies and exports Siemens SIRIUS 3SK1 Safety Relays for machine control panels, emergency-stop circuits, guard door monitoring and industrial safety applications. Buyers can send the complete Siemens part number, control voltage, required safety function and quantity for price and availability.

Technical Specifications

• Brand: Siemens
• Product range: SIRIUS
• Series: 3SK1
• Product type: Safety relay
• Available ranges: 3SK1 Standard and 3SK1 Advanced
• Safety functions: Emergency stop, protective door, safety switch and optoelectronic protective device monitoring
• Additional functions: Two-hand control and antivalent sensor monitoring on applicable Advanced models
• Safety level: Up to SIL 3, depending on the complete circuit design
• Performance level: Up to PL e, depending on the complete circuit design
• Sensor connection: Single-channel or dual-channel, depending on the selected model
• Start options: Automatic start or monitored start
• Cross-circuit detection: Available on applicable models
• Output types: Relay or electronic safety outputs, depending on the version
• Output contacts: Model-specific normally open enabling circuits and signalling contacts
• Time-delayed outputs: Available on selected Advanced models
• Typical time-delay range: From 0.05 to 3 seconds on applicable versions
• Control supply: 24 V AC/DC, 24 V DC and other voltage options, depending on the article number
• Terminal options: Screw terminals or spring-loaded push-in terminals
• Mounting: DIN rail mounting
• Degree of protection: IP20
• Operating temperature: Generally -25°C to +60°C, depending on the model
• Expansion options: Input and output expansion modules for applicable Advanced systems
• Installation area: Machine control panels and industrial safety circuits

The available outputs, control voltage, start function and monitored safety devices vary between part numbers. The full Siemens article number should therefore be checked before ordering a new unit or selecting a Siemens 3SK1 safety relay replacement.

Siemens 3SK1 Standard Safety Relays

The Siemens 3SK1 Standard range covers basic safety duties such as emergency stop and protective door monitoring. It suits machines where one safety function must disconnect the connected contactors or motor starters.

Standard basic units are available with different control voltages, enabling contacts and terminal arrangements. For example, selected models provide three normally open safety-related enabling contacts and one normally closed signalling contact. Screw-terminal and push-in-terminal versions are available.

These relays are commonly selected for:

• Emergency-stop push-button circuits
• Single safety door monitoring
• Safety limit switches
• Small machines and standalone equipment
• Replacement of an existing Siemens safety relay

Siemens 3SK1 Advanced Safety Relays

The Siemens 3SK1 Advanced range is used where the safety circuit needs more setting options or additional expansion modules. Depending on the selected model, the relay can monitor mechanical and electronic safety sensors, safety light curtains, laser scanners, magnetic safety switches and two-hand control stations.

Advanced models can be set for automatic or monitored start, single-channel or dual-channel operation and cross-circuit detection. Applicable units can also connect to expansion modules through the Siemens device connector, reducing the amount of wiring required between compatible modules.

The Advanced range is suitable for machine builders who need a flexible emergency-stop and guard door monitoring safety relay without moving to a software-configurable safety controller.

Time-Delayed Siemens 3SK1 Safety Relays

Some machines cannot disconnect every movement at the same time. A rotating tool, brake or controlled drive may require an immediate stop signal along with a delayed safety output.

Selected Siemens 3SK1 Advanced relays provide both instantaneous and time-delayed enabling circuits. For example, applicable models are available with two immediate outputs, two delayed outputs and an adjustable delay from 0.05 to 3 seconds.

These relays are used in controlled stopping arrangements, but the selected delay and stop category must match the machine risk assessment. A time delay should not be added only to prevent production interruptions.

Siemens 3SK1 Output Expansion Modules

When a basic safety relay does not provide enough enabling contacts, a Siemens 3SK1 output expansion module can add further safety-related outputs.

Relay output expansion units are available with different contact arrangements and control voltages. Selected models provide four normally open enabling contacts and one normally closed signalling contact. Higher-load expansion versions are also available for suitable safety circuits.

An expansion relay does not work as an independent safety-monitoring unit. It must form part of a correctly designed system with a compatible safety relay or safety controller.

Features

• Covers common machine safety functions without software programming
• Suitable for emergency-stop and guard door monitoring circuits
• Standard and Advanced versions cover different levels of circuit complexity
• Single-channel and dual-channel sensor monitoring options are available
• Automatic and monitored start functions are available
• Cross-circuit detection helps identify faults between safety input channels
• Relay and electronic output versions are available
• Time-delayed safety outputs are available for controlled stopping applications
• Expansion modules can add further enabling contacts
• Screw and push-in terminal options suit different panel-wiring methods
• LED indicators help maintenance teams check operating and fault conditions
• Compact DIN rail construction saves space inside machine panels
• Applicable safety circuits can achieve SIL 3 and PL e
• Can monitor mechanical switches as well as electronic safety sensors
• Suitable for new machine panels and Siemens safety relay replacement requirements
• Compatible expansion units make it easier to extend a safety circuit later

The 3SK1 switches all its fail-safe outputs off together when the monitored safety function is operated. Siemens positions the software-configurable 3SK2 range for more complex systems requiring independently controlled safety outputs.

Applications

• Siemens SIRIUS 3SK1 Safety Relays are commonly used for:
• Emergency-stop monitoring on industrial machines
• Protective door and safety gate monitoring
• Safety light curtain circuits
• Safety laser scanner monitoring
• Magnetic safety switch monitoring
• Two-hand control stations
• Conveyor emergency-stop systems
• Packaging machinery
• CNC and machine tool safety circuits
• Press and forming machine controls
• Robotic cell access doors
• Assembly and production lines
• Material-handling equipment
• Pump and compressor skids
• Mixers and processing machines
  Food and beverage production equipment
• Pharmaceutical machinery
• Automotive production equipment
• Warehouse and logistics systems
• Industrial machine safety panel replacement

Selecting the Correct Siemens 3SK1 Safety Relay

A Siemens 3SK1 relay should not be selected only by its supply voltage. The required model depends on the safety device, number of input channels, start arrangement, required output contacts and safety level of the complete machine.

The following details should be checked before placing an order:

• Complete Siemens part number
• Emergency stop, guard door or light curtain application
• Mechanical contact or electronic safety sensor
• Single-channel or dual-channel connection
• Automatic or monitored manual start
• Number of enabling outputs required
• Instantaneous or time-delayed shutdown
• Relay or electronic output requirement
• Control supply voltage
• Screw or push-in terminals
• Requirement for input or output expansion
• Required SIL or Performance Level

Buyers replacing an older safety relay should share the complete existing part number and the machine wiring diagram wherever possible. Two relays with the same supply voltage may have different safety inputs, start functions and output contacts.

Important Safety Note

A safety relay is only one part of the machine safety system. Correct protection also depends on the sensor, wiring method, contactors, feedback circuit, stopping arrangement and fault-detection requirements.

The required SIL or Performance Level applies to the complete safety function, not automatically to the relay by itself. Selection, installation, risk assessment and validation should be handled by a qualified machine-safety or control-panel professional.

Siemens 3SK1 Safety Relay Supplier and Exporter

ARP IMPEX supplies Siemens SIRIUS 3SK1 Safety Relays for machine manufacturers, automation companies, industrial panel builders, EPC contractors and plant maintenance departments.

Our supply range includes Siemens 3SK1 Standard safety relays, 3SK1 Advanced safety relays, time-delayed safety relay models and compatible output expansion modules. Current Siemens Industry Mall listings show active Standard and Advanced 3SK1 basic units with relay, electronic and delayed-output configurations.
