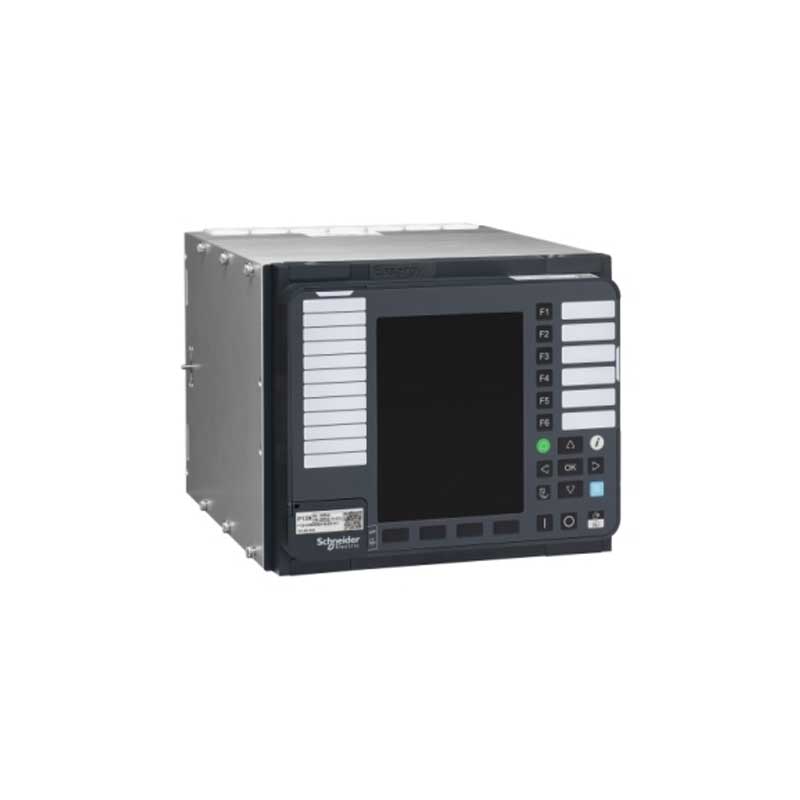

Schneider Electric MiCOM P138 Numerical Rail Catenary Protection Relay
Schneider Electric MiCOM P138 Numerical Rail Catenary Protection Relay is designed to provide directional overcurrent protection for railway power supply systems. It is used in conventional and autotransformer-fed (AT) railway networks where dependable protection of catenary feeders and traction power equipment is essential for maintaining reliable rail operations.
The MiCOM P138 combines protection, automation and communication functions in a single relay. It supports a wide range of railway protection applications and can be configured to match different operating conditions through four independent setting groups. This allows the relay to adapt to changing feeder arrangements and different network configurations without requiring major changes to the protection scheme.
The relay integrates easily with railway substations and catenary management systems through multiple communication interfaces. It also supports InterMiCOM teleprotection for fast relay-to-relay communication between line ends. Its modular construction and flexible mounting options make the MiCOM P138 suitable for both new railway projects and upgrades of existing protection systems.
Specifications
- Manufacturer: Schneider Electric
- Product Family: MiCOM Px30
- Model: MiCOM P138
- Relay Type: Numerical Rail Catenary Protection Relay
- Protection Application: Directional overcurrent protection for railway power systems
- Suitable For: Conventional and autotransformer-fed (AT) railway networks
- Directional Overcurrent Protection: Yes
- Backup Protection Functions: Yes
- Automation Functions: Supported
- Setting Groups: Four independent setting groups
- Current Input Setting: Supports both 1A and 5A CT inputs
- Communication Interfaces: Two remote communication interfaces
- InterMiCOM Teleprotection: Supported
- Information Polling: Extensive event and system information retrieval
- Mounting Options: Rack, flush panel or wall-surface mounting
- Integration: Compatible with railway substation and catenary management systems
Features
- Numerical protection relay designed for railway catenary applications.
- Provides directional overcurrent protection for railway power supply systems.
- Supports both conventional and autotransformer-fed railway networks.
- Four independent setting groups allow flexible protection settings.
- Includes backup protection and automation functions.
- InterMiCOM teleprotection enables direct relay-to-relay communication.
- Compatible with both 1A and 5A CT inputs.
- Easy integration with railway substations and network management systems.
- Modular design supports flexible installation.
- User-friendly interface simplifies configuration and operation.
Applications
- Railway catenary protection
- Railway traction substations
- Railway feeder protection
- Conventional railway power supply systems
- Autotransformer-fed (AT) railway systems
- Railway protection and automation schemes
- Rail infrastructure projects
- Railway distribution networks
Schneider Electric MiCOM P138 Numerical Rail Catenary Protection Relay provides dependable directional overcurrent protection together with communication and automation functions, making it well suited for modern railway power supply and catenary protection systems.
