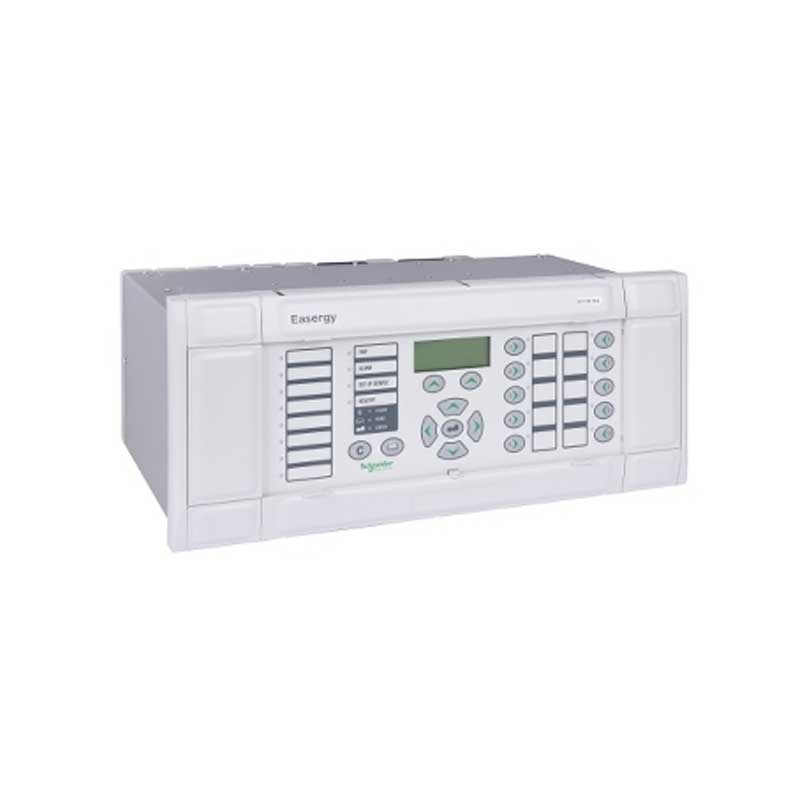

Schneider Electric Easergy MiCOM P742 Numerical Busbar Protection Relay

Schneider Electric Easergy MiCOM P742 Numerical Busbar Protection Relay is a peripheral unit designed for use with the Easergy MiCOM P74x distributed busbar protection system. Working together with the MiCOM P741 Central Unit, it provides fast, secure and dependable busbar differential protection for substations across medium, high, extra-high and ultra-high voltage networks.

The MiCOM P742 collects current measurements from connected feeders and transfers the information to the central protection unit through high-speed redundant fibre optic communication. This distributed architecture improves system flexibility while maintaining fast fault detection and selective tripping during internal busbar faults.

Designed for modern substation automation, the MiCOM P742 supports complex busbar arrangements and can be integrated into systems with multiple differential zones. Its compact design, reliable communication and compatibility with IEC 61850 make it suitable for both new substations and retrofit projects.

Specifications

• Manufacturer: Schneider Electric
• Product Family: Easergy MiCOM
• Model: MiCOM P742
• Relay Type: Numerical Busbar Protection Peripheral Unit
• Protection Application: Distributed busbar differential protection
• System Configuration: Works with MiCOM P741 Central Unit
• Suitable For: MV, HV, EHV and UHV substations
• Architecture: Distributed busbar protection scheme
• Differential Zones: Supports multiple protection zones
• Communication Between Units: Redundant high-speed fibre optic communication
• Current Transformer Compatibility: Supports various CT types
• Dynamic Topology Processing: Supported through the P74x system
• CT Saturation Detection: Supported within the protection scheme
• Event Recording: Supported
• Communication Interfaces: Serial and Ethernet
• Communication Protocols: IEC 61850-8-1 and IEC 60870-5-103
• Integration: SCADA and digital substation compatible

Features

• Peripheral unit for the Easergy MiCOM P74x busbar protection system.
• Works with the MiCOM P741 Central Unit for distributed protection.
• Supports high-speed busbar differential protection.
• Redundant fibre optic communication improves system reliability.
• Suitable for single, double and complex busbar configurations.
• Compatible with a wide range of current transformer types.
• Supports dynamic topology processing within the P74x platform.
• IEC 61850 communication enables digital substation integration.
• Event recording assists fault analysis and maintenance.
• Modular design simplifies installation and future expansion.

Applications

• Distributed busbar protection systems
• Utility substations
• Industrial substations
• High-voltage substations
• Extra-high-voltage substations
• Ultra-high-voltage transmission systems
• Power generation facilities
• Digital substations
• Multi-zone busbar protection schemes

Schneider Electric Easergy MiCOM P742 Numerical Busbar Protection Relay forms an important part of the MiCOM P74x distributed protection platform, providing dependable communication, flexible system architecture and fast response for modern busbar protection applications.
