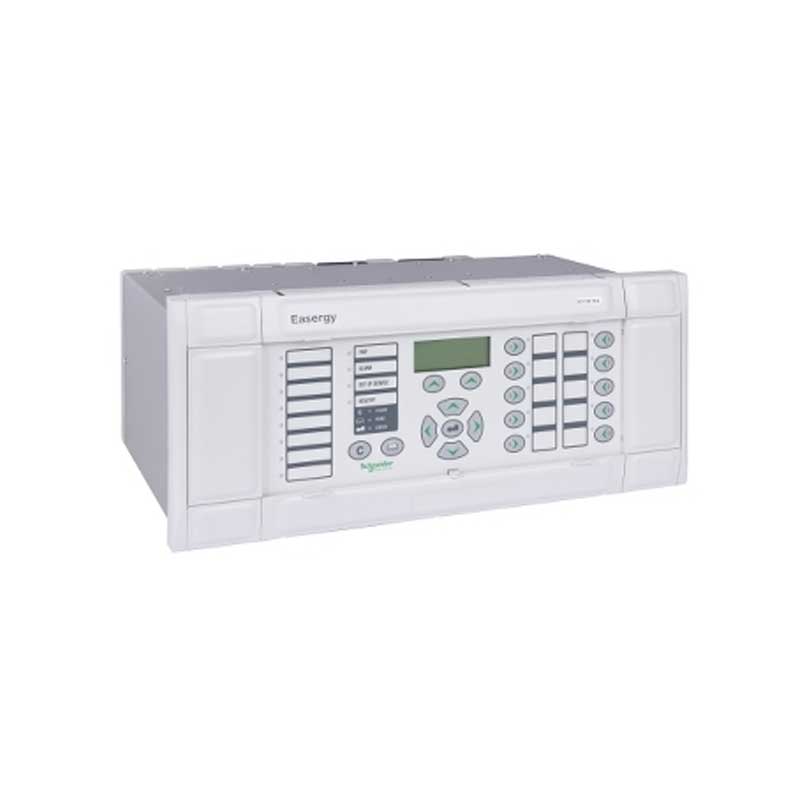

Schneider Electric Easergy MiCOM P643 Numerical Transformer Protection Relay

Schneider Electric Easergy MiCOM P643 Numerical Transformer Protection Relay is designed to provide reliable protection, monitoring and control for three-winding transformers and autotransformers used in utility and industrial power systems. It combines high-speed differential protection with advanced monitoring functions to help safeguard valuable transformer assets and improve system reliability.

The MiCOM P643 detects internal transformer faults quickly, reducing the possibility of serious winding or core damage. In addition to transformer differential protection, it includes restricted earth fault protection, thermal overload protection, overfluxing protection and backup overcurrent protection. These functions help operators identify abnormal operating conditions early and schedule maintenance before minor issues develop into major failures.

Built on the Easergy MiCOM platform, the P643 supports IEC 61850 communication, Ethernet redundancy and modern cybersecurity features for easy integration into digital substations. Its flexible configuration, comprehensive event recording and asset monitoring capabilities make it suitable for new installations as well as transformer protection upgrades.

Specifications

• Manufacturer: Schneider Electric
• Product Family: Easergy MiCOM
• Model: MiCOM P643
• Relay Type: Numerical Transformer Protection Relay
• Protection Application: Three-winding transformers and autotransformers
• Main Protection: Transformer differential protection
• Restricted Earth Fault Protection: Supported
• Thermal Overload Protection: Supported
• Overfluxing Protection: Supported
• Backup Overcurrent Protection: Supported
• Current Transformer Inputs: Supports multiple three-phase CT inputs
• Voltage Transformer Input: Optional three-phase VT input
• Directional Overcurrent Protection: Supported with optional VT input
• Transformer Monitoring: Asset monitoring and thermal supervision
• Event Recording: Supported
• Disturbance Recording: Supported
• Communication Interfaces: Serial and Ethernet
• Communication Protocols: IEC 61850 Edition 1 & 2, Modbus, DNP3 and IEC 60870-5-103
• Ethernet Redundancy: PRP and HSR
• IRIG-B Time Synchronisation: Supported
• Cybersecurity: IEC 62351 compliant
• Integration: SCADA and digital substation compatible

Features

• Numerical relay designed for three-winding transformers and autotransformers.
• High-speed transformer differential protection.
• Restricted earth fault protection for improved fault detection.
• Thermal overload and overfluxing protection help extend transformer service life.
• Integrated backup overcurrent protection.
• Asset monitoring assists preventive maintenance planning.
• Optional voltage transformer input enables directional protection functions.
• IEC 61850 communication supports digital substation integration.
• PRP and HSR Ethernet redundancy improve communication reliability.
• Event and disturbance recording simplify fault analysis.

Applications

• Three-winding power transformers
• Autotransformers
• Utility substations
• Industrial substations
• Power generation plants
• Transmission and distribution networks
• Renewable energy substations
• Digital substations

Schneider Electric Easergy MiCOM P643 Numerical Transformer Protection Relay provides fast fault detection, advanced transformer monitoring and dependable communication capabilities, making it a reliable solution for protecting critical transformer installations in modern power systems.
