Schneider Easergy P1 Protection Relays
Schneider Easergy P1 Protection Relays Suppliers,Exporters in India

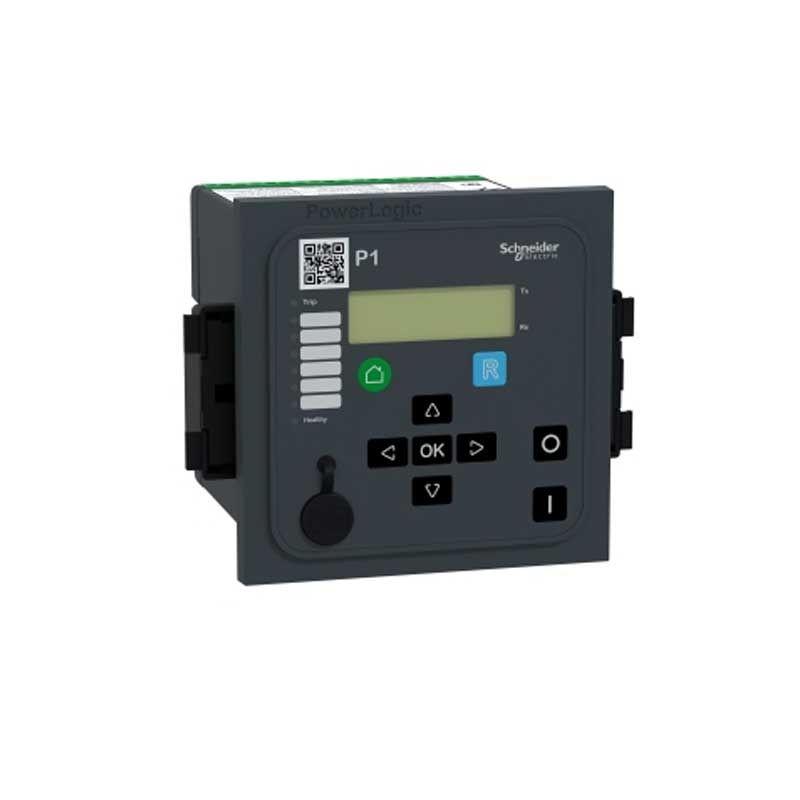

Schneider Easergy P1 Protection Relays are compact numerical relays used for basic current, earth fault, voltage and frequency protection in medium-voltage and selected low-voltage distribution systems. The small relay case is useful for compact switchgear panels, retrofit jobs and installations where panel space is limited. Schneider now lists this range under the PowerLogic P1 name, although Easergy P1 is still commonly used in older specifications and buyer enquiries.
The range is split into two main versions. P1F handles feeder, overcurrent and earth fault protection, while P1V covers voltage and frequency protection duties. Different catalogue numbers are available with varying auxiliary supply ranges, current or voltage inputs, digital inputs and outputs, RS485 communication and USB connectivity.
P1 relays work well in straightforward protection schemes where a larger, high-end relay would add unnecessary cost and complexity. Operators can check measurements, alarms and relay status from the front panel, while settings can be entered through the keypad or Schneider’s Easergy Pro engineering software.
Models Covered
Easergy P1F / PowerLogic P1F
P1F relays are used mainly for:
- Feeder protection
- Phase overcurrent protection
- Earth fault protection
- Transformer backup protection
- Overload and broken conductor protection
- Circuit breaker failure protection
- Automatic reclosing on selected versions
- Directional protection on selected configurations
The functions and hardware vary according to the exact REL15xxx catalogue number.
Easergy P1V / PowerLogic P1V
P1V relays are used mainly for:
- Overvoltage protection
- Undervoltage protection
- Overfrequency protection
- Underfrequency protection
- Voltage supervision
- Frequency supervision
- Voltage-based control and tripping
- Utility and industrial distribution monitoring
P1V references are available with different VT inputs, auxiliary supplies, communication ports and digital I/O arrangements.
Specifications
- Product Name: Schneider Easergy P1 Protection Relays
- Current Range Name: PowerLogic P1
- Relay Type: Compact Numerical Protection Relay
- Main Series: P1F and P1V
- Network Application: Medium-voltage and selected low-voltage systems
- P1F Functions: Overcurrent, earth fault, overload, broken conductor and breaker failure
- protection; directional and autoreclose functions on selected versions
- P1V Functions: Voltage and frequency protection
- Auxiliary Supply: Different low- and wide-range AC/DC supply options, depending on the reference
- Inputs: CT inputs on P1F and VT inputs on P1V
- Digital I/O: Multiple combinations available according to the catalogue number
- Communication: RS485 and USB on selected models
- Configuration: Front keypad or Easergy Pro software
- Mounting: Flush panel mounting with spring-clip fixing
- Internal Protection: IP20 internal casing protection
- Catalogue References: Schneider REL150xx range
Features
- Compact construction for panels with limited space
- Separate versions for current-based and voltage-based protection
- Phase overcurrent and earth fault protection through the P1F range
- Voltage and frequency supervision through the P1V range
- Directional protection available on selected configurations
- Breaker failure and autoreclose functions on selected P1F models
- Front keypad for local setting and operation
- USB and RS485 connectivity on selected references
- Configuration through Schneider Easergy Pro software
- Multiple digital input and output combinations
- Quick panel fixing using supplied spring clips
- Suitable for standard feeder, transformer backup and voltage supervision duties
Applications
- Medium-voltage feeder panels
- Ring main units
- Industrial substations
- Utility distribution substations
- Transformer incomer and backup protection
- Overhead distribution feeders
- Underground cable feeders
- Commercial building power systems
- Manufacturing plants
- Water and wastewater facilities
- Oil and gas installations
- Mining and process plants
- Renewable energy distribution panels
- Protection relay replacement and switchgear retrofit work
Supply and Export of Easergy P1 Relays
We supply Schneider Easergy P1 and PowerLogic P1 protection relays for industrial panels, distribution substations, infrastructure projects and replacement requirements. Buyers can share the complete REL15xxx part number, relay nameplate photograph, auxiliary supply, CT or VT input details, communication requirement and quantity for an accurate quotation.
The exact catalogue number matters because P1 relays are available with different input ranges, digital I/O combinations and communication options. Some older Easergy-labelled references may also have a newer PowerLogic reference or replacement status in particular markets, so availability should be checked against the full part number before ordering.
