Siemens Reyrolle 7SR51 Overcurrent and Feeder Protection Relay

Siemens Reyrolle 7SR51 Overcurrent and Feeder Protection Relay Suppliers,Exporters in India

ARP IMPEX supplies and exports Siemens Reyrolle 7SR51 Overcurrent and Feeder Protection Relays for medium-voltage substations, industrial distribution systems, utility projects and switchgear-panel requirements. Buyers can share the complete Siemens article number, relay configuration and destination country for price and availability.

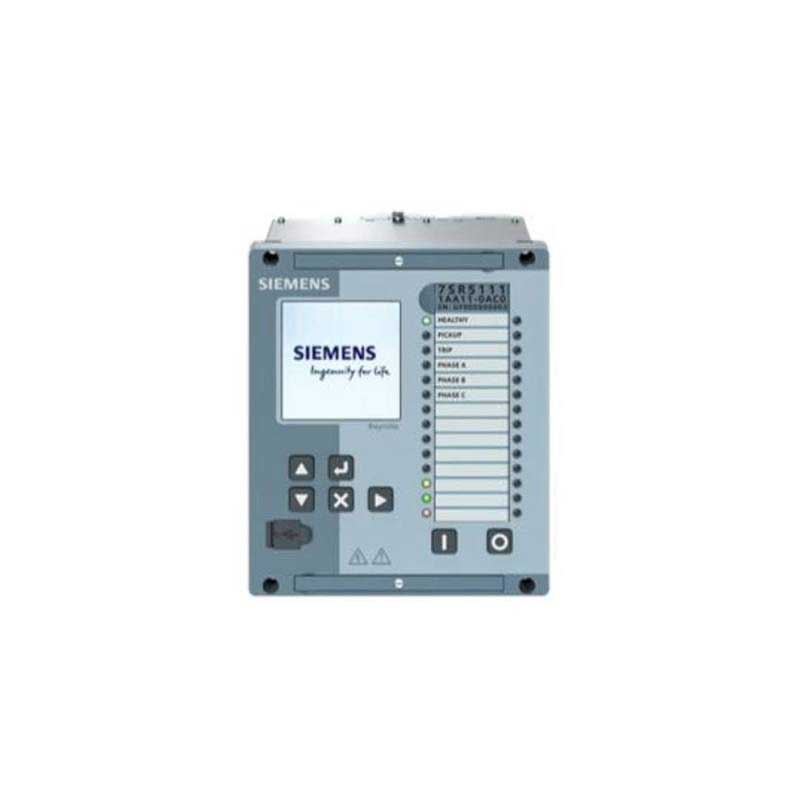

The Reyrolle 7SR51 is a numerical protection relay used for overcurrent, earth-fault and feeder protection. It can operate as the main protection relay for an MV feeder or as backup protection for transformers, generators, motors, busbars and transmission or distribution lines.

The relay is available with different current inputs, voltage inputs, binary inputs, output contacts and communication options. Variants without voltage inputs cover standard non-directional overcurrent and earth-fault duties. Models with VT inputs can handle directional protection, voltage protection, frequency monitoring, synchro-check and other feeder-management functions.

IEC 61850 Ethernet communication comes as part of the 7SR51 platform. Depending on the selected configuration, the relay can also communicate through Modbus, DNP3 and IEC 60870-5-103. This makes it suitable for new digital substations as well as industrial plants upgrading older protection panels.

A large LCD, programmable LEDs and front pushbuttons allow operators to view measurements, alarms and breaker status directly from the panel. The withdrawable relay element also helps during testing or replacement because the main panel wiring can remain in place.

Technical Specifications

• Brand: Siemens
• Product family: Reyrolle 5
• Series: 7SR51
• Product type: Numerical overcurrent and feeder protection relay
• Main protection duties: Overcurrent, earth fault and feeder protection
• Current inputs: Four or five, depending on the model
• CT compatibility: Combined 1 A and 5 A current inputs
• Voltage inputs: Zero or four, depending on the configuration
• Binary inputs: Up to 39
• Binary outputs: Up to 20, including the device-health contact
• Arc-flash detector inputs: Up to three on applicable versions
• Temperature sensor inputs: Up to eight on applicable configurations
• High-speed outputs: Available on selected variants
• Heavy-duty outputs: Available on selected variants
• Display: Backlit 128 × 128 LCD
• Indication: Up to 28 programmable tri-colour LEDs
• Front communication: USB port
• Rear communication: RS485 and Ethernet, depending on the model
• Ethernet options: Electrical RJ45 or optional optical connections
• Protocols: IEC 61850, IEC 60870-5-103, Modbus RTU, Modbus TCP, DNP3 and DNP3 TCP
• Network redundancy: HSR, PRP and RSTP support
• Housing sizes: Size 6, 8 or 12, depending on the selected variant
• Construction: Withdrawable relay design
• Configuration software: Reydisp Manager 2
• Security functions: Role-based access, signed firmware, security logging and encrypted access
• Optional construction: Conformal coating available against selected ordering codes

The number of CT inputs, VT inputs, binary inputs, outputs and communication ports changes with the full Siemens ordering code. These details should be confirmed before submitting a quotation or selecting a replacement relay.

Main Protection Functions

The Siemens 7SR51 range can cover standard feeder protection as well as more detailed substation requirements. Available functions include:

• Instantaneous overcurrent protection
• Time-delayed overcurrent protection
• Earth-fault protection
• Sensitive earth-fault protection
• Directional overcurrent and earth-fault protection on applicable models
• Negative-sequence overcurrent protection
• Broken-conductor detection
• Thermal overload protection
• Undercurrent protection
• High-speed overcurrent and earth-fault elements
• Circuit-breaker failure protection
• Switch-onto-fault protection
• Cold-load pickup
• CT supervision
• Trip-circuit and close-circuit supervision
• Automatic reclosing
• Lockout
• Restricted earth-fault protection
• Arc-flash detection with the required external components

Models fitted with voltage inputs can also provide undervoltage, overvoltage, neutral-voltage displacement, frequency, rate-of-change-of-frequency, synchro-check, power and directional protection functions. The exact function package depends on the selected 7SR51 configuration.

Features

• Combined 1 A and 5 A CT inputs simplify relay selection.
• Multiple configurations cover basic feeders as well as advanced protection schemes.
• Directional and non-directional protection versions are available.
• IEC 61850 communication supports integration with modern substation systems.
• Ethernet redundancy options help maintain communication during a network fault.
• Front USB access makes local configuration and data retrieval easier.
• The LCD can display measurements, text, alarms and single-line mimic diagrams.
• Programmable LEDs provide clear trip, alarm and equipment-status indication.
• The withdrawable relay element reduces disruption during maintenance or replacement.
• Fault, event and waveform records help engineers investigate a trip.
• Automatic reclosing can restore supply after a temporary feeder fault.
• Configurable logic allows the relay to work with different protection and control schemes.
• Arc-flash detector inputs are available for suitable switchgear applications.
• Optional temperature inputs can monitor connected plant conditions.
• Conformal-coated versions can be ordered for more demanding operating environments.
• Security controls help restrict unauthorised access to relay settings.

Siemens lists IEC 61850 Editions 1 and 2, HSR, PRP, RSTP, role-based access and encrypted WebUI access among the 7SR51 platform capabilities.

Applications

• Siemens Reyrolle 7SR51 Overcurrent and Feeder Protection Relays are commonly used for:
• Medium-voltage incoming and outgoing feeders
• Utility distribution substations
• Industrial power-distribution systems
• Radial and interconnected feeder networks
• Transformer backup protection
• Generator backup protection
• Motor backup protection
• Busbar backup protection
• Cable and overhead-line feeders
• Ring and parallel distribution systems
• Renewable-energy substations
• Solar and wind power evacuation feeders
• Oil and gas electrical distribution systems
• Petrochemical and refinery substations
• Steel, cement and mining plants
• Water and wastewater treatment plants
• Data-centre and infrastructure power systems
• Railway and metro electrical networks
• Switchgear retrofit and protection-panel replacement projects

The 7SR51 can also be configured for earth-fault detection in isolated and compensated networks, blocked-overcurrent schemes, automatic reclosing and high-speed tripping with arc-fault detection equipment.

Available Reyrolle 7SR51 Configurations

The 7SR51 is not supplied as a standard relay for every feeder. Its hardware and function requirements must match the protection scheme.

Typical configurations include:

• Four-current-input overcurrent and earth-fault relays
• Five-current-input models for additional measured earth-fault protection
• Models without VT inputs for standard feeder protection
• Models with four VT inputs for directional, voltage and frequency functions
• Variants with additional binary inputs and outputs
• Models with arc-flash detector inputs
• Models with temperature sensor inputs
• Electrical or optical Ethernet versions
• Size 6, size 8 and size 12 housings
• Conformal-coated versions for specified project conditions

The five-CT version can provide separate measured standby earth-fault protection, including applications involving transformer earthing resistors.

Selecting the Correct Siemens 7SR51 Relay

A Siemens Reyrolle 7SR51 relay should not be selected only by the series name. Two units may look similar from the front but have different current inputs, voltage inputs, communication ports and output arrangements.

For accurate selection, provide:

• Complete Siemens MLFB or article number
• Required protection scheme
• CT secondary rating and number of CT inputs
• VT secondary rating and number of voltage inputs
• Auxiliary supply voltage
• Required binary inputs and outputs
• Circuit-breaker control requirement
• Directional or non-directional protection
• Sensitive earth-fault requirement
• Automatic reclosing requirement
• IEC 61850 or other communication protocol
• Electrical or optical Ethernet requirement
• Arc-flash detector input requirement
• Temperature input requirement
• Housing size and panel cut-out
• Conformal coating requirement
• Quantity and delivery country

For a replacement enquiry, share photographs of the relay label, the complete article number, existing wiring details, and the relay setting file where available.

Siemens Reyrolle 7SR51 Supplier and Exporter in India

ARP IMPEX supplies Siemens Reyrolle 7SR51 Numerical Protection Relays for utilities, EPC contractors, switchgear manufacturers, industrial plants and electrical maintenance companies.

We can quote the Siemens 7SR51 feeder protection relay price against the exact configuration required by the project. Since the series has several hardware variants, quotations should be based on the complete Siemens ordering code rather than only the description “7SR51 relay.

Buyers looking for a Siemens Reyrolle 7SR51 relay supplier in India, an IEC 61850 feeder protection relay exporter, or a numerical overcurrent relay for an MV substation can send the part number, technical specification, quantity and delivery destination for review.
