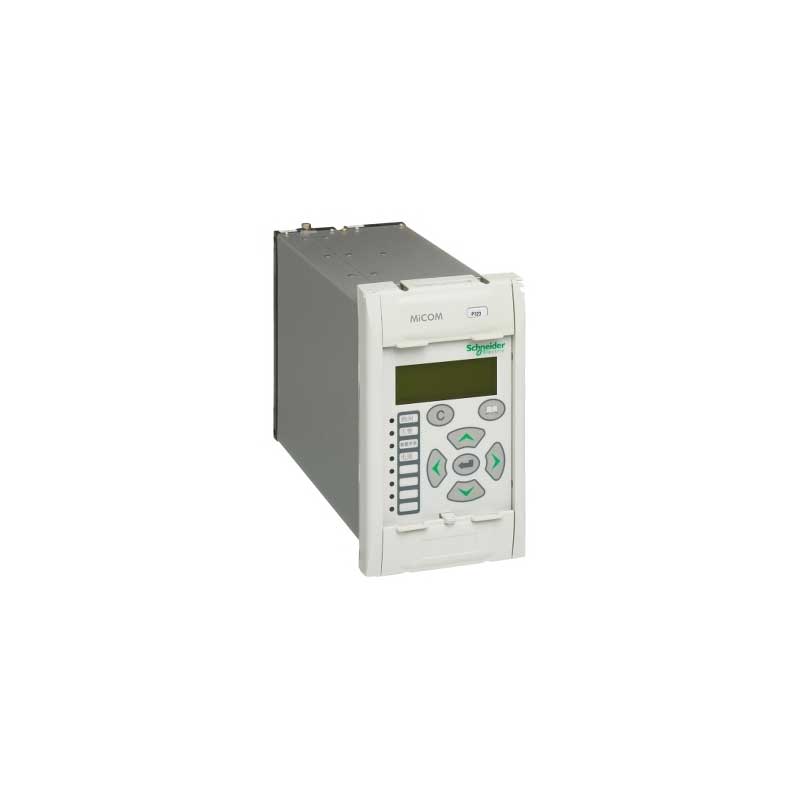

Schneider Electric PowerLogic™ MiCOM P120 Feeder Protection Relay
Schneider Electric PowerLogic™ MiCOM P120 Feeder Protection Relay forms part of the MiCOM P12x protection relay family developed for medium-voltage distribution networks. The relay combines feeder protection, monitoring, and fault recording functions in a compact platform suitable for utility and industrial applications.
Distribution feeders face a variety of operating conditions, including overloads, phase faults, and earth faults. The MiCOM P120 helps operators detect these conditions quickly and isolate affected sections before they impact the rest of the network. Its numerical design provides accurate measurement and protection while maintaining a simple operating philosophy.
The relay also stores fault and event information that can assist maintenance teams during troubleshooting and network analysis. Utilities, substations, industrial plants, and infrastructure projects commonly use the MiCOM P120 series as part of their feeder protection schemes.
Specifications
- Manufacturer: Schneider Electric
- Product Family: PowerLogic™ MiCOM
- Series: P120
- Relay Type: Numerical Feeder Protection Relay
- Protection Application: Feeder Protection
- Protection Functions: Overcurrent Protection and Earth Fault Protection
- Technology: Digital / Numerical Relay
- Event Recording: Yes
- Fault Recording: Yes
- Installation: Medium Voltage Switchgear and Protection Panels
- Communication: Available depending on model configuration
Features
- Numerical feeder protection platform.
- Overcurrent and earth fault protection functions.
- Event and fault recording capabilities.
- Continuous feeder monitoring.
- Compact design for switchgear installations.
- Supports protection coordination within distribution systems.
- Communication options available depending on model.
- Suitable for utility and industrial applications.
Applications
- Distribution Feeders
- Utility Substations
- Medium Voltage Switchgear
- Industrial Power Distribution Systems
- Infrastructure Projects
- Water and Wastewater Facilities
- Electrical Protection Panels
- Power Distribution Networks
