ABB SPAA 342 C Feeder Protection Relay

ABB SPAA 342 C Feeder Protection Relay Supplier and Exporter in India

ABB SPAA 342 C Replacement and Legacy Spare Availability

Replacement: ABB SPAA 342 C is discontinued. For an existing installation, the complete ABB order code and relay nameplate should be checked to identify the correct legacy replacement. ABB does not currently list SPAA 342 C in its SPACOM-to-REX615 retrofit program.

Description

ARP IMPEX supplies and exports ABB SPAA 342 C feeder protection relays for replacement, maintenance stock and existing medium-voltage switchgear installations.

SPAA 342 C belongs to ABB’s older SPACOM feeder protection range. It was used on radial distribution feeders in isolated-neutral, resistance-earthed and resonant-earthed networks. The relay covers overcurrent, short-circuit, sensitive earth-fault and phase discontinuity protection. Depending on the version, directional earth-fault protection and automatic reclosing are also included.

A useful difference between SPAA 342 C and SPAA 341 C is the earth-fault input arrangement. ABB designed SPAA 342 C for applications where more sensitive non-directional earth-fault protection was required. Its 0.2 A tapping made it particularly useful where the standard earth-fault arrangement of SPAA 341 C did not provide enough sensitivity.

SPAA 342 C is no longer an active ABB product, so current requirements normally come from utilities and industrial plants that already have these relays installed. Buyers may be looking for an ABB SPAA 342 C replacement relay, matching shutdown spare, maintenance stock or a specific C1, C2 or C3 version.

If you have an existing relay, send us the complete ABB order number and a clear nameplate photograph. This is much more useful for checking availability than simply sending “SPAA 342 C – 1 No.”

Technical Specifications

• Brand: ABB
• Series: SPACOM / SPAA

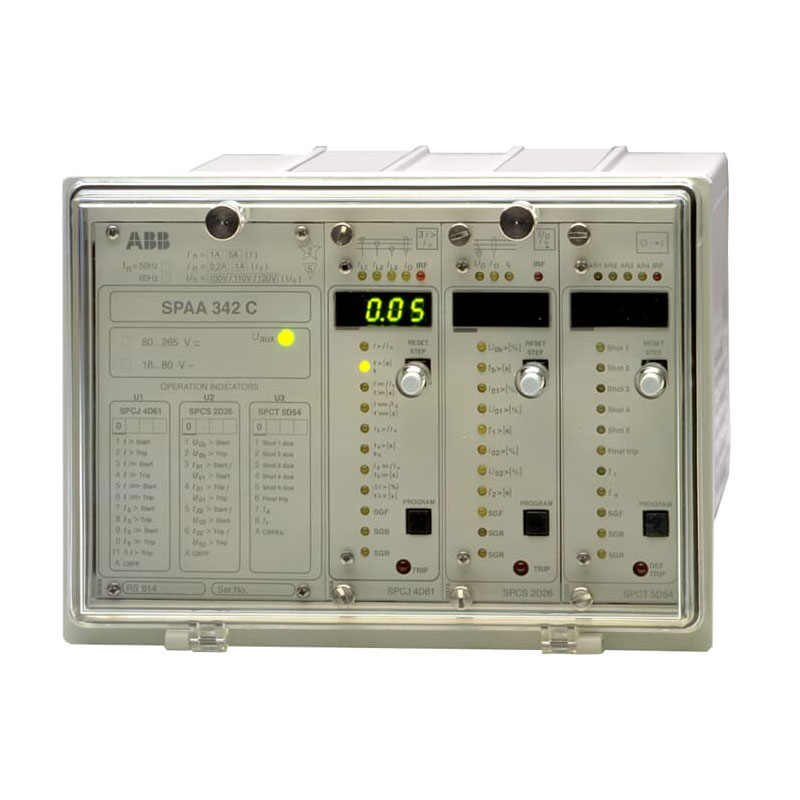

• Model: SPAA 342 C
• Product type: Feeder protection relay
• Product status: Not active since 2007
• Main use: Medium-voltage radial feeder protection
• Phase current inputs: 1 A / 5 A
• Sensitive earth-fault input: 0.2 A / 1 A
• Residual voltage input: 100 V / 110 V / 120 V
• Rated frequency: 50 Hz or 60 Hz, depending on order code
• Overcurrent protection: Three stages
• Earth-fault protection: Sensitive non-directional plus directional functions depending on version
• Residual overvoltage protection: Available
• Phase discontinuity protection: Available
• Circuit-breaker failure protection: Available
• Autoreclosing: Up to five successive shots on versions fitted with the autoreclose module
• Communication: SPA serial interface
• Auxiliary supply: 80–265 V AC/DC or 18–80 V DC, depending on version
• Enclosure protection: IP54

For an exact spare, the full ABB order code should be checked because the relay configuration, frequency and auxiliary supply can vary.

Features

• Sensitive non-directional earth-fault protection
• 0.2 A earth-fault current tapping
• Three-stage overcurrent protection
• Short-circuit protection
• Directional earth-fault protection on applicable versions
• Residual overvoltage supervision
• Phase discontinuity protection
• Circuit-breaker failure protection
• Multi-shot autoreclosing on equipped versions
• Circuit-breaker condition monitoring with the autoreclose arrangement
• Local LED and digital fault indication
• SPA communication with higher-level systems
• Hardware and software self-supervision

For most SPAA 342 C replacement enquiries, detailed protection settings are not required at the first stage. The model, complete order code, nameplate, quantity and destination are normally enough to start checking a spare.

Applications

SPAA 342 C was mainly used for:

• Medium-voltage feeder protection
• Radial distribution feeders
• Sensitive earth-fault protection
• Isolated-neutral distribution systems
• Resistance-earthed networks
• Resonant-earthed networks
• Industrial distribution switchgear
• Utility substations
• Short-circuit protection
• Phase discontinuity supervision
• Directional earth-fault protection
• Circuit-breaker autoreclosing
• Existing ABB SPACOM panels
• Plant maintenance and shutdown spares

ABB specifically states that SPAA 342 C was intended for applications where the non-directional earth-fault protection of SPAA 341 C was not sensitive enough.

ABB SPAA 342 C Models

SPAA 342 C is a small product family rather than only one fixed configuration. ABB documentation identifies four main versions.

ABB SPAA 342 C

The complete version includes the main protection modules, directional earth-fault protection and the autoreclose module.

Order-number group: RS 614 111

ABB SPAA 342 C1

SPAA 342 C1 is supplied without the autoreclose module.

Order-number group: RS 614 112

This version may be found where automatic circuit-breaker reclosing was not required.

ABB SPAA 342 C2

SPAA 342 C2 is supplied without the directional earth-fault module, but retains the autoreclose module.

Order-number group: RS 614 113

ABB SPAA 342 C3

SPAA 342 C3 is supplied without the directional earth-fault module and without the autoreclose module.

Order-number group: RS 614 114.

For buyers sourcing an old relay, this distinction is important. SPAA 342 C, C1, C2 and C3 should not automatically be treated as identical replacements.

ABB SPAA 342 C Order Codes

ABB documented the standard versions as:

• SPAA 342 C: RS 614 111-AA / CA / DA / FA
• SPAA 342 C1: RS 614 112-AA / CA / DA / FA
• SPAA 342 C2: RS 614 113-AA / CA / DA / FA
• SPAA 342 C3: RS 614 114-AA / CA / DA / FA

Versions supplied with the RTXP test adapter used:

• SPAA 342 C: RS 614 311
• SPAA 342 C1: RS 614 312
• SPAA 342 C2: RS 614 313
• SPAA 342 C3: RS 614 314.

ABB SPAA 342 C Replacement

ABB lists SPAA 342 C as not active since 2007 and also includes it among its medium-voltage legacy protection relays.

Current enquiries may therefore be for:

• Failed SPAA 342 C replacement
• SPAA 342 C1, C2 or C3 matching spare
• Emergency feeder relay replacement
• Maintenance inventory
• Plant shutdown stock
• Existing SPACOM switchgear spare

For an exact legacy replacement, please send:

• Complete ABB order code
• Exact model: C, C1, C2 or C3
• Clear nameplate photograph
• Quantity
• Destination country
• Required delivery date

Is REX615 a Direct Replacement for SPAA 342 C?

ABB’s current SPACOM-to-REX615 retrofit program covers selected SPACOM relays. SPAA 342 C is not presently included in the published supported-model list. SPAA 341 C is included, but this should not be extended to SPAA 342 C without ABB confirmation.

For that reason, we would not advertise REX615 as an official direct retrofit for SPAA 342 C.

When the requirement is for an existing panel, the first step should be checking the original SPAA 342 C version and complete nameplate details.

Why Buy ABB SPAA 342 C from ARP IMPEX?

ARP IMPEX supports international buyers looking for legacy ABB protection relays for existing switchgear and maintenance requirements.

We can assist with:

• ABB SPAA 342 C part-code checking
• SPAA 342 C1, C2 and C3 identification
• Nameplate matching
• Legacy spare availability
• Failed relay replacement enquiries
• Single and multiple quantity requirements
• Plant shutdown and maintenance spares
• ABB technical documentation
• Export packing
• International shipping

We handle enquiries from utilities, EPC contractors, industrial plants, power companies, maintenance contractors, panel builders and electrical traders.

Request a Quote for ABB SPAA 342 C

For ABB SPAA 342 C price and availability, please send:

• Complete ABB SPAA 342 C order number
• Exact version — C, C1, C2 or C3
• Clear relay nameplate photograph
• Quantity required
• Destination country
• Required delivery date

If the part code is difficult to read, send us clear photographs of the nameplate and relay front.

Send your ABB SPAA 342 C part code, quantity and destination country to ARP IMPEX for legacy spare availability, replacement checking and export quotation.
