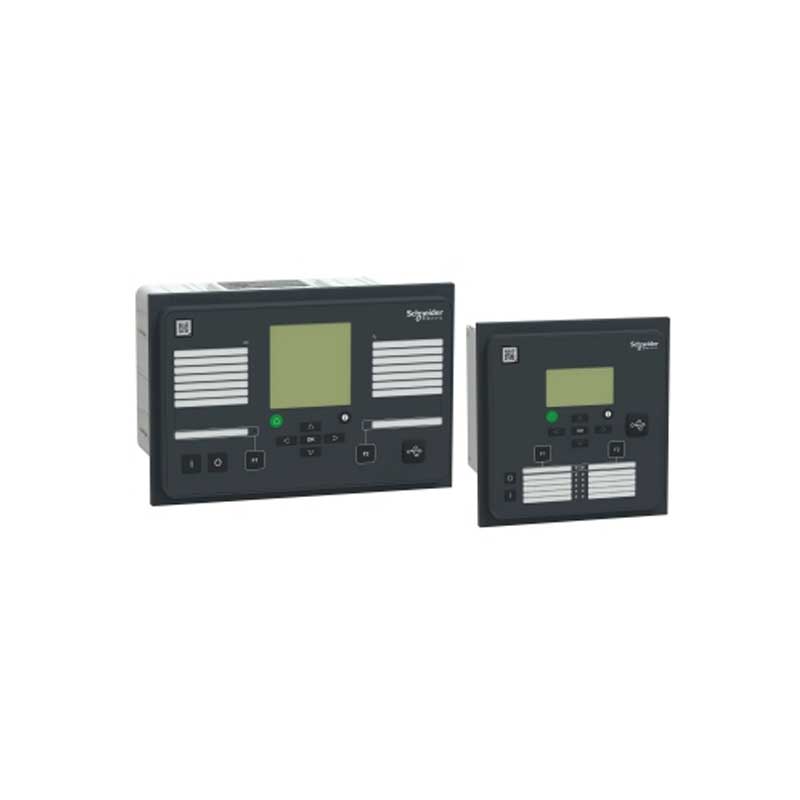

Schneider Electric PowerLogic™ P3M32 Motor Differential Protection Relay

The Schneider Electric PowerLogic™ P3M32 Motor Differential Protection Relay is designed to provide advanced protection for medium and high-voltage motors operating in demanding industrial environments. In addition to standard motor protection functions, it incorporates motor differential protection, allowing faster and more accurate detection of internal motor faults before they develop into major equipment failures.

The relay continuously monitors motor operating conditions and reacts quickly to overloads, earth faults, phase imbalance, locked rotor conditions and winding faults. By combining differential protection with thermal monitoring and comprehensive motor protection functions, the P3M32 helps improve motor reliability while reducing maintenance costs and unplanned production downtime.

As part of the PowerLogic™ P3 family, the relay supports modern communication protocols for seamless integration with SCADA, DCS and substation automation systems. Its intuitive interface, programmable logic and detailed event recording make configuration, commissioning and diagnostics straightforward for plant engineers and maintenance teams.

Specifications

• Manufacturer: Schneider Electric
• Product Family: PowerLogic™ P3
• Model: P3M32
• Relay Type: Motor Differential Protection Relay
• Protection Application: Medium and High Voltage Motors
• Motor Types: Induction Motors and Synchronous Motors
• Protection Functions: Motor Differential Protection, Thermal Overload, Locked Rotor, Stall Protection, Phase Overcurrent, Earth Fault, Phase Unbalance, Negative Sequence Overcurrent, Undercurrent, Overvoltage, Undervoltage, Frequency Protection and Breaker Failure Protection
• Differential Protection: Integrated
• Motor Monitoring: Supported
• Communication Protocols: IEC 61850 Edition 1 & Edition 2, Modbus, DNP3 and IEC 60870-5-103
• Communication Interfaces: Serial and Ethernet
• Circuit Breaker Control: Integrated
• Event Recording: Supported
• Fault Recording: Supported
• Disturbance Recording: Supported
• Programmable Logic: Supported
• Time Synchronization: Supported
• Human Machine Interface: LCD Display with Programmable Function Keys and LED Indications
• Mounting: Flush Panel Mounting

Features

• Advanced motor differential protection for critical motor applications.
• Detects internal winding faults with high accuracy.
• Thermal overload protection helps extend motor operating life.
• Protects against locked rotor, stalled motor and excessive starting time.
• Phase imbalance and negative sequence protection improve motor reliability.
• Integrated earth fault and overcurrent protection.
• Built-in breaker failure protection and programmable logic.
• Event, disturbance and fault recording simplify troubleshooting.
• Supports IEC 61850, Modbus, DNP3 and IEC 60870-5-103 communication protocols.
• Easy integration with SCADA, DCS and substation automation systems.
• User-friendly interface with programmable LEDs and configurable settings.
• Suitable for both new installations and retrofit projects.

Applications

• Medium-voltage motor protection
• High-voltage motor protection
• Industrial motor control centres
• Power generation plants
• Oil and gas facilities
• Mining and mineral processing plants
• Cement manufacturing plants
• Steel and metal industries
• Water and wastewater treatment facilities
• Chemical and petrochemical industries

The Schneider Electric PowerLogic™ P3M32 Motor Differential Protection Relay provides dependable protection for critical motors where reliability is essential. Its combination of differential protection, comprehensive motor protection functions and intelligent monitoring helps improve equipment availability while reducing the risk of costly motor failures.
