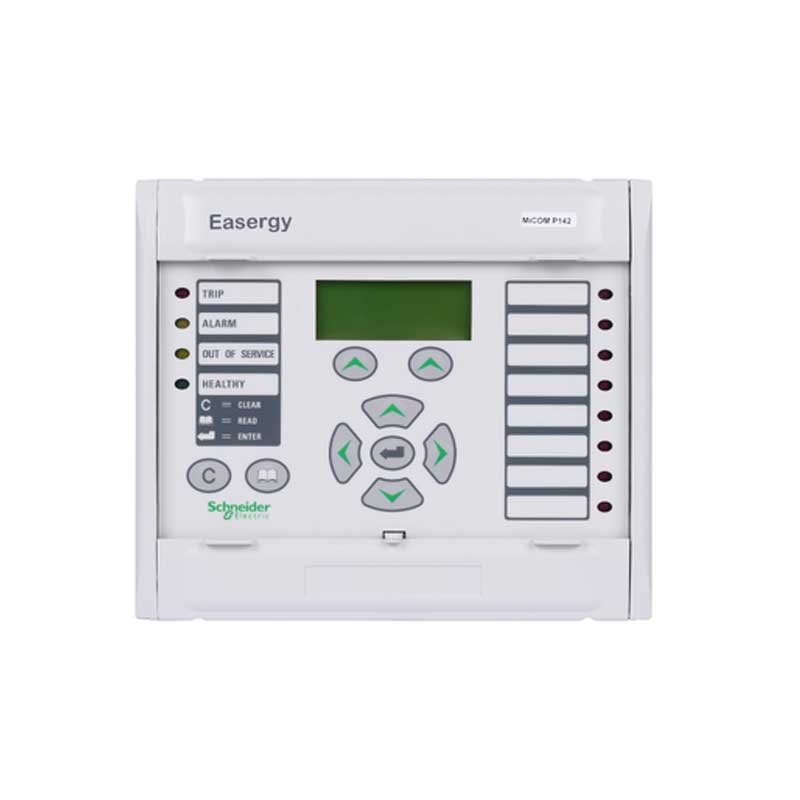

Schneider Electric Easergy MiCOM P544 Numerical Current Differential Protection Relay

Schneider Electric Easergy MiCOM P544 Numerical Current Differential Protection Relay is designed to provide fast and dependable protection for overhead transmission lines and underground cable systems. It combines high-speed current differential protection with integrated distance protection, making it suitable for high-voltage, extra-high-voltage and ultra-high-voltage transmission networks where secure and selective fault clearance is essential.

The MiCOM P544 continuously compares current measurements from both ends of the protected line to identify internal faults with excellent speed and accuracy. In addition to differential protection, it incorporates five-zone subcycle distance protection, directional earth fault protection, overcurrent protection and auto-reclose functions, providing comprehensive main and backup protection for transmission systems.

Designed for complex substation layouts, the MiCOM P544 is particularly suitable for breaker-and-a-half and dual circuit breaker applications. It supports direct fibre optic and multiplexed communication channels, IEC 61850 communication and advanced automation features, allowing easy integration into modern digital substations and SCADA systems.

Specifications

• Manufacturer: Schneider Electric
• Product Family: Easergy MiCOM
• Model: MiCOM P544
• Relay Type: Numerical Current Differential Protection Relay
• Protection Application: Transmission line and underground cable protection
• Suitable For: HV, EHV and UHV transmission networks
• Main Protection: High-speed current differential protection
• Distance Protection: Integrated five-zone subcycle distance protection
• Directional Earth Fault Protection: Supported
• Overcurrent Protection: Supported
• Auto-Reclose: Supported
• Check Synchronism: Supported
• Fault Locator: Integrated
• Breaker Configuration: Dual circuit breaker and breaker-and-a-half applications
• Communication Channel: End-to-end longitudinal communication
• Communication Media: Direct fibre optic and multiplexed digital links
• Event Recording: Supported
• Disturbance Recording: Supported
• Communication Interfaces: Serial and Ethernet
• Communication Protocols: IEC 61850 Edition 1 & 2, Modbus, DNP3 and IEC 60870-5-103
• Ethernet Redundancy: PRP, HSR and RSTP
• Cybersecurity: Supported
• Integration: SCADA and digital substation compatible

Features

• Numerical relay combining current differential and distance protection.
• High-speed protection for overhead lines and underground cables.
• Integrated five-zone subcycle distance protection.
• Fast and selective detection of internal transmission line faults.
• Directional earth fault and overcurrent backup protection.
• Auto-reclose and check synchronism functions improve system availability.
• Designed for breaker-and-a-half and dual circuit breaker substations.
• IEC 61850 communication enables seamless digital substation integration.
• Event and disturbance recording simplify fault analysis and maintenance.
• Supports direct fibre optic and multiplexed communication channels.

Applications

• Transmission line protection
• Overhead transmission lines
• Underground cable protection
• High-voltage substations
• Extra-high-voltage transmission systems
• Ultra-high-voltage transmission networks
• Breaker-and-a-half substations
• Dual circuit breaker feeder applications
• Utility power networks
  * Digital substations

Schneider Electric Easergy MiCOM P544 Numerical Current Differential Protection Relay combines high-speed differential protection, integrated distance protection and advanced communication capabilities, making it an ideal choice for complex transmission systems where dependable protection, flexible configuration and rapid fault clearance are required.
