ABB REJ513 Overcurrent Protection Relay

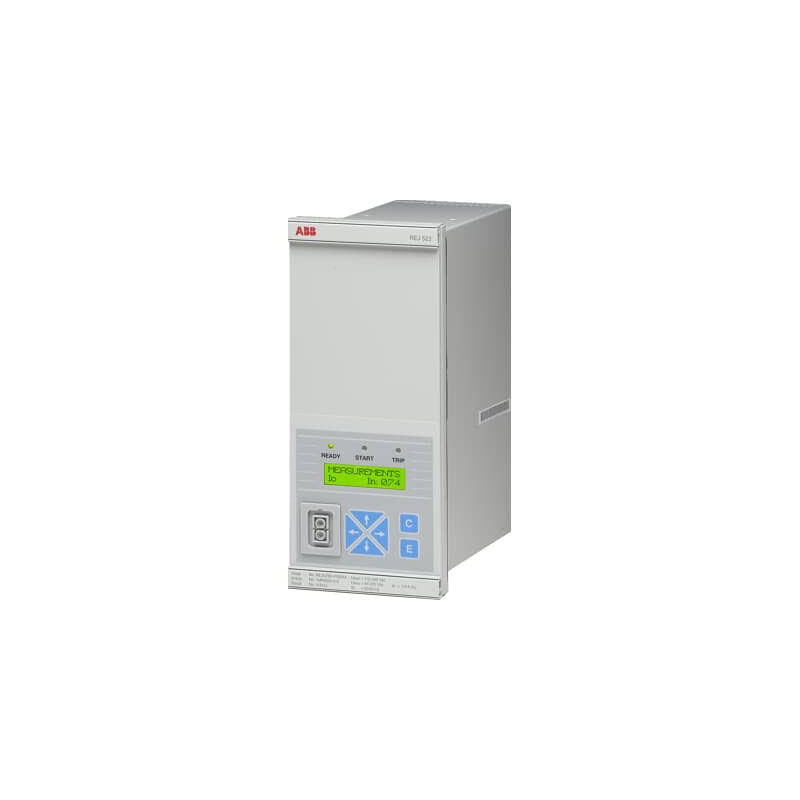

ABB REJ513 Overcurrent Protection Relay Supplier and Exporter in India
ABB REJ513 Legacy Spare and Replacement Enquiries
ABB REJ513 is a numerical overcurrent relay used for short-circuit and overcurrent protection of medium-voltage feeders and busbars. For price and availability, send the complete ABB order code, relay nameplate, quantity and destination country.
Description
ARP IMPEX supplies and exports ABB REJ513 overcurrent protection relays for medium-voltage switchgear, substations and industrial power-distribution systems.
REJ513 is a dedicated three-phase overcurrent relay. It continuously measures the phase currents through conventional current transformers and operates when the current exceeds the selected protection settings. The relay can trip the circuit breaker, provide alarm signals and record fault information when an overcurrent or short-circuit condition is detected.
The relay has two protection stages. The low-set overcurrent stage can operate with definite-time or IDMT characteristics, while the high-set stage can be set for instantaneous or definite-time operation. ABB also notes that the relay can be used for two-stage load-shedding applications when the high-set stage is adjusted within the lower part of its setting range.
REJ513 is mainly associated with feeder and busbar protection, but ABB also documents its use wherever single-, two- or three-phase overcurrent protection is required.
For ABB REJ513 price, legacy spare availability or replacement enquiries, send us the complete part number and a clear photograph of the existing relay nameplate.
Technical Specifications
- Brand: ABB
- Model: REJ513
- Product type: Overcurrent protection relay
- Product status: Legacy / not active since 2009
- Main application: Feeder and busbar overcurrent protection
- Measurement: Three-phase current
- Rated current: 1 A / 5 A
- Rated frequency: 50 / 60 Hz selectable
- Low-set overcurrent stage: Available
- Low-set timing: Definite-time or IDMT
- High-set overcurrent stage: Available
- High-set timing: Instantaneous or definite-time
- Circuit-breaker failure protection: Included
- Disturbance recorder: Included
- Current inputs: Three
- Binary input: Galvanically isolated
- Communication: Optical PC interface
- Self-supervision: Continuous hardware and software monitoring
The complete REJ513 order code should be checked before sourcing an existing relay because the hardware and auxiliary supply arrangement are identified in the product code.
Features
- Three-phase overcurrent protection
- Short-circuit protection
- Low-set overcurrent stage
- High-set overcurrent stage
- IDMT operation on the low-set stage
- Instantaneous high-set operation
- Circuit-breaker failure protection
- Disturbance recording
- Fault and event information
- Configurable trip and signalling outputs
- Optical communication for settings and data
- Non-volatile setting memory
- Continuous internal self-supervision
REJ513 is mainly useful where a dedicated overcurrent relay is required rather than a large multifunction feeder-protection device.
Applications
ABB REJ513 can be used for:
- Medium-voltage feeder protection
- Incoming feeder overcurrent protection
- Outgoing feeder protection
- Busbar protection
- Short-circuit protection
- Industrial power-distribution systems
- Utility substations
- Cable feeder protection
- Backup overcurrent protection
- Two-stage load shedding
- Switchgear protection panels
- Single-phase overcurrent applications
- Two-phase overcurrent applications
- Three-phase overcurrent applications
ABB specifically identifies REJ513 for basic protection of busbars and feeders in utility substations and industrial power-distribution systems.
ABB REJ513 Protection Stages
REJ513 has two main overcurrent stages.
Low-Set Overcurrent Stage
The low-set stage is used for normal overcurrent protection and can operate with either:
- Definite-time characteristic
- Inverse definite minimum time (IDMT) characteristic
High-Set Overcurrent Stage
The high-set stage is used for higher fault currents and can operate with:
- Instantaneous characteristic
- Definite-time characteristic
This two-stage arrangement allows the relay to provide both normal feeder overcurrent protection and faster operation for heavier short-circuit faults.
ABB REJ513 Part Number Identification
ABB documentation shows REJ513 order numbers in formats such as:
REJ513A 402-BAA
The complete code helps identify the actual hardware and supply arrangement of the installed relay.
For an ABB REJ513 replacement enquiry, send the full code exactly as shown on the relay marking strip or nameplate.
Related ABB REJ Protection Relays
The same older numerical relay range includes related ABB protection relays such as:
- ABB REJ511 – Earth-fault protection relay
- ABB REJ513 – Overcurrent protection relay
- ABB REJ515
- ABB REJ521
- ABB REJ523
- ABB REJ525
REJ513 itself is a specific overcurrent relay rather than a product family with multiple C1/C2-style versions.
ABB REJ513 Legacy Spare Availability
ABB REJ513 is no longer an active product. ARP IMPEX can assist with:
- ABB REJ513 part-code checking
- Existing relay identification
- Legacy spare availability
- Failed REJ513 replacement enquiries
- Single-unit requirements
- Multiple-quantity enquiries
- ABB technical documentation
- Export packing
- International shipping
For an ABB REJ513 requirement, please send:
- Complete ABB REJ513 order code
- Clear relay nameplate photograph
- Quantity
- Destination country
- Required delivery date
Why Buy ABB REJ513 from ARP IMPEX?
ARP IMPEX supplies ABB protection relays for utilities, industrial plants, EPC contractors, panel builders, maintenance companies and electrical traders.
We can assist with:
- REJ513 part-number identification
- Legacy relay availability
- Existing-unit matching
- Single-piece and bulk quotations
- Export packing
- International shipment
Request a Quote for ABB REJ513
For ABB REJ513 price and availability, send:
- Complete REJ513 part/order number
- Clear relay nameplate photograph
- Quantity required
- Destination country
- Required delivery date
If the part code is not readable, send clear photographs of the relay front and nameplate.
Send your ABB REJ513 part code, quantity and destination country to ARP IMPEX for availability, price and export quotation.
