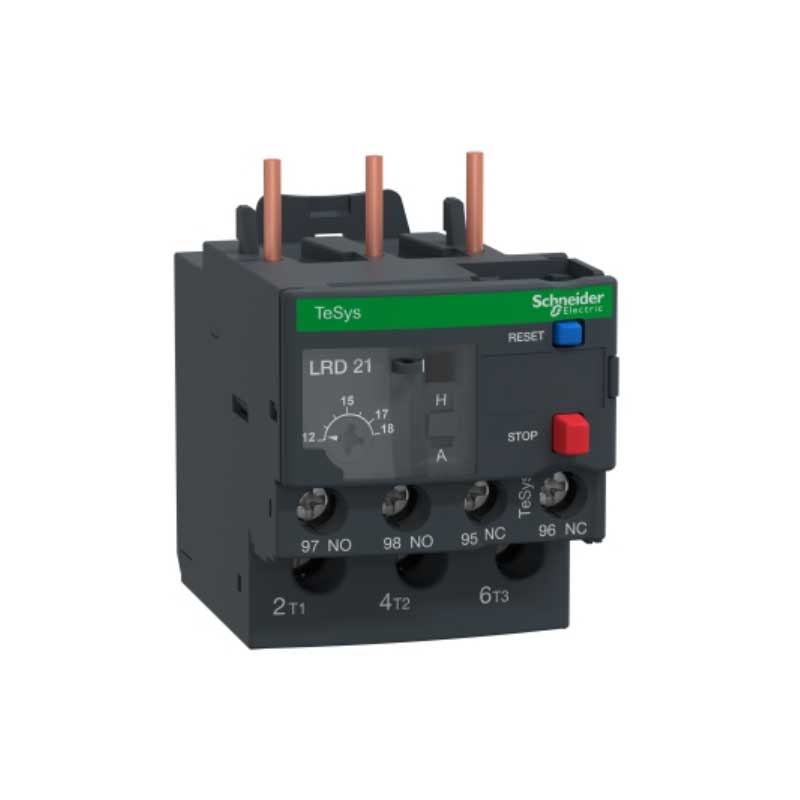

Schneider TeSys LRD K Series Thermal Overload Relays

Schneider TeSys LRD K Series Thermal Overload Relays Suppliers, Exporters in India

Schneider TeSys LRD K Series Thermal Overload Relays are compact motor protection relays designed to safeguard three-phase AC motors against overload, phase failure, and excessive current conditions. Built for use with Schneider TeSys K contactors, the LRD K Series offers reliable motor protection in applications where panel space is limited and compact motor starters are required.

The relays use thermal overload technology to monitor motor current and disconnect the circuit when overload conditions persist beyond the permitted limit. An adjustable current setting allows the relay to be matched to the motor’s full-load current, ensuring dependable protection without unnecessary tripping.

Designed for easy installation and maintenance, the TeSys LRD K Series features front-mounted adjustment controls, manual or automatic reset selection, and a built-in trip indication. Its compact construction makes it suitable for OEM machinery, control panels, and industrial equipment where reliable motor protection is essential.

Specifications

• Product Name: Schneider TeSys LRD K Series Thermal Overload Relays
• Product Family: TeSys
• Relay Type: Thermal Overload Relay
• Series: LRD K
• Application: Three-Phase AC Motor Protection
• Protection Functions: Overload Protection, Phase Failure Detection and Load Imbalance Protection
• Current Setting: Adjustable (model dependent)
• Trip Class: Class 10A
• Reset Mode: Manual or Automatic
• Auxiliary Contacts: 1 NO + 1 NC (model dependent)
• Trip Indication: Mechanical Trip Indicator
• Connection: Screw Terminal Connection
• Mounting: Direct Mounting with TeSys K Contactors
• Standards: IEC, UL, CSA, CE and RoHS compliant (model dependent)

Features

• Compact thermal overload relay for motor protection
• Designed for TeSys K contactors
• Adjustable motor current setting
• Reliable overload protection
• Detects phase failure and load imbalance
• Class 10A tripping characteristic
• Manual or automatic reset selection
• Front-mounted current adjustment dial
• Mechanical trip indication
• Integrated auxiliary contacts for signalling
• Quick installation and easy maintenance
• Suitable for compact motor starter assemblies

Applications

• Motor control panels
• Compact motor starters
• Industrial automation systems
• Pumps
• Compressors
• Fans and blowers
• Conveyor systems
• Packaging machinery
• Textile machinery
• HVAC equipment
• Water and wastewater treatment plants
• OEM machinery
• Manufacturing and process industries
