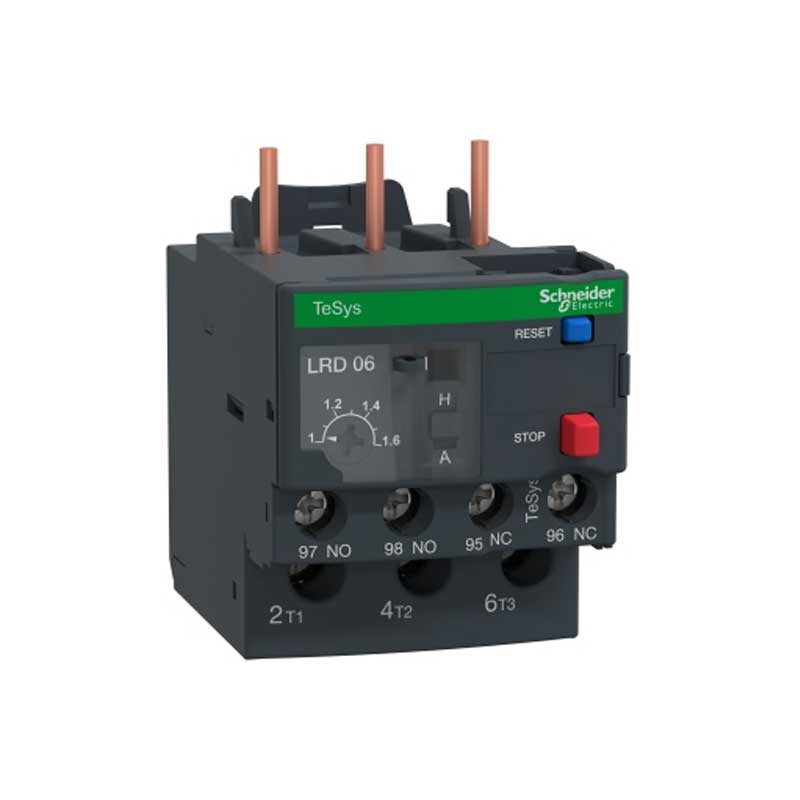

Schneider TeSys Deca Thermal Overload Relays

Schneider TeSys Deca Thermal Overload Relays Suppliers, Exporters in India

Schneider TeSys Deca Thermal Overload Relays protect three-phase motors against overload, phase failure and current imbalance. The range covers motor currents from 0.1 to 150 A and motor ratings from 0.06 to 75 kW, depending on the selected relay and operating voltage. TeSys Deca overload relays were formerly sold under the TeSys LRD name, so both names are still commonly used in enquiries and replacement requirements.

The relay is normally mounted directly below a matching TeSys Deca contactor to form a compact motor starter. It can also be installed separately with a terminal block when the panel layout requires a different arrangement. The current setting is adjusted according to the motor full-load current, and the relay trips the contactor control circuit when an overload continues beyond the permitted time.

Manual and automatic reset options allow the relay to suit different machine operating requirements. Test, stop and reset controls are available on the front, while the transparent sealable cover helps prevent accidental changes to the current setting. Schneider offers Class 10A and Class 20 versions for standard and longer motor starting duties.

TeSys Deca thermal overload relays work with contactors and suitable circuit breakers or fuses. The overload relay handles motor overload and phase-loss protection; a separate short-circuit protection device is still required in the motor circuit.

Specifications

• Product Name: Schneider TeSys Deca Thermal Overload Relays
• Former Range Name: TeSys LRD
• Device Type: Thermal motor overload relay
• Current Adjustment Range: 0.1 to 150 A
• Motor Power Range: 0.06 to 75 kW
• Main Protection: Motor overload, phase failure and load imbalance
• Reset Selection: Manual or automatic
• Trip Classes: Class 10A and Class 20, depending on reference
• Rated Operational Voltage: Up to 690 V AC on applicable models
• Auxiliary Contacts: 1 NO + 1 NC on standard references
• Mounting: Direct mounting below TeSys Deca contactors or separate mounting with an accessory terminal block
• Connection Options: Screw clamp, spring terminal and EverLink terminal arrangements, depending on the model
• Front Controls: Current adjustment dial, test, stop and reset functions
• Remote Reset: Available through selected accessories
• Setting Protection: Transparent sealable cover
• Product References: LRD, LRD3 and related TeSys Deca overload relay references

The current range, terminal arrangement, trip class and compatible contactor must be checked against the complete Schneider part number before ordering.

Features

• Adjustable current setting for matching the motor nameplate current
• Manual or automatic reset selection
• Protection against prolonged motor overload
• Phase-failure and current-imbalance detection
• Class 10A versions for normal starting applications
• Class 20 versions for motors with longer starting times
• Direct connection with compatible TeSys Deca contactors
• Separate panel mounting through an optional terminal block
• Test and stop controls on the front
• Visible trip indication
• Sealable flap over the adjustment controls
• Remote reset accessory options
• Screw clamp, spring and EverLink connection choices
• Compact arrangement for motor starter and control panels

Applications

• Motor control centres
• Direct-on-line motor starters
• Star-delta starter panels
• Pumps and pumping systems
• Compressors
• Fans and blowers
• Conveyors
• Machine tools
• Packaging machinery
• HVAC equipment
• Water and wastewater plants
• Food-processing machinery
• Material-handling systems
• Cement and steel plants
• Chemical and process plants
• Mining equipment
• Existing TeSys LRD replacement requirements

Schneider TeSys Deca Overload Relay Supplier and Exporter

We supply and export Schneider TeSys Deca thermal overload relays for motor starters, industrial panels, OEM machinery, maintenance requirements and project supply.
