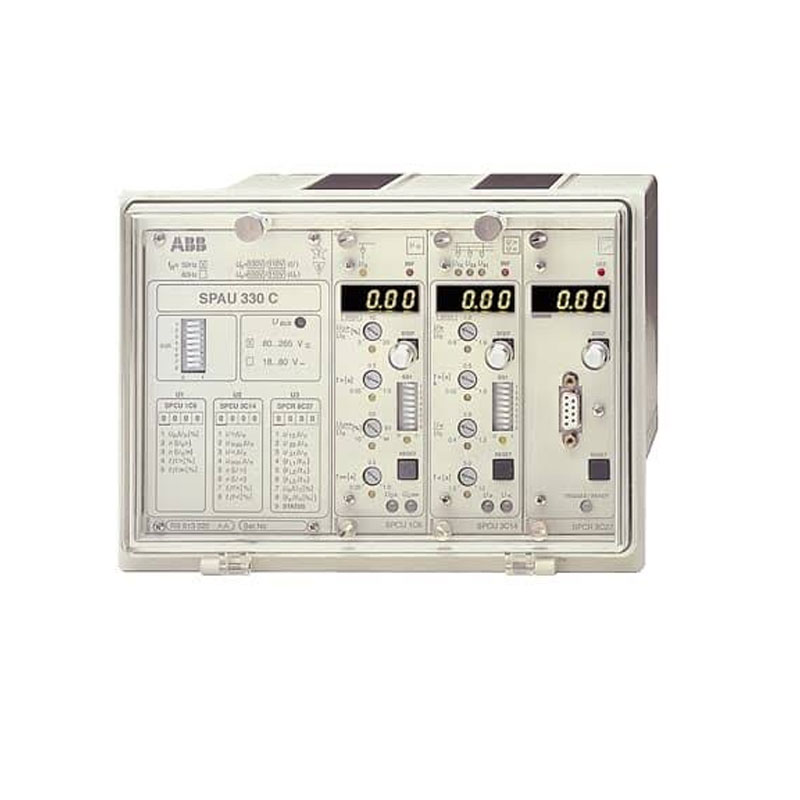

ABB SPAU 330 C Overvoltage, Undervoltage and Residual Voltage Relay

ABB SPAU 330 C Overvoltage, Undervoltage and Residual Voltage Relay Supplier and Exporter in India

ABB SPAU 330 C Replacement – REX615 Retrofit

ABB SPAU 330 C is a legacy SPACOM voltage relay. ABB lists the product as not active since 2009, so most current requirements are for replacement of an installed relay, matching spares, plant shutdown requirements or modernisation of older protection panels.

ABB officially includes SPAU 330 C in its SPACOM-to-REX615 Relay Retrofit Program. The ABB retrofit package uses a REX615 relay with a retrofit connector kit and is intended to reduce major rewiring during replacement.

For an ABB SPAU 330 C replacement or REX615 retrofit enquiry, please share:

• Complete SPAU 330 C order code
• Exact SPAU 330 C variant
• Clear photograph of the existing relay nameplate
• 100 V or 110 V rated voltage
• 50 Hz or 60 Hz
• Auxiliary supply voltage
• Existing relay settings, if available
• Required quantity
• Destination country

ARP IMPEX handles enquiries for ABB SPAU 330 C replacement relays, legacy SPACOM spares and SPAU 330 C to REX615 retrofit requirements from India.

Description

ARP IMPEX supplies and exports ABB SPAU 330 C voltage relays for existing substations, medium-voltage switchgear, industrial distribution systems and replacement requirements.

SPAU 330 C is an older ABB SPACOM relay used for overvoltage, undervoltage and residual voltage supervision. Its main application is monitoring substation busbar phase-to-phase voltage together with residual voltage in the distribution network.

The relay can also be used where voltage protection or residual voltage supervision is required for:

• Motors
• Transformers
• Generators
• Capacitor banks
• Distribution busbars
• Industrial power systems

ABB also offers the SPAU 330 C with an optional digital disturbance recorder, which makes it different from the simpler SPAU 320 C family. The recorder can be used to review fault events and network operating quantities.

If you are looking for an ABB SPAU 330 C supplier in India, SPAU 330 C price, SPAU 330 C replacement relay, legacy ABB SPACOM relay or SPAU 330 C to REX615 retrofit, send the complete relay code or existing nameplate for checking.

Request a Quote for ABB SPAU 330 C

For pricing and availability, please share:

• Complete ABB SPAU 330 C order code
• Exact variant
• Required quantity
• Destination country
• Required delivery schedule

For an existing relay replacement, also send a clear photograph of the nameplate.

If the complete code is not available, please mention:

• 100 V or 110 V rated voltage
• 50 Hz or 60 Hz
• Auxiliary supply voltage
• Installed relay modules, if known
• Original SPAU 330 C or REX615 retrofit requirement

Why Buy ABB SPAU 330 C from ARP IMPEX?

• Support for legacy ABB SPACOM relay enquiries
• Part-code and nameplate checking
• Identification of SPAU 330 C variants
• Matching spare and replacement enquiries
• Quotations for single units and multiple quantities
• Support for discontinued ABB relay requirements
• Assistance with SPAU 330 C to REX615 retrofit enquiries
• Technical datasheets with quotation
• Export packing and international shipping assistance
• Supply support for utilities, EPC contractors and industrial maintenance buyers

ABB SPAU 330 C Models and Variants

SPAU 330 C is a product family with different module combinations, rather than only one fixed hardware arrangement.

ABB documentation lists the following variants:

ABB SPAU 330 C

The fully equipped SPAU 330 C includes:

• SPCU 1C6 residual overvoltage module
• SPCU 3C14 three-phase overvoltage and undervoltage module
• SPCR 8C27 disturbance recorder module

This is the complete version with voltage protection, residual voltage supervision and disturbance recording.

ABB SPAU 330 C1

SPAU 330 C1 includes:

• SPCU 1C6 residual overvoltage module
• SPCU 3C14 overvoltage and undervoltage module

It does not include the disturbance recorder module.

ABB SPAU 330 C2

SPAU 330 C2 includes:

• SPCU 1C6 residual overvoltage module
• SPCR 8C27 disturbance recorder

This version is relevant where residual voltage supervision and disturbance recording are required without the three-phase voltage module.

ABB SPAU 330 C3

SPAU 330 C3 includes:

• SPCU 1C6 residual overvoltage module

This is the residual voltage-only version within the SPAU 330 C family.

ABB SPAU 330 C4

SPAU 330 C4 includes:

• SPCU 3C14 overvoltage and undervoltage module
• SPCR 8C27 disturbance recorder

It is used where three-phase voltage supervision and disturbance recording are required without the residual voltage module.

ABB SPAU 330 C5

SPAU 330 C5 includes:

• SPCU 3C14 overvoltage and undervoltage module

This is the simpler three-phase voltage protection version without residual voltage supervision or disturbance recording.

For an exact replacement, always check the C, C1, C2, C3, C4 or C5 designation before ordering.

Technical Specifications

• Brand: ABB
• Series: SPACOM / SPAU
• Product family: SPAU 330 C
• Product type: Overvoltage, undervoltage and residual voltage relay
• Product status: Legacy / not active since 2009
• Available variants: SPAU 330 C, C1, C2, C3, C4 and C5
• Main application: Busbar voltage and residual voltage supervision
• Voltage inputs: 100 V or 110 V
• Rated frequency: 50 Hz or 60 Hz depending on order
• Residual voltage module: SPCU 1C6
• Overvoltage / undervoltage module: SPCU 3C14
• Disturbance recorder module: SPCR 8C27 on applicable versions
• Residual overvoltage stages: U0> and U0>>
• Overvoltage stage: U>
• Undervoltage stage: U<
• Overvoltage setting range: 0.8–1.6 × Un
• Undervoltage setting range: 0.4–1.2 × Un
• Residual overvoltage low-set range: 2–100% of Un
• Residual overvoltage high-set range: 2–80% of Un
• Overvoltage operation: Definite-time or inverse-time
• Undervoltage operation: Definite-time
• External blocking input: Available
• Output relays: Six for tripping, control and signalling
• Communication: SPA fibre-optic serial bus
• Communication speed: Selectable up to 9600 baud
• Wide auxiliary supply: 80–265 V AC/DC
• Low DC auxiliary supply: 18–80 V DC
• Panel-mounted protection: IP54
• Approximate weight: 5.5 kg
• Operating temperature: Approximately –10°C to +55°C

The exact module combination, frequency and auxiliary supply depend on the complete order code.

Features

Depending on the selected variant, available features include:

• Three-phase overvoltage protection
• Three-phase undervoltage protection
• Residual overvoltage supervision
• Busbar voltage monitoring
• Earth-fault backup using residual voltage
• Definite-time voltage protection
• Inverse-time overvoltage protection
• External blocking input
• Trip and signalling outputs
• Voltage measurement
• Recorded fault values
• Digital front indication
• Optional disturbance recording
• SPA serial communication
• Fibre-optic communication with substation systems
• Continuous relay self-supervision
• 100 V and 110 V input versions
• 50 Hz and 60 Hz versions
• Different auxiliary supply options

ABB specifically highlights busbar voltage supervision, general voltage protection, optional disturbance recording, serial communication and continuous self-supervision as key SPAU 330 C functions.

Disturbance Recorder Option

The fully equipped SPAU 330 C and selected variants include the SPCR 8C27 disturbance recorder module.

The recorder can capture analogue and binary information during a fault or abnormal network condition. ABB documentation specifies up to eight analogue and eight binary channels, with recorded events available through the relay communication interface.

For most B2B buyers, the important point is simply whether the existing SPAU 330 C has the disturbance recorder fitted. This should be checked from the relay variant or module arrangement when quoting a replacement.

Applications

ABB SPAU 330 C is commonly found in:

• Substation busbar voltage supervision
• Overvoltage protection
• Undervoltage protection
• Residual overvoltage supervision
• Busbar earth-fault backup
• Medium-voltage switchgear
• Industrial distribution switchgear
• Generator voltage supervision
• Motor voltage protection
• Transformer voltage protection
• Capacitor bank protection
• Incoming feeder voltage supervision
• Fault event recording
• Distribution substations
• Industrial substations
• Existing ABB SPACOM installations
• Legacy protection panels
• Plant shutdown spare requirements
• Existing SPAU 330 C replacement
• REX615 retrofit projects

ABB specifically identifies transformer, generator, motor and capacitor bank protection in addition to its main busbar voltage supervision application.

ABB SPAU 330 C Replacement

SPAU 330 C has been inactive since 2009, so replacement is now one of the main commercial requirements for this family.

Buyers may require:

• Original SPAU 330 C spare
• SPAU 330 C1 replacement
• SPAU 330 C2 replacement
• SPAU 330 C3 replacement
• SPAU 330 C4 replacement
• SPAU 330 C5 replacement
• Matching relay for old switchgear
• Emergency shutdown spare
• Modern replacement for an existing SPACOM installation

For an exact replacement, send:

• Complete ABB order code
• Exact variant
• Clear nameplate photograph
• Required quantity
• Destination country

The module arrangement is important because SPAU 330 C, C1, C2, C3, C4 and C5 do not all have the same functions.

ABB SPAU 330 C Replacement with REX615

ABB officially includes SPAU 330 C in its current SPACOM-to-REX615 retrofit program.

The standard retrofit package includes:

• ABB REX615 relay
• Retrofit connector kit
• Documentation

ABB also provides configuration and installation support options for retrofit projects. The program is intended to reduce major new wiring and shorten shutdown time when modernising supported SPACOM installations.

A SPAU 330 C to REX615 retrofit may be considered when:

• Original SPAU 330 C availability is difficult
• An existing relay has failed
• Old switchgear is being modernised
• Long-term relay support is required
• IEC 61850 communication is required
• Additional protection and monitoring functions are needed

Before finalising the retrofit, check:

• Exact SPAU 330 C variant
• Installed SPCU and SPCR modules
• 100 V or 110 V voltage inputs
• 50 Hz or 60 Hz
• Auxiliary supply
• Existing trip contacts
• Alarm contacts
• Blocking input
• Protection settings
• Disturbance recording requirement
• Existing panel wiring

For an ABB SPAU 330 C to REX615 replacement enquiry, send the existing relay nameplate and available settings.

Information Required for ABB SPAU 330 C Quotation

For most enquiries, please send:

• Complete ABB SPAU 330 C order code
• Exact variant – C, C1, C2, C3, C4 or C5
• Clear relay nameplate photograph
• Required quantity
• Destination country
• Required delivery schedule

If the complete order code is unavailable:

• Installed relay modules, if visible
• 100 V or 110 V input
• 50 Hz or 60 Hz
• Auxiliary supply voltage
• Original SPAU 330 C or REX615 retrofit requirement

ARP IMPEX accepts enquiries against an ABB order code, relay nameplate, BOQ or existing protection-panel information.

Contact us for ABB SPAU 330 C price, SPAU 330 C replacement relay, SPAU 330 C1/C2/C3/C4/C5 legacy spares, discontinued ABB SPAU 330 C availability, ABB voltage relay supplier in India or SPAU 330 C to REX615 retrofit quotation from India.
